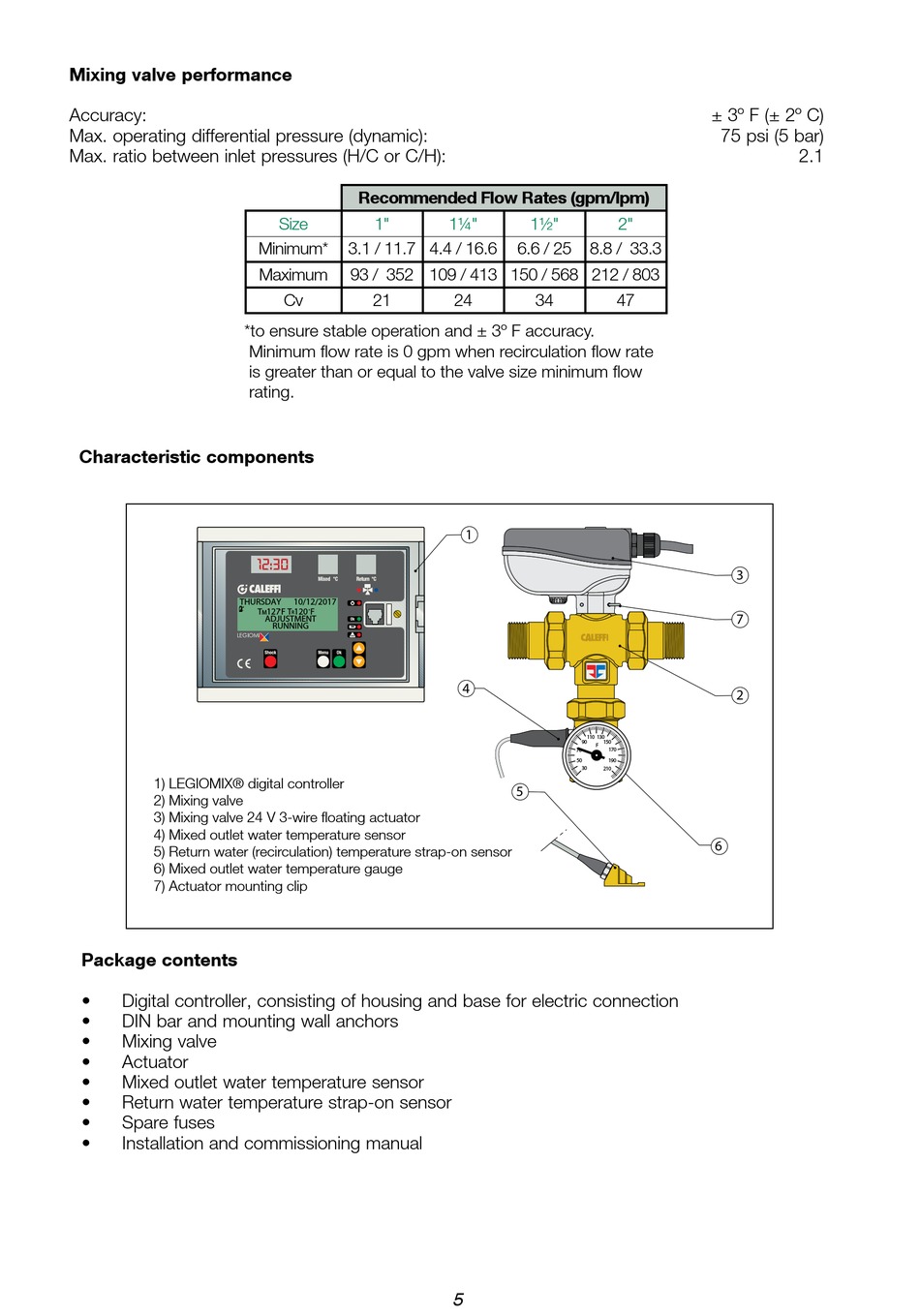

Characteristic Components; Package Contents - CALEFFI LEGIOMIX 6000 series Installation And Commissioning Manual

Mixing valve performance
Accuracy:
Max. operating differential pressure (dynamic):
Max. ratio between inlet pressures (H/C or C/H):

Characteristic components

THURSDAY
1) Legiomix digital regulator
1) LEGIOMIX® digital controller
2) Mixing valve
2) Mixing valve
3) Mixing valve 24 V 3-wire floating actuator
3) Mixing valve ac tuator
4) Mixed outlet water temperature sensor
4) Mixed water flow probe
5) Return water (recirculation) temperature strap-on sensor
5) R eturn probe (rec irc ulation)
6) Mixed outlet water temperature gauge
6) Mixed water flow temperature gauge
7) Actuator mounting clip
7) Ac tuator fixing c lip

Package contents

• Digital controller, consisting of housing and base for electric connection
• DIN bar and mounting wall anchors
• Mixing valve
• Actuator
• Mixed outlet water temperature sensor
• Return water temperature strap-on sensor
• Spare fuses
• Installation and commissioning manual
Recommended Flow Rates (gpm/lpm)
Size 1"
Minimum* 3.1 / 11.7 4.4 / 16.6
Maximum 93 / 352 109 / 413 150 / 568 212 / 803
Cv 21
*to ensure stable operation and ± 3º F accuracy.
Minimum flow rate is 0 gpm when recirculation flow rate
is greater than or equal to the valve size minimum flow
rating.
10/12/2017
+
T 127 F T 120 F
• •
- M R
ADJUSTMENT
RUNNING
1¼" 1½" 2"
6.6 / 25 8.8 / 33.3
24 34 47
1
4
40
110 130
60
20
90 150
F
170
70
80
0
50 190
°C
30 210
5
5
± 3º F (± 2º C)
75 psi (5 bar)
2.1
3
7
2
6
