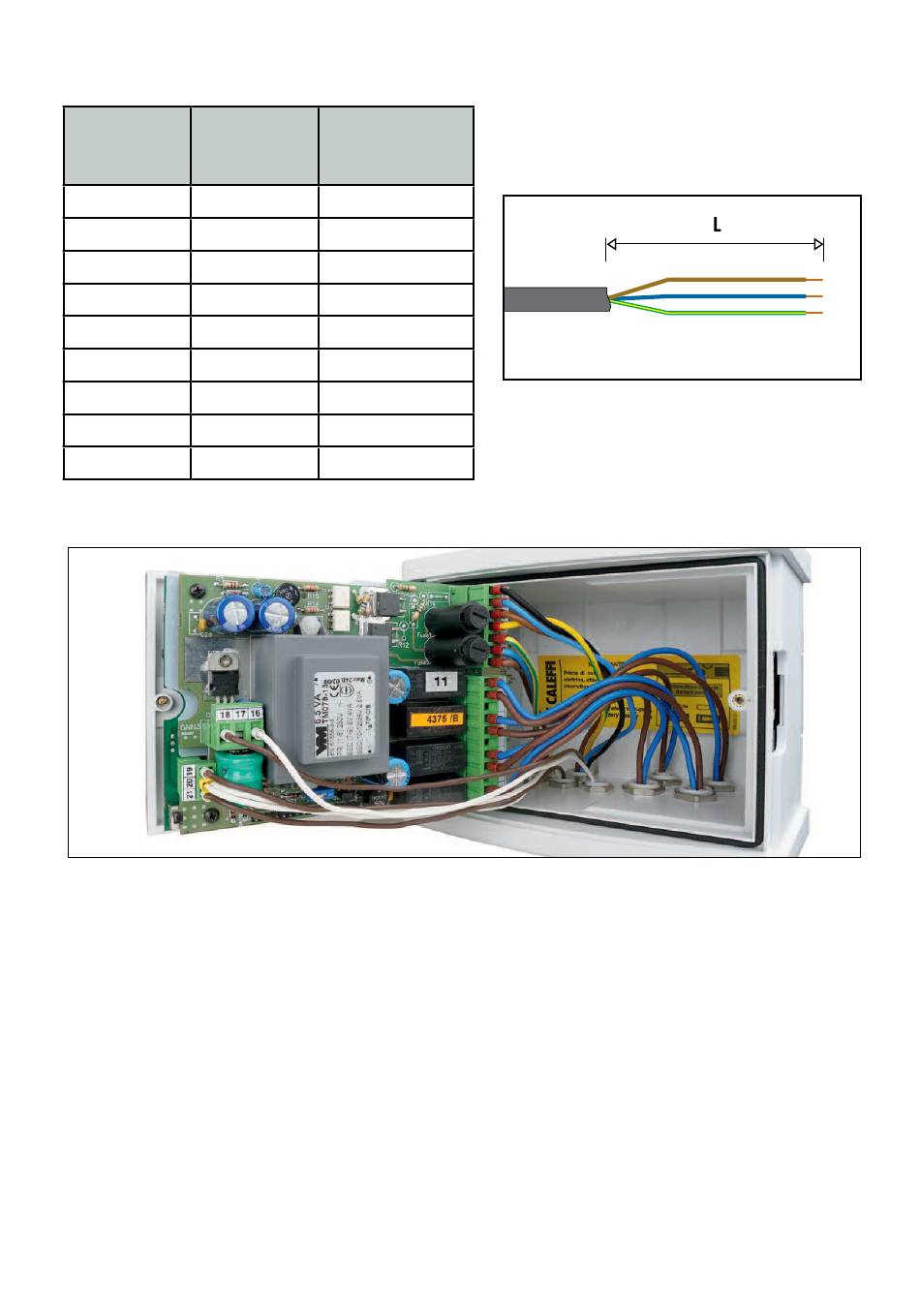

Connection cable cross-sections and lengths for circuit board wiring
Cable seal No.
Cable type
1
3 x 1
2
6 x 0.75
3
2 x 0.75
4
2 x 0.75
5
3 x 0.75
6
2 x 1.5
7
2 x 1.5
8
2 x 1.5
9
2 x 1.5
Connection layout: connections must not create thrust stresses on the circuit board
Unsheathing
(in/mm)
including stripping
(L)
5 / 130
6 / 150
8.25 / 210
8.25 / 210
8.25 / 210
6.25 / 160
6.25/ 160
7 / 180
6.25 / 160
10
