Page 1

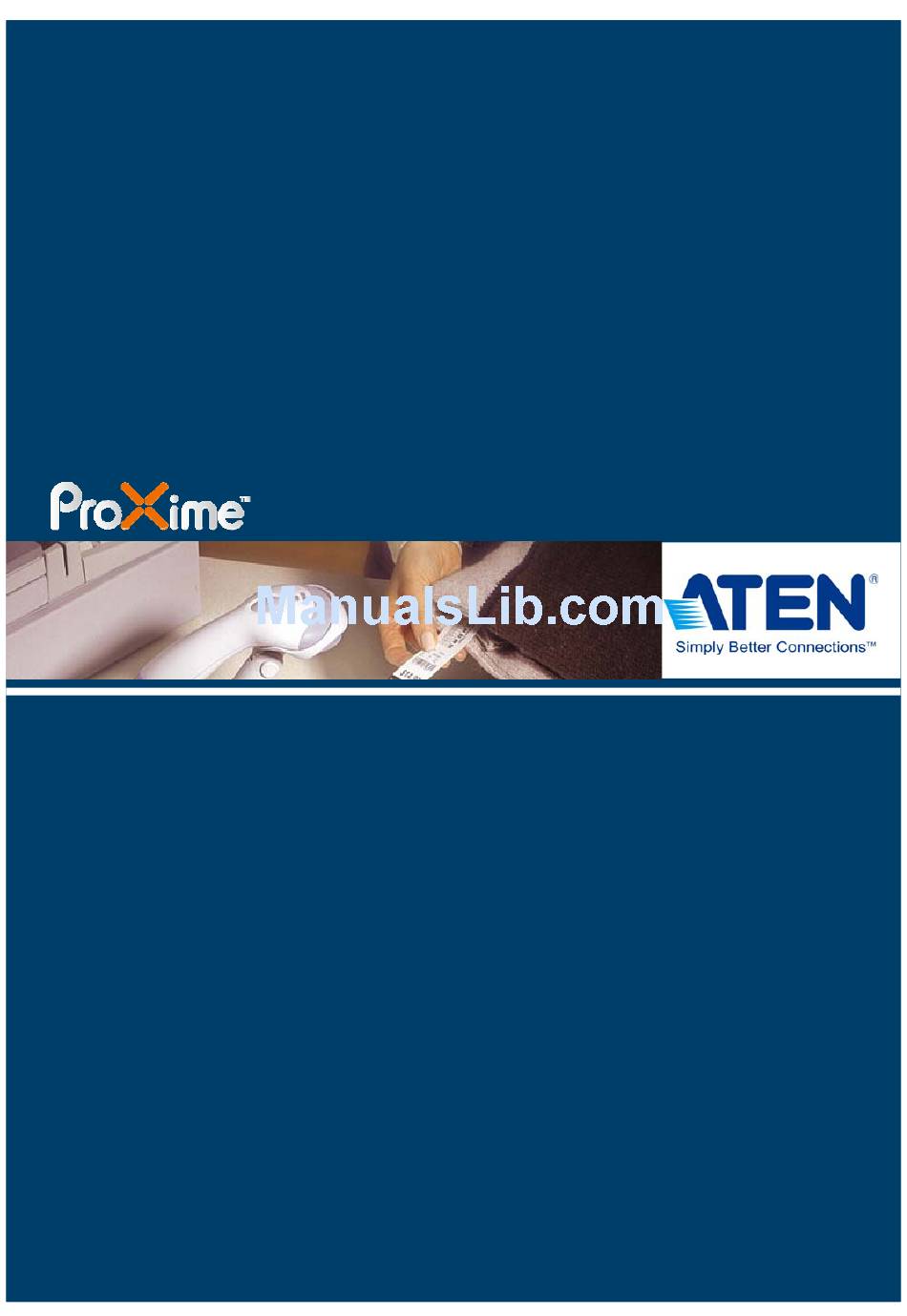

Application Guide Analog KVM Extender for Serial Applications...
Page 2
Warehouse and Distribution Facilities ATEN KVM Extenders have applications that reach far beyond the server room. Being able to extend the distance between computer and console, or centralize control of a number of computers in a different location, is useful in a wide range of environments, from internet cafes to productions lines.
Page 3
Remote Unit to adjust the picture on the remote console. In addition, the CE770 features Deskew, an automatic delay line synchronizing function (ATEN patent) that corrects RGB color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
Page 4

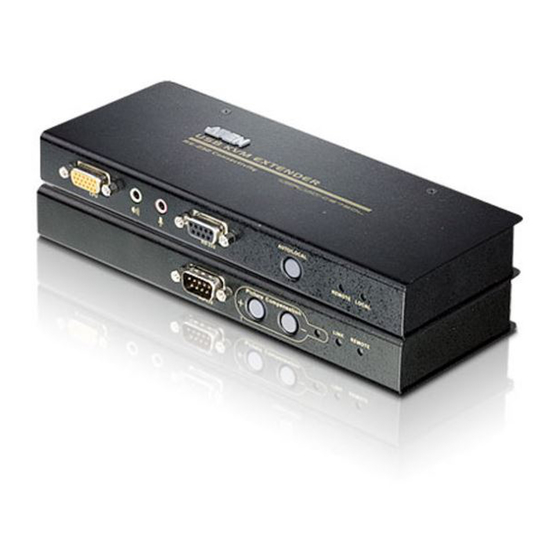

From huge warehouses and distribution facilities to smaller stock rooms in the retail environment, the RS-232 functionality of the ATEN CE750 and CE770 USB KVM Extender systems provide not only extended control of your computers but also a connection for any serial device that you need to make your distribution business or retail environment run smoothly.
Page 5
1920x1200@6oHz (150 m), 1280x1024@60Hz (200 m) 1280x1024@60Hz (300 m) Picture Quality Control Adjustable gain control Patented ATEN Deskew technology Built-in 8KV/15KV ESD protection and 2KV surge protection Supports stereo speakers and stereo microphone Dual console operation RS-232 serial port Sun/Mac keyboard support and emulation (CE770 only)
