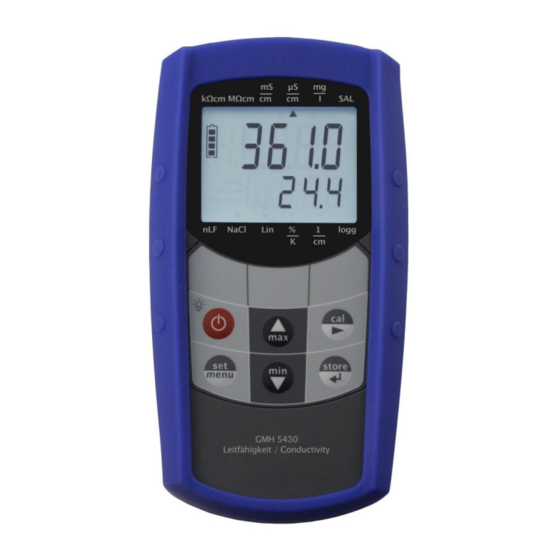

- Page 1 2.6C-10 Englisch Operating Manual Conductivity measuring device waterproof GMH 5430 Companies / Brands of the GHM www.ghm-group.de Keep for later use.
-
Page 2: Table Of Contents
RESHIPMENT AND DISPOSAL ........................16 15.1 ..............................16 ESHIPMENT 15.2 ..........................16 ISPOSAL INSTRUCTIONS SPECIFICATION ..............................17 GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de | info@greisinger.de... -
Page 3: General Note
In such a case make sure the device temperature has adjusted to the ambient temperature before trying a new start-up. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 4: Product Specification
3. Treat device and sensor carefully. Use only in accordance with above specification. (do not throw, hit against etc.). Protect plug and socket from soiling. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 5: Handling
(‘HLD’ is displayed) Set/Menu: confirm settings, return to measuring GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 6: Connections
Device attached to a belt magnetic holder Device set up on a table GMH 1300 GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 7: Start Operation
0.00 - 50.00 mS/cm 0.0 - 500.0 mS/cm If the range selection is set to „Auto Range“, the range with the best resolution is automatically selected. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 8: Resistivity Measurement
IOT or conductivity). Considering these tables, very precise salinity measurements can be performed (Therefore we recommend the 4-pole graphite measuring cells LF 400 or LF 425.). GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 9: Electrodes / Measuring Cells
), i.e. one assumes that the actual temperature dependency at the considered concentration range is approximately equal: GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 10: Configuration
0.0 - 500.0 µS/cm Example for CELL rAng 1 and InP Cond: others in chapter 6.2 …0- 1000 mS/cm Example for CELL rAng 1 and InP Cond: others in chapter 6.2 GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... - Page 11 Date: set date day.month rEAd CAL: Read calibration data: see chapter 11.2 “Calibration memory (rEAd CAL)” GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de...
-
Page 12: Universal Output
Zero point and slope correction: Displayed value = (measured value – OFFS) * (1 + SCAL / 100) Displayed value °F = (meas. value °F - 32°F - OFFS) • (1 + SCAL / 100) GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 13: Automatic Adjustment/Calibration Of Cell Constant
The device provides the following functions to help with this. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 14: Calibration Interval (C.int)
A calibration protocol is enclosed to the device ex works. This documents the precision reached by the production process. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 15: Replacing Batteries
> CAL < Either preset calibration interval has Device has to be calibrated! CAL flashing in GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 16: Reshipment And Disposal
(sufficiently stamped), if it should be disposed. We will dispose the device appropriate and environmentally sound. GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... -
Page 17: Specification
*) choice of electrode may limit the operational range, although a larger theoretical range is available from the instrument’s side. Please refer to chapter 6.7 GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de... - Page 18 H83.0.02.6C-10 Operating manual GMH 5430 page 18 of 18 _____________________________________________________ _____________________________________________________________________________ GHM GROUP – Greisinger | GHM Messtechnik GmbH Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Phone +49 9402 9383-0 | Fax +49 9402 9383-33 www.greisinger.de | info@greisinger.de...
