GREISINGER GMH 5155 Operating Manual

GREISINGER GMH 5155 Operating Manual

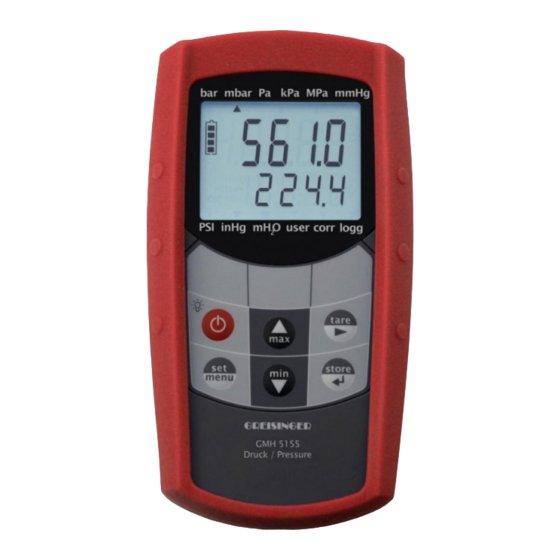

Handheld double-pressure-meter water-proof, with data logger
Hide thumbs Also See for GMH 5155:

Advertisement

Quick Links

H82.0.03.6C-10
as of version 1.0
Please carefully read these instructions before use!
Please consider the safety instructions!
Please keep for future reference!
GHM Messtechnik GmbH • Standort Greisinger
Hans-Sachs-Str. 26 • D-93128 Regenstauf
+49 (0) 9402 / 9383-0
Handheld Double-Pressure-Meter
water-proof, with data logger
GMH 5155
+49 (0) 9402 / 9383-33
Operating Manual
WEEE-Reg.-Nr. DE 93889386
info@greisinger.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMH 5155 and is the answer not in the manual?

Questions and answers

Summary of Contents for GREISINGER GMH 5155

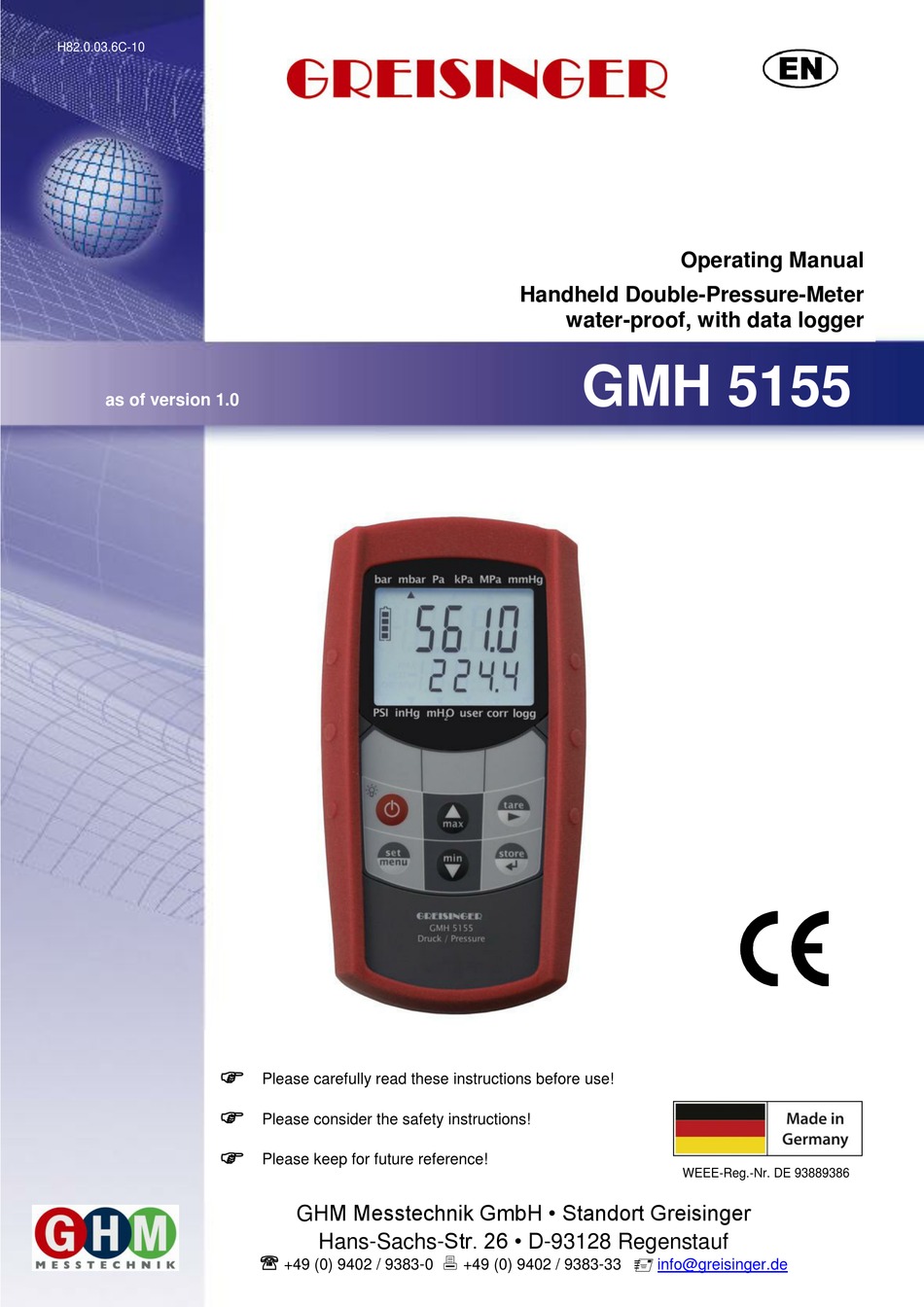

  • Page 1 Please carefully read these instructions before use!  Please consider the safety instructions!  Please keep for future reference! WEEE-Reg.-Nr. DE 93889386 GHM Messtechnik GmbH • Standort Greisinger Hans-Sachs-Str. 26 • D-93128 Regenstauf    +49 (0) 9402 / 9383-0 +49 (0) 9402 / 9383-33 info@greisinger.de...
  • Page 2: Table Of Contents

    H82.0.03.6C-10 Operating Manual GMH 5155 page 2 of 22 _____________________________________________________ _____________________________________________________________________________ Index GENERAL NOTE ..............................3 SAFETY ..................................3 ............................... 3 NTENDED ..........................3 AFETY SIGNS AND SYMBOLS .............................. 3 AFETY GUIDELINES PRODUCT SPECIFICATION ..........................4 ..............................4 COPE OF SUPPLY ......................
  • Page 3: General Note

    H82.0.03.6C-10 Operating Manual GMH 5155 page 3 of 22 _____________________________________________________ _____________________________________________________________________________ 1 General Note Read this document carefully and get used to the operation of the device before you use it. Keep this document within easy reach near the device for consulting in case of doubt.
  • Page 4: Product Specification

    _DANGER Product Specification 3.1 Scope of supply The scope of supply includes: GMH 5155 with 2 AAA batteries Operation manual Short form manual 3.2 Operation and maintenance advice 1. Battery operation: If ‘bAt’ is shown in the lower display the battery has been used up and needs to be replaced. However, the device will operate correctly for a certain time.
  • Page 5: Handling

    H82.0.03.6C-10 Operating Manual GMH 5155 page 5 of 22 _____________________________________________________ _____________________________________________________________________________ 4 Handling 4.1 Display elements Main display: measuring value sensor 1 Secondary display: measuring value sensor 2 or difference sensor 1 – sensor 2 /“CALC” Arrows for selected measuring unit...
  • Page 6: Connections

    H82.0.03.6C-10 Operating Manual GMH 5155 page 6 of 22 _____________________________________________________ _____________________________________________________________________________ 4.3 Connections Universal output: interface, supply, analog output (p.r.t. chapter 9 “Universal Input”) 7-pole bayonet connector: connection for sensor 2 7-pole bayonet connector: connection for sensor 1 4.4 Pop-up clip Handling: •...
  • Page 7: Start Operation

    H82.0.03.6C-10 Operating Manual GMH 5155 page 7 of 22 _____________________________________________________ _____________________________________________________________________________ 5 Start Operation Connect sensors, turn device on via key. After segment test the device displays some configuration: if standard measurement is selected if fast measurement is selected if peak value detection is selected After that the device is ready for measuring.
  • Page 8 H82.0.03.6C-10 Operating Manual GMH 5155 page 8 of 22 _____________________________________________________ _____________________________________________________________________________ Menu Parameter Value Description Rate: Measuring rate Slow measuring rate (4 Hz filtered, low power consumption) FASt Fast measuring rate, filtered (1000 Hz) P.dEt Peak detection: fast measuring rate, unfiltered (1000 Hz) Averaging Filter 1 …...
  • Page 9 H82.0.03.6C-10 Operating Manual GMH 5155 page 9 of 22 _____________________________________________________ _____________________________________________________________________________ Menu Parameter Value Description Set Output: Universal output adjustments Interface and analog output off SEr: Serial interface activated dAC: Analog output activated 01, 11..91 Base address for serial interface communication...
  • Page 10: Remarks To Special Features

    H82.0.03.6C-10 Operating Manual GMH 5155 page 10 of 22 _____________________________________________________ _____________________________________________________________________________ Menu Parameter Value Description Set Logger: Settings for logger function Selection of logger function CYCL Cyclic: cyclic logger Stor Store: manual recording No logger activated 0:01 .. 60:00 Cycle time in [minutes: seconds] (for cyclic logger)
  • Page 11: Different Kinds Of Measuring

    H82.0.03.6C-10 Operating Manual GMH 5155 page 11 of 22 _____________________________________________________ _____________________________________________________________________________ 7.2 Different kinds of measuring Three different kinds of pressure measuring are supported. Two of them (P.dEt and FASt) are working with high measuring frequency of more than 1000 measurings per second.
  • Page 12: Averaging Function

    H82.0.03.6C-10 Operating Manual GMH 5155 page 12 of 22 _____________________________________________________ _____________________________________________________________________________ 7.5 Averaging function The averaging function concerns the display values (LCD and interface). It is completely independent from the averaging of the logger function FASt and P.dEt! The averaging integrates the measuring values during a selectable period of time and then calculates the average display value.
  • Page 13: Calc: Pitot Measuring Of Velocity And Flow (Only For Sensor 1)

    H82.0.03.6C-10 Operating Manual GMH 5155 page 13 of 22 _____________________________________________________ _____________________________________________________________________________ 7.7 CALC: Pitot measuring of Velocity and Flow (only for sensor 1) 7.7.1 Velocity measurement in air: “CALC SPEd” The air velocity is calculated by means of the pressure difference at a Prandtl pitot tube or comparable measuring setup.
  • Page 14: Data Logger

    H82.0.03.6C-10 Operating Manual GMH 5155 page 14 of 22 _____________________________________________________ _____________________________________________________________________________ 8 Data Logger The device supports two different logger functions: Manual recording by keypress “store“ “Func-Stor”: Additional input of measuring point (L-Id) is needed “Func-CYCL”: Automatic recording at intervals of set cycle time...
  • Page 15: Automatic Recording With Selectable Cycle Time ("Func Cycl")

    H82.0.03.6C-10 Operating Manual GMH 5155 page 15 of 22 _____________________________________________________ _____________________________________________________________________________ b) Read manual recordings: Saved data sets can be viewed both with PC-software GSOFT3050 and directly on the device display. Do not change the pressure sensor if manual recording is selected and values are already stored, because otherwise invalid data may be read-out.
  • Page 16 H82.0.03.6C-10 Operating Manual GMH 5155 page 16 of 22 _____________________________________________________ _____________________________________________________________________________ At measuring kind "rAtE-Slo” a power saving function is selectable: “Lo.Po”. If activated a measurement is only done if it is also logged (i.e. no additional measurements between the saved values).
  • Page 17: Universal Output

    H82.0.03.6C-10 Operating Manual GMH 5155 page 17 of 22 _____________________________________________________ _____________________________________________________________________________ 9 Universal Output The output can be used either as serial interface (for USB 5100 interface converter) or as analog output (0-1V). If the output is not needed, it is strongly recommended to deactivate it (Out oFF) to lower power consumption.
  • Page 18: Analog Output

    H82.0.03.6C-10 Operating Manual GMH 5155 page 18 of 22 _____________________________________________________ _____________________________________________________________________________ 9.2 Analog output An analog voltage 0-1V can be tapped at the universal output connector (mode: “Out dAC”). The analog output can be easily scaled with DAC.0 and DAC.1.
  • Page 19: Alarm ("Al.")

    H82.0.03.6C-10 Operating Manual GMH 5155 page 19 of 22 _____________________________________________________ _____________________________________________________________________________ 12 Alarm (“AL.”) There are 3 possible settings: off (AL.oFF), on with buzzer (AL.on), on without buzzer (AL.no.So). Alarm is given in the following cases (if alarm active, AL.on or AL.no.So): Lower alarm boundary (AL.
  • Page 20: Error And System Messages

    H82.0.03.6C-10 Operating Manual GMH 5155 page 20 of 22 _____________________________________________________ _____________________________________________________________________________ 16 Error and System Messages Display Description What to do? No sensor connected Switch off device and connect sensor Connected sensor or device defective If 2nd sensor available, check if device is ok. Return defective device/sensor to manufacturer for repair Err.9...
  • Page 21: Specifications

    H82.0.03.6C-10 Operating Manual GMH 5155 page 21 of 22 _____________________________________________________ _____________________________________________________________________________ 18 Specifications Display range maximal -19999...19999 digit, depends on used sensor Number of channels GMSD … - K51 and MSD … sensors with connection cable MSD-K51 Suitable probes ranging from -1.999 … 2.500 mbar / 0.001 mbar to 0 … 1000 bar / 1 bar...
  • Page 22 H82.0.03.6C-10 Operating Manual GMH 5155 page 22 of 22 _____________________________________________________ _____________________________________________________________________________...
