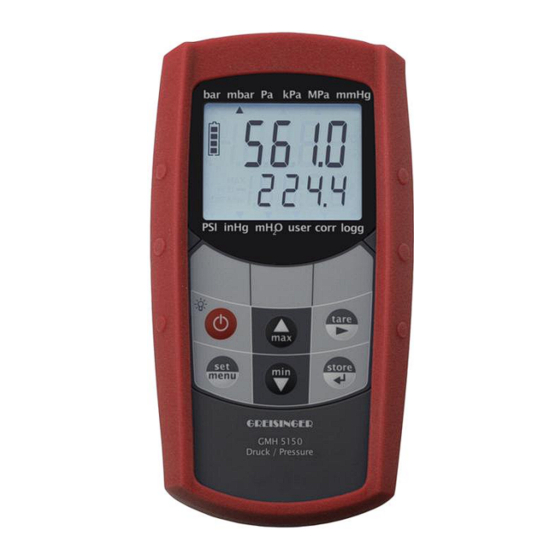

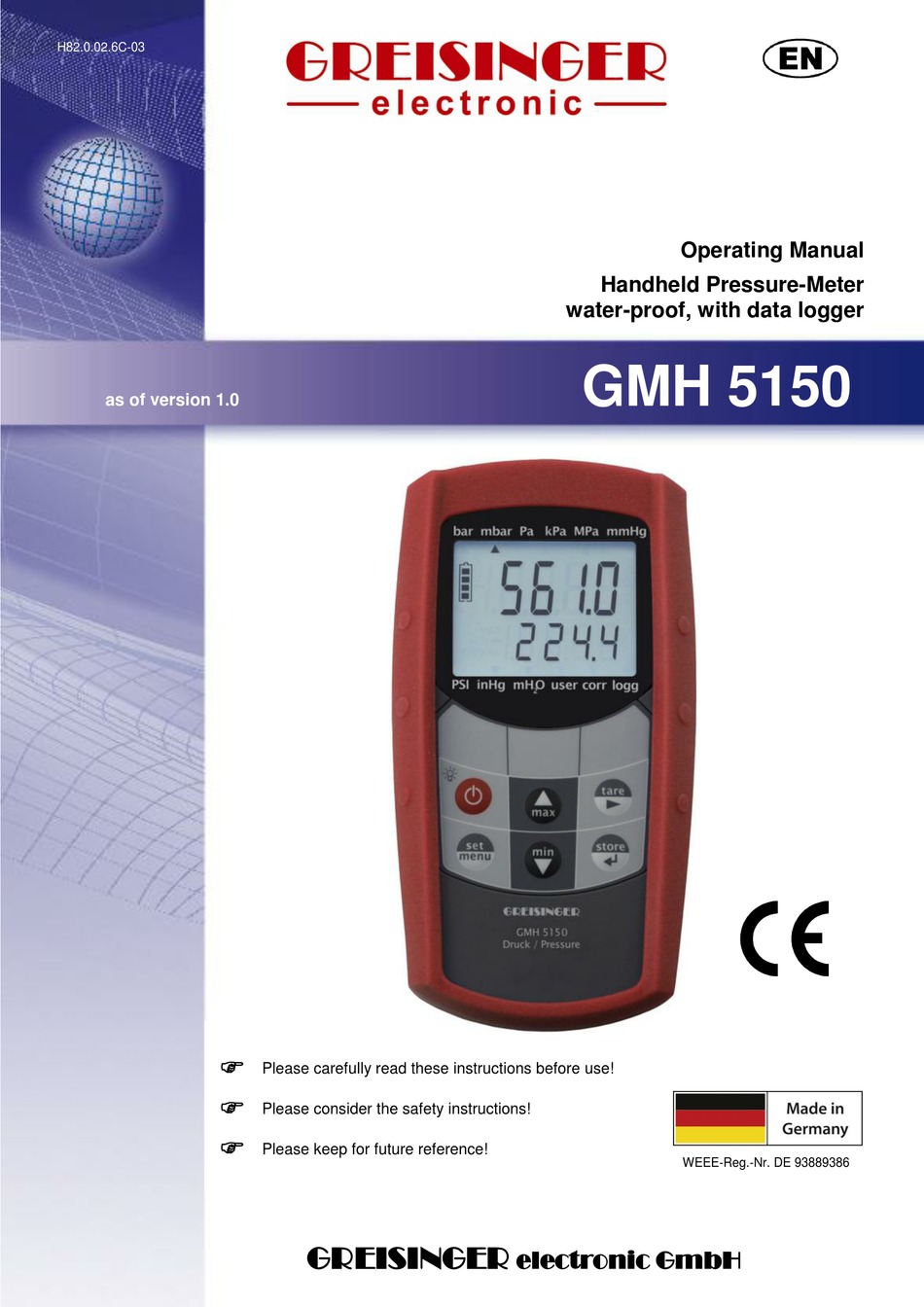

- Page 1 H82.0.02.6C-03 Operating Manual Handheld Pressure-Meter water-proof, with data logger GMH 5150 as of version 1.0 Please carefully read these instructions before use! Please consider the safety instructions! Please keep for future reference! WEEE-Reg.-Nr. DE 93889386 GREISINGER electronic GmbH...
-
Page 2: Table Of Contents
H82.0.02.6C-03 Operating Manual GMH 5150 page 2 of 20 _____________________________________________________ _____________________________________________________________________________ Index GENERAL NOTE ..............................3 SAFETY ..................................3 ............................... 3 NTENDED ..........................3 AFETY SIGNS AND SYMBOLS .............................. 3 AFETY GUIDELINES PRODUCT SPECIFICATION ..........................4 ..............................4 COPE OF SUPPLY ...................... -
Page 3: General Note
H82.0.02.6C-03 Operating Manual GMH 5150 page 3 of 20 _____________________________________________________ _____________________________________________________________________________ 1 General Note Read this document carefully and get used to the operation of the device before you use it. Keep this document within easy reach near the device for consulting in case of doubt. -
Page 4: Product Specification
_DANGER Product Specification 3.1 Scope of supply The scope of supply includes: GMH 5150 with 2 AAA batteries Operation manual Short form manual 3.2 Operation and maintenance advice 1. Battery operation: If „bAt‟ is shown in the lower display the battery has been used up and needs to be replaced. However, the device will operate correctly for a certain time. -
Page 5: Handling
H82.0.02.6C-03 Operating Manual GMH 5150 page 5 of 20 _____________________________________________________ _____________________________________________________________________________ 4 Handling 4.1 Display elements Main display: measuring value Secondary display: display of minimum / maximum / memorized measuring value / “CALC” Arrows for selected measuring unit Rating of battery status... -
Page 6: Start Operation
H82.0.02.6C-03 Operating Manual GMH 5150 page 6 of 20 _____________________________________________________ _____________________________________________________________________________ 5 Start Operation Connect sensors, turn device on via key. After segment test the device displays some configuration: if standard measurement is selected if fast measurement is selected if peak value detection is selected After that the device is ready for measuring. - Page 7 H82.0.02.6C-03 Operating Manual GMH 5150 page 7 of 20 _____________________________________________________ _____________________________________________________________________________ Averaging Filter 1 … 120 Averaging period in seconds Averaging function is deactivated Auto Power-Off: Select power-off delay 1 ... 120 Power-off delay in minutes. Device will be automatically switched off as soon as this time has elapsed if no key is pressed/no interface communication takes place.
- Page 8 H82.0.02.6C-03 Operating Manual GMH 5150 page 8 of 20 _____________________________________________________ _____________________________________________________________________________ Menu Parameter Value Description Set Output: Universal output adjustments Interface and analog output off SEr: Serial interface activated dAC: Analog output activated 01, 11..91 Base address for serial interface communication (only at Out = SEr) sensor dep.
-
Page 9: Remarks To Special Features
H82.0.02.6C-03 Operating Manual GMH 5150 page 9 of 20 _____________________________________________________ _____________________________________________________________________________ 7 Remarks to Special Features 7.1 Different Pressure Units Depending on the connected sensors different units can be selected via menu (Unit). The measuring range of the sensors may restrict the choice! -
Page 10: Sea-Level Correction For Absolute Pressure Sensors
H82.0.02.6C-03 Operating Manual GMH 5150 page 10 of 20 _____________________________________________________ _____________________________________________________________________________ 7.4 Sea-level correction for absolute pressure sensors The device displays the absolute pressure. This is not necessarily the same like the values given by weather stations! The weather stations are displaying the pressure at sea level. Usually the sensor is placed above... -
Page 11: Calc: Pitot Measuring Of Velocity And Flow
H82.0.02.6C-03 Operating Manual GMH 5150 page 11 of 20 _____________________________________________________ _____________________________________________________________________________ t.int- setting: If there are set high values the displayed values can be easily misinterpreted, because the displayed value responds very slowly. ) – P(T The displayed value is calculated: P(T -t.int) / T.int... -
Page 12: Data Logger
H82.0.02.6C-03 Operating Manual GMH 5150 page 12 of 20 _____________________________________________________ _____________________________________________________________________________ 8 Data Logger The device supports two different logger functions: Manual recording by keypress “store“ “Func-Stor”: Additional input of measuring point (L-Id) is needed “Func-CYCL”: Automatic recording at intervals of set cycle time The logger stores 3 measuring values per data set: -“CALC off”*): measuring or average (depends on function), min-peak and max-peak... -
Page 13: Automatic Recording With Selectable Cycle Time ("Func Cycl")
H82.0.02.6C-03 Operating Manual GMH 5150 page 13 of 20 _____________________________________________________ _____________________________________________________________________________ b) Read manual recordings: Saved data sets can be viewed both with PC-software GSOFT3050 and directly on the device display. Do not change the pressure sensor if manual recording is selected and values are already stored, because otherwise invalid data may be read-out. - Page 14 H82.0.02.6C-03 Operating Manual GMH 5150 page 14 of 20 _____________________________________________________ _____________________________________________________________________________ At measuring kind "rAtE-Slo” a power saving function is selectable: “Lo.Po”. If activated a measurement is only done if it is also logged (i.e. no additional measurements between the saved values).
-
Page 15: Universal Output
H82.0.02.6C-03 Operating Manual GMH 5150 page 15 of 20 _____________________________________________________ _____________________________________________________________________________ 9 Universal Output The output can be used either as serial interface (for USB 5100 interface converter) or as analog output (0-1V). If the output is not needed, it is strongly recommended to deactivate it (Out oFF) to lower power consumption. -
Page 16: Analog Output
H82.0.02.6C-03 Operating Manual GMH 5150 page 16 of 20 _____________________________________________________ _____________________________________________________________________________ 9.2 Analog output An analog voltage 0-1V can be tapped at the universal output socket (mode: “Out dAC”). The analog output can be easily scaled with DAC.0 and DAC.1. -
Page 17: Alarm ("Al.")
H82.0.02.6C-03 Operating Manual GMH 5150 page 17 of 20 _____________________________________________________ _____________________________________________________________________________ 12 Alarm (“AL.”) There are 3 possible settings: off (AL.oFF), on with buzzer (AL.on), on without buzzer (AL.no.So). Alarm is given in the following cases (if alarm active, AL.on or AL.no.So): Lower alarm boundary (AL. -
Page 18: Error And System Messages
H82.0.02.6C-03 Operating Manual GMH 5150 page 18 of 20 _____________________________________________________ _____________________________________________________________________________ 16 Error and System Messages Display Description What to do? No sensor connected Switch off device and connect sensor Connected sensor or device defective If 2nd sensor available, check if device is ok. Return defective device/sensor to manufacturer for repair Err.9... -
Page 19: Specifications
H82.0.02.6C-03 Operating Manual GMH 5150 page 19 of 20 _____________________________________________________ _____________________________________________________________________________ 18 Specifications Display range maximal -19999...19999 digit, depends on used sensor Number of channels GMSD … - K51 and MSD … sensors with connection cable MSD-K51 Suitable probes ranging from -1.999 … 2,500 mbar / 0.001 mbar to 0 … 1000 bar / 1 bar... - Page 20 H82.0.02.6C-03 Operating Manual GMH 5150 page 20 of 20 _____________________________________________________ _____________________________________________________________________________...
