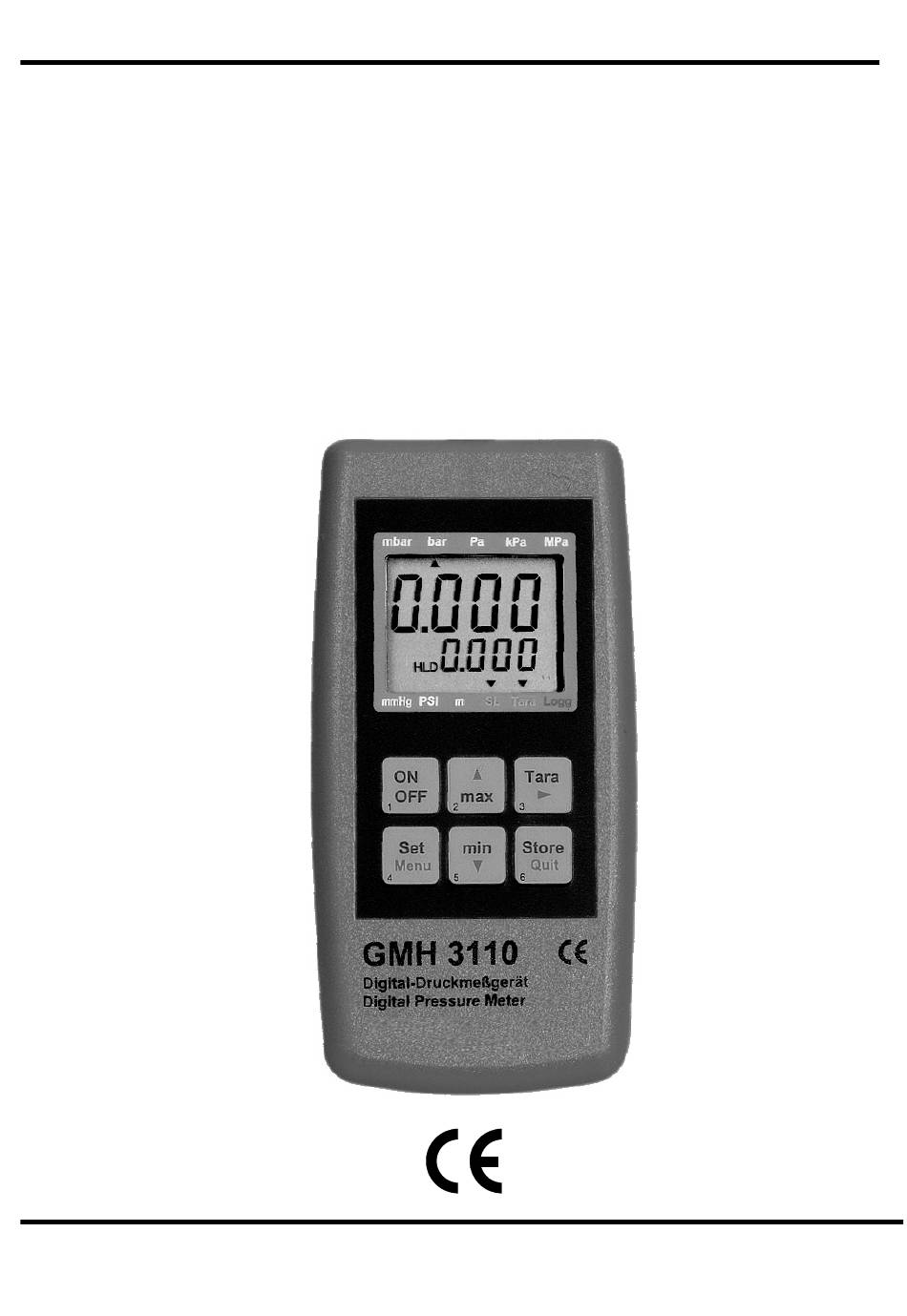

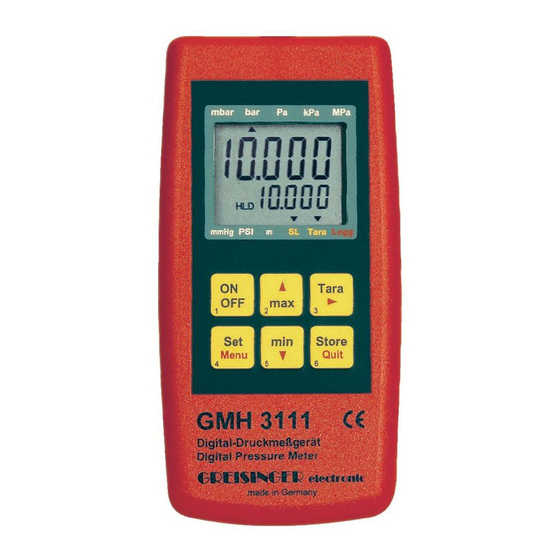

- Page 1 H31.0.11.6C-11 User’s Manual Handheld Digital Pressure-Meter GMH3110 Version 5.1 for GMSD – Pressure Sensors...
- Page 2 H31.0.11.6C-11 User’s Manual GMH3110 page 2 CONTENTS GENERAL..............................2 ........................2 AFETY EQUIREMENTS ....................2 PERATION AINTAINANCE DVICE ............................. 3 ONNECTIONS .............................. 3 ISPLAY ..........................3 ASIC PERATION CONFIGURATION ........................... 4 ....................4 HOICE ISPLAY ............. 4 EVEL ORRECTION BSOLUTE...
- Page 3 H31.0.11.6C-11 User’s Manual GMH3110 page 3 • Mains Operation With Power Supply Warning: When using a power supply please note that operating voltage has to be 10.5 to 12 V DC. Do not apply overvoltage!! Cheap 12V-power supplies often have excessive no-load voltage.
- Page 4 H31.0.11.6C-11 User’s Manual GMH3110 page 4 2 Configuration To change device settings, press Menu (key 4) for 2 seconds. This will call the configuration menu. Pressing key Menu jumps between the parameters. The parameters can be changed with 5 (key 2) or 6 (key 5).
- Page 5 H31.0.11.6C-11 User’s Manual GMH3110 page 5 5 Pressure Connection To The Sensors The device is designed to be connected to the sensors of the GMSD...-series without a new calibration being necessary. Therefore a great variety of replaceable sensors of e.g. –1.999...2.500 mbar relative up to 0...400.0 bar absolute pressure can be connected to the device (p.r.t.
- Page 6 H31.0.11.6C-11 User’s Manual GMH3110 page 6 7 Error And System Messages Display Meaning What to do? Low battery power, device will only continue Replace battery operation for a short period of time Battery empty Replace battery Mains operation without battery: wrong voltage...
- Page 7 H31.0.11.6C-11 User’s Manual GMH3110 page 7 8 Specification Measuring ranges: Display range: max. -1999...9999 digit, depending on connected sensor Resolution: depending on connected sensor Pressure units: mbar, bar, kPa, MPa, mmHg, PSI mH O (only for devices with ‚m‘ printed below display), selectable depending on connected sensor Accuracy: (typ.)
- Page 8 H31.0.11.6C-11 User’s Manual GMH3110 page 8 Sensors (03/2005) Type Measuring Range Resolution Overload Description GMSD 2.5 MR -1.999 ... +2.500 mbar rel. 0.001 mbar 250 mbar rel. GMSD 25 MR -19.99 ... +25.00 mbar rel. 0.01 mbar 350 mbar rel.
