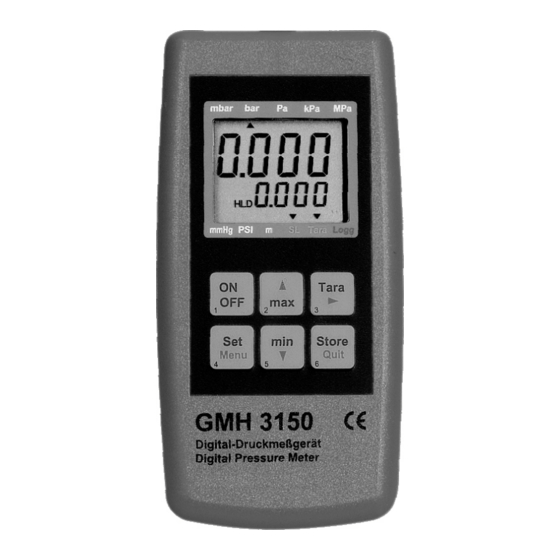

Handheld digital pressure-meter for gmsd pressure sensors
Hide thumbs
Table of Contents

Advertisement

Quick Links

H31.0.31.6C-06
User's Manual
Handheld Digital Pressure-Meter
GMH3150
Version 5.1
for GMSD – Pressure Sensors

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMH3150 and is the answer not in the manual?

Questions and answers

Related Manuals for GREISINGER GMH3150

Summary of Contents for GREISINGER GMH3150

  • Page 1 H31.0.31.6C-06 User’s Manual Handheld Digital Pressure-Meter GMH3150 Version 5.1 for GMSD – Pressure Sensors...

  • Page 2: Table Of Contents

    H31.0.31.6C-06 User’s Manual GMH3150 page 2 CONTENTS GENERAL..............................2 ........................2 AFETY EQUIREMENTS ....................3 PERATION AINTAINANCE DVICE ............................. 3 ONNECTIONS .............................. 3 ISPLAY ..........................3 ASIC PERATION CONFIGURATION ........................... 4 : „ , -P. , -FAS “ ............5...

  • Page 3: Operation And Maintainance Advice

    H31.0.31.6C-06 User’s Manual GMH3150 page 3 1.2 Operation And Maintenance Advice • Battery Operation and ´bAt´ are shown in the secondary display the battery has been used up and needs to be replaced. The device will, however, operate correctly for a certain amount of time. If ´bAt´ is shown in the upper display the voltage is too low to operate the device;...

  • Page 4: Configuration

    H31.0.31.6C-06 User’s Manual GMH3150 page 4 Zero-Point Adjustment: (for rel. pressure sensors only) If there is no pressure applied to the pressure ports the device will display 0. If there is a permanent deviation (and device is operated under steady conditions), a permanent zero point adjustment can be carried out.

  • Page 5: Different Kinds Of Measuring: „Rate-Slo, -P.det, -Fast

    H31.0.31.6C-06 User’s Manual GMH3150 page 5 2.1 Different Kinds Of Measuring: „rAtE-Slo, -P.dEt, -FASt“ Three different kinds of measuring pressure are supported. Two of them are working with high measuring frequency of more than 100 measurings per second. If one of them was chosen in the configuration (see above), this will be displayed in the secondary display: „P.dEt“...

  • Page 6: Alarm

    H31.0.31.6C-06 User’s Manual GMH3150 page 6 2.6 Alarm There are three possible settings: Alarm off (AL. oFF), on with horn sound (AL. on), on without sound (AL. no.So). Following conditions will display an alarm, when the function is activated (on or no.So): Value is below lower (AL.

  • Page 7: Operation Of Logger

    H31.0.31.6C-06 User’s Manual GMH3150 page 7 4 Operation Of Logger The device supports two different logger functions: each time when „store“ (key 6) is pressed a measurement will be recorded. „Func-Stor“: measurements will automatically be recorded each interval, which was set in the logger „Func-CYCL“:...

  • Page 8: Func-Cycl": Automatic Recording With Selectable Logger-Cycle-Time

    H31.0.31.6C-06 User’s Manual GMH3150 page 8 4.2 „Func-CYCL“: Automatic Recording With Selectable Logger-Cycle-Time The Logger-Cycle-Time is settable (p.r.t. Configuration). For example „CYCL“ = 60: A measuring is recorded after each 60 seconds. When the slow measurement "rAtE-Slo" is chosen, additionally a low power function is available: „Lo.Po“.

  • Page 9: The Serial Interface

    H31.0.31.6C-06 User’s Manual GMH3150 page 9 5 The Serial Interface By means of the serial interface and a suitable electrically isolated interface adapter (GRS3100, GRS3105 or USB3100) the device can be connected to a computer for data transfer. With the GRS3105 up to 5 devices of the GMH3xxx- series can be connected to one interface (see also manual of GRS3100, GRS3105 or USB3100) To avoid transmission errors, there are several security checks implemented e.g.

  • Page 10: Pressure Connection To The Sensors

    H31.0.31.6C-06 User’s Manual GMH3150 page 10 6 Pressure Connection To The Sensors The device is designed to be connected to the sensors of the GMSD...-series without a new calibration being necessary. Therefore a great variety of replaceable sensors of e.g. –1.999...2.500 mbar relative up to 0...400.0 bar absolute pressure can be connected to the device (p.r.t.

  • Page 11: Calibration Services

    H31.0.31.6C-06 User’s Manual GMH3150 page 11 8 Calibration Services Calibration certificates – DKD-certificates – other certificates: If device should be certificated for its accuracy, it is the best solution to return it with the referring sensors to the manufacturer. Only the manufacturer is capable to do efficient recalibration if necessary to get results of highest accuracy!

  • Page 12: Sensors (03/2005)

    H31.0.31.6C-06 User’s Manual GMH3150 page 12 Sensors (03/2005) Type Measuring Range Resolution Overload Description GMSD 2.5 MR -1.999 ... +2.500 mbar rel. 0.001 mbar 250 mbar rel. GMSD 25 MR -19.99 ... +25.00 mbar rel. 0.01 mbar 350 mbar rel.
