Reference Manual
Ez-Electric Screen
Spectrum/Vmax(Plus) Series
Ver. 1 .5
Users Guide
*Also available in Black casing
www.elitescreens.com
/ eliteinfo@elitescreens.com
Advertisement
Related Manuals for Elite Screens Electric100H
Summary of Contents for Elite Screens Electric100H

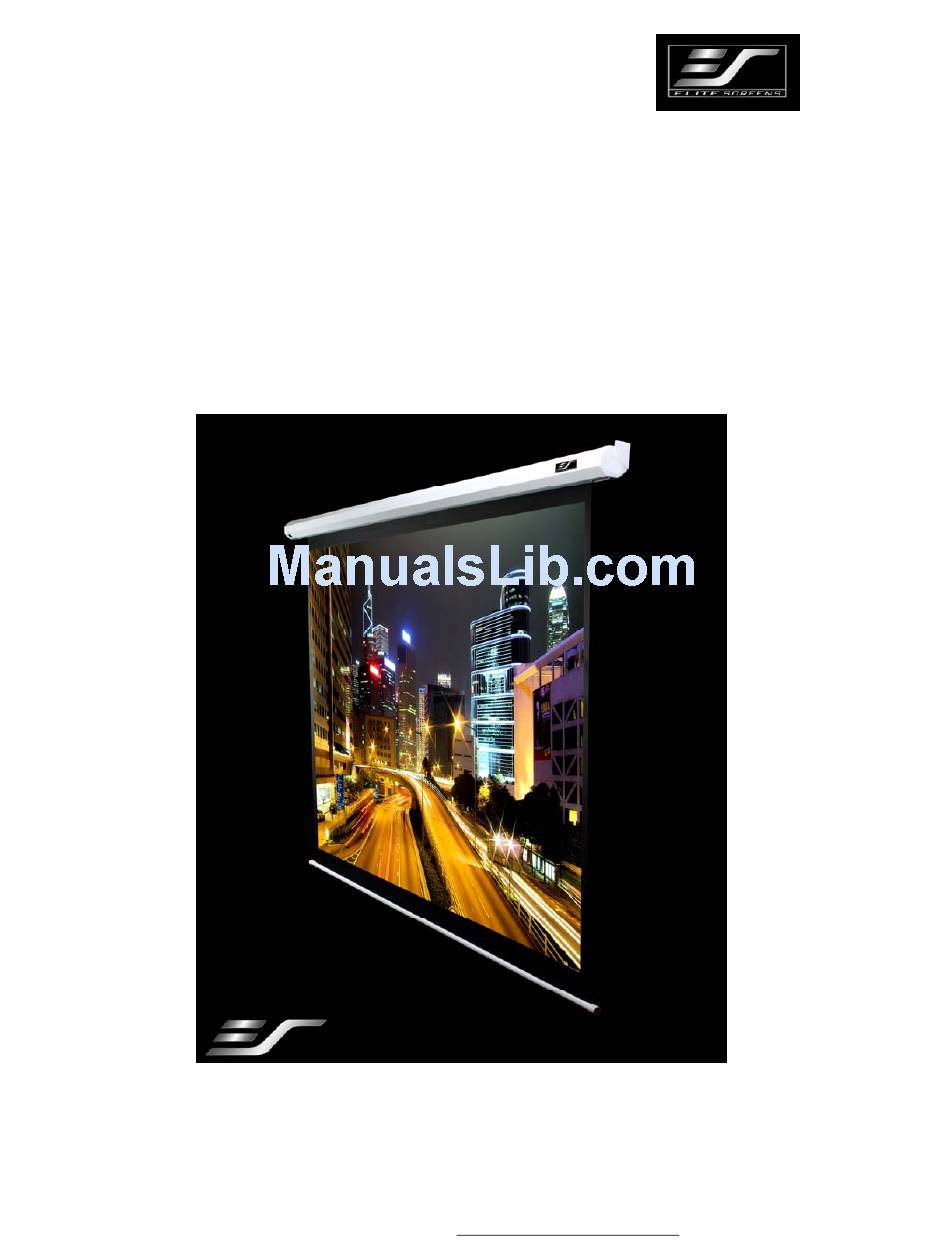

- Page 1 Ez-Electric Screen Spectrum/Vmax(Plus) Series Ver. 1 .5 Users Guide *Also available in Black casing www.elitescreens.com / eliteinfo@elitescreens.com...
- Page 2 Important safety and warning precautions 1. Be sure to read this manual before use and follow the procedures specified: ☆ Please retain this manual for future reference. ☆ To avoid any damage, do not use any accessories not recommended by the manufacturer. ☆...
- Page 3 Warning Individual modifications to this product are prohibited and will void the user’s warranty. Please contact the Service Department for any questions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 Accessory for Spectrum and VMAX2 Battery RF(for VMAX2 only) www.elitescreens.com Bubble level Wall box (Opt ional for Spectrum) Note: Contact your reseller for optional accessories or visit shop.elitescreens.com for accessory purchase. / eliteinfo@elitescreens.com E ye receiver (Optional for Spectrum) Please always point to the eye receiver when using the IR remote Red 12V Green 0V...
-
Page 5: Important Safety Instructions
To avoid suffering an electric shock, do not attempt to disassemble this appliance yourself. In the event of technical trouble, please contact Elite Screens service dept. for help with repairing your screen. Please disconnect the power supply when screen is not in use for a long period of time as should be done with any other electric household appliance. - Page 6 1. Select the location for your screen within a reasonable angle of projection for your home projector and access to a good power source. 2. For the best support of your screen, it is ideal to secure your screen into the studs of your house's internal framework.
- Page 7 1. Using a tape measure, mark the keyholes that are located at the back of the screen's case end cap. 2. After marking the area and predrilled hole, insert the screw and leave about 1/8” of an inch from the wall to mount the screen.
- Page 8 Wood/Dry Wall installation: Use “B” wood screws provided for installation on wood studs on wall. Or use “E” hollow wall anchors provided in conjunction with the wood screws for drywall installation as shown on Fig. 1 Masonry/Cement wall installation: Use “D” bolts provided for installing your screen on a cement wall as shown o n Fig.
- Page 9 12-V Trigger The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger. This accessory is optional for Spectrum Screens and can be purchased separately. Connection pins in side of case Wall-mounted Receiver (Extension Sensor) D i a g r a m Wa l l B o x w it h I R R e mo t e C o n t r o l 1.
- Page 10 FAQ’S 1. Q: Why does my screen no longer function? A: There are a few possible things you could check: A.) Make sure your wall plug has power and that the screen is properly plugged in. B.) Please check the fuse to y our screen. (Call Tech support for location of fuse) C.) If screen works well with the line switch but not with the remote control, make sure the remote control has good batteries in it.
- Page 11 DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new* unit to the customer by ground service (based on stock availability). Should a problem be reported after the 7-day grace period, the item must be shipped to u for warranty repair.
- Page 12 Two ways to register your warranty with Elite Screens A. On Line (Faster and Easier) www.elitescreens.co m/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _ Address: _ City/State/Zip ____ *Email Address: ____ *Phone:...
