3. Operation

The Xzone function requires två IQnomic Plus modules
for wiring temperature sensors as well as an air heater for
postheating and an air cooler. The wiring of temperature
sensors to the IQnomic Plus requires the presence of both
modules in the system even if there is only one air heater
or one air cooler in the zone.
Connect a cable for 0-10 V DC control of valve actua-
tor - heating and cables for control of the pump for the
reheater (if any), supply air temperature and freeze pro-
tection monitor sensors to the IQnomic Plus module
A (function selector switch = A). If an electric air heater
is used, connect the overheating protection alarm signal
cable to the input of the freeze protection monitor sensor.
Connect a cable for 0-10 V DC control of the valve actua-
tor cooling or air cooler for cooling in 1 - 3 steps or cool-
ing pump control and extract air/room air sensors to the
IQnomic Plus module B (function selector switch = B).
The Xzone for heating and Xzone for cooling must each
be activated separately. The type of control signal for the
heating and cooling function respectively must be selected
individually.
Temperature control for the Xzone operates completely
separated from the temperature control of the main zone.
If an air heater for postheating with freeze protection
monitor is selected for the extra zone, the heat retaining
function operates completely separately. The heat retain-
ing and alarm limit values preset at service level are appli-
cable to both the extra zone and the main zone.
2 www.swegon.com
The cooling min. flow function applies to the flow from
the air handling unit, not the flow for each zone.
When the total flow reaches below the preset value, cool-
ing will be blocked in both zones.
If intermittent night-time operation is activated, the con-
ditions in the main zone are controlled according to the
settings of the function. When the air handling uit starts
up, the extra zone is controlled according to ordinary tem-
perature control settings.

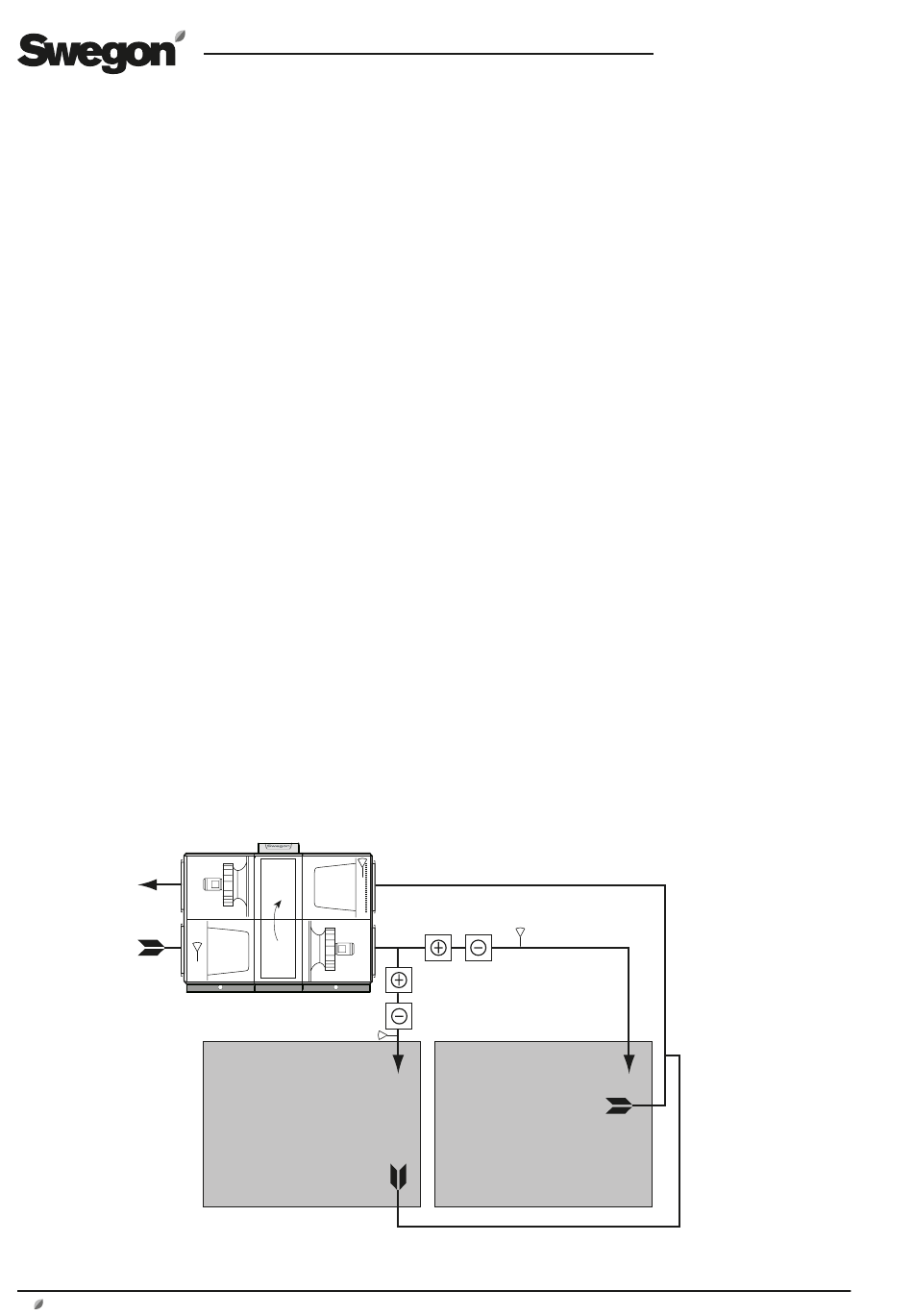

Connect the cable of the air heater for main zone post-
heating to the ordinary heating output on the GOLD
air handling unit control unit. Connect the main zone's
cooling control cables to the ordinary cooling outputs on
the GOLD air handling unit control unit. Connect the air
heater of the extra zone to the screw connection terminals
of the IQnomic Plus module. The heating output cannot
have modular connection and if standard coils for GOLD
with modular connection are used for the extra zone, the
cable will have to be cut.
Important!
The function with output power reduction (for an electric
air heater), activated in the event of low airflows for pro-
tecting the heater elements from overheating, is blocked
when the Xzone is selected. Since the control system
cannot measure the flow in the different zones, the func-
tion is blocked both for the extra zone and the main zone.
