6.
Performance checks

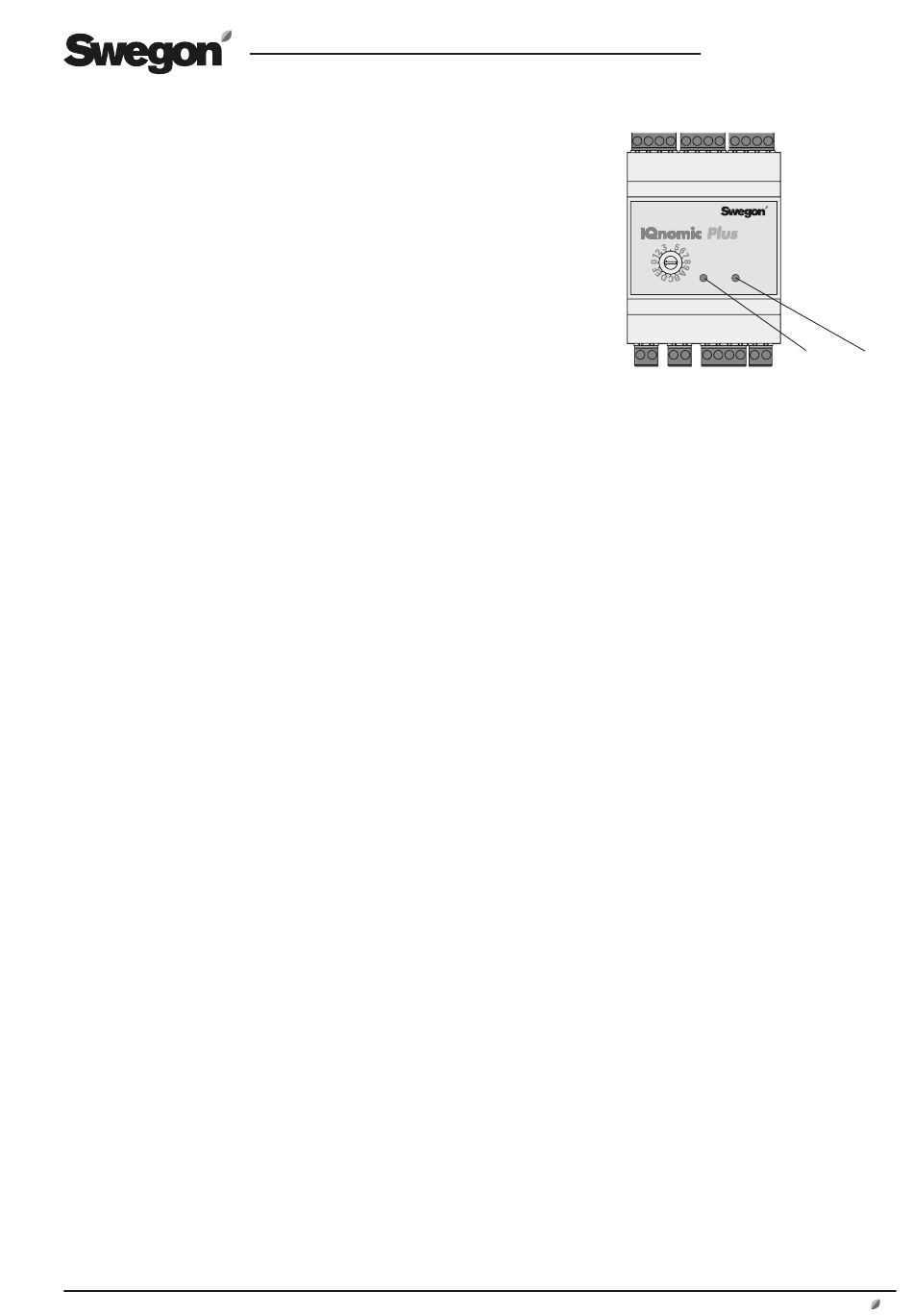

IQnomic Plus module:
Light-emitting diode L2 lit with a steady glow indicates
that power is being supplied from the GOLD unit's control
unit.
A flashing light-emitting diode L1 indicates correct com-
munication with the GOLD unit's control unit.
Temperature sensor:
Current temperatures can be read under INSTALLATION
– READINGS – IQNOMIC PLUS – XZONE HEATING/XZONE
COOLING. If the temperature readings are resonable,
wiring has been carried out correctly.
If the functions are activated but the accessories have not
been connected correctly, an alarm will be initiated. See
the Operation and Maintenance Instructions for the GOLD
unit for a description of each alarm.
We reserve the right to alter specifications.
GB.XZONE.080630
13
14
15
16 17
18
19
20
21
22 23
24
4
L1
L2
1
2
3
4 5
6
7
8
9
10 11
12
L1
www.swegon.com
L2
7
