EWM miniDrive GS Operating Instructions Manual page 25

Item Symbol
1
2
3
•
Loosen the crown nut of the liner fastening
•
Pull out steel liner
Due to production tolerances the steel liner length has to be adapted to the hose package used.
•
Place new and old steel liner in parallel
•
Shorten new steel liner to the total length of the old one
•
Insert new steel liner into the Euro torch connector as far as it goes (the steel liner has to be visible
inside the headless screw threaded hole)
•
Retighten the crown nut of the liner fastening
•
Screw headless screw back in using the Allen key (max. torque 2 Nm)
099-005262-EW501
22.11.2016
Description 0
Open-ended spanner, SW 11
Crown nut
Euro central connection
Welding current, shielding gas and torch trigger included
Design and function
Replacing the steel liner in the hose package

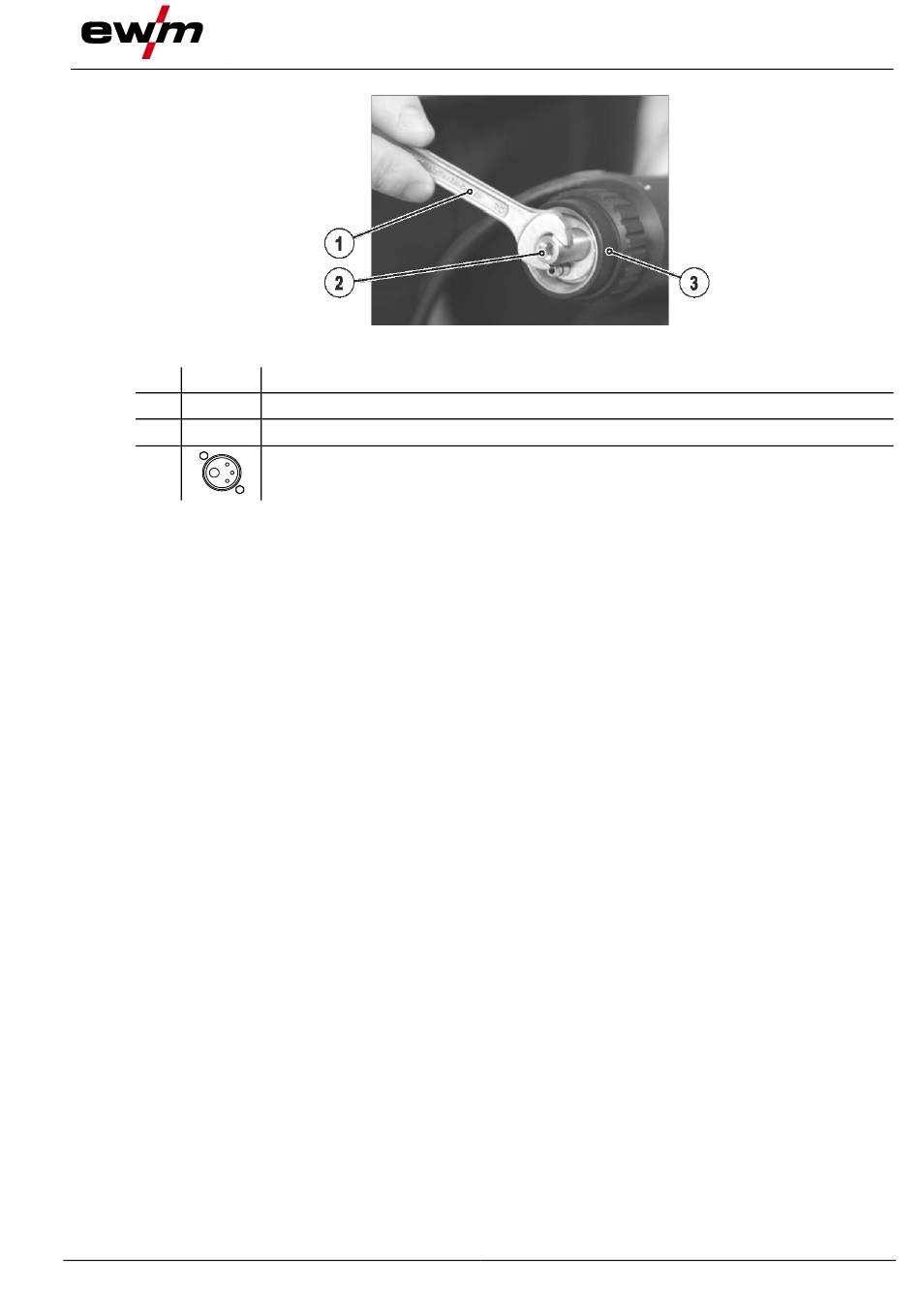

Figure 5-10
25
