4.2

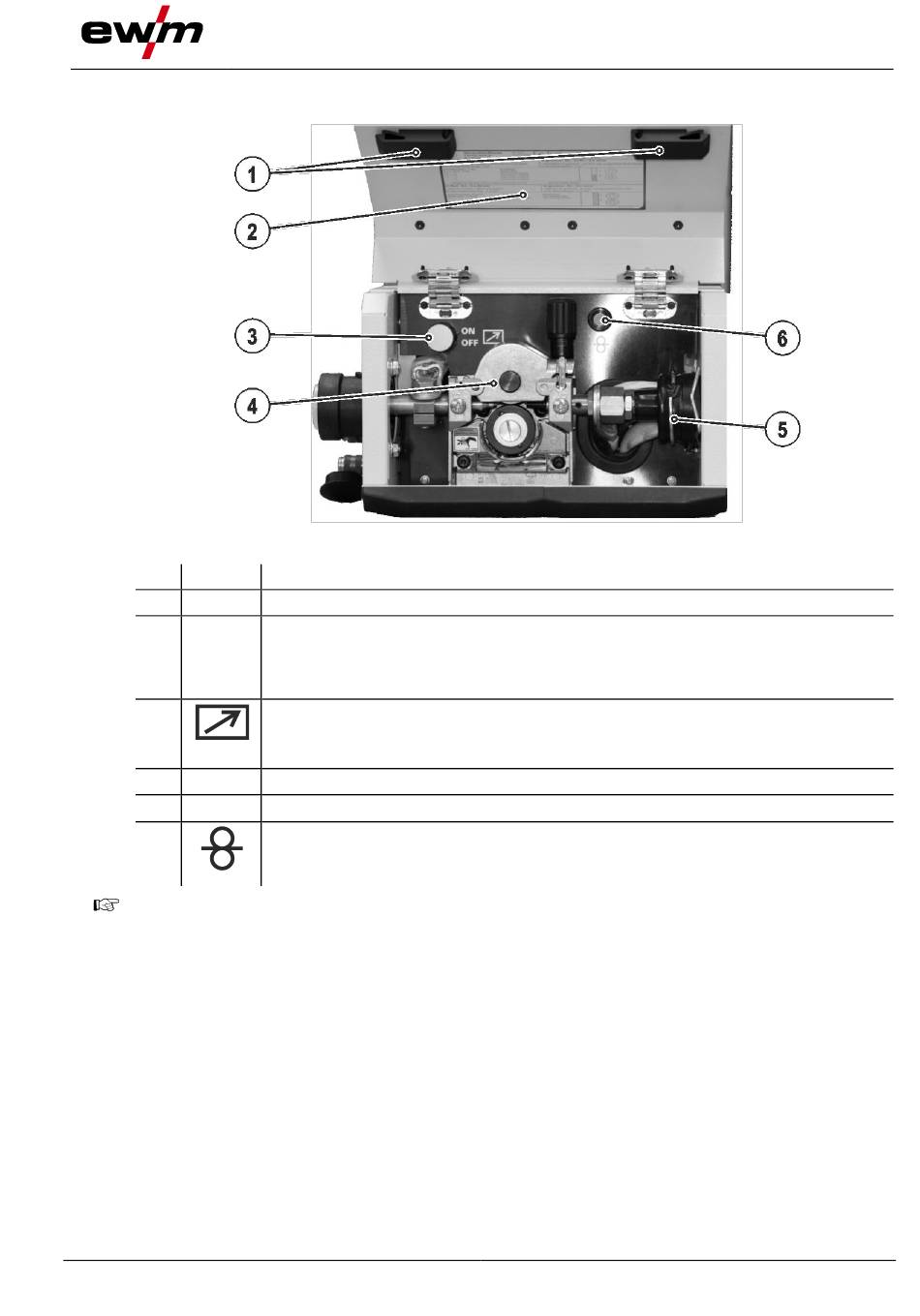

Inside view

Item Symbol
1
2
3
4
5
6
The inching speed is infinitely adjustable by simultaneously pressing the wire inching push-
button and turning the wire speed rotary knob.
099-005262-EW501
22.11.2016
Machine description – quick overview
Description 0
Slide latch, lock for the protective cap
Protective cap
Cover for the wire feed mechanism and other operating elements.
Depending on the machine series, additional stickers with information on the
replacement parts and JOB lists will be located on the inside.
Changeover switch, remote control on/off
ON Set the welding performance via the remote control
OFF Set the welding performance via the machine control
Wire feed unit
Intermediate hose package
Push-button, wire inching
Potential- and gas-free inching of the wire electrode through the hose package to the
welding torch > see 5.5.3 chapter.
Figure 4-2
Inside view
