Transmitter ("Tx"); Receiver ("Rx") - Vision Techconnect TC2-HDMIW7 Owner's Manual

INTRODUCTION
This product transmits uncompressed 1080p (60 Hz) video and audio content to a display
wirelessly. It uses 4.9 GHz~ 5.9 GHz frequencies and it adjusts frequency automatically to avoid
interference. It has built-in Omni-directional antennas and transmits up to 7 meters (20 feet)
LOS (Line of sight) with no latency.

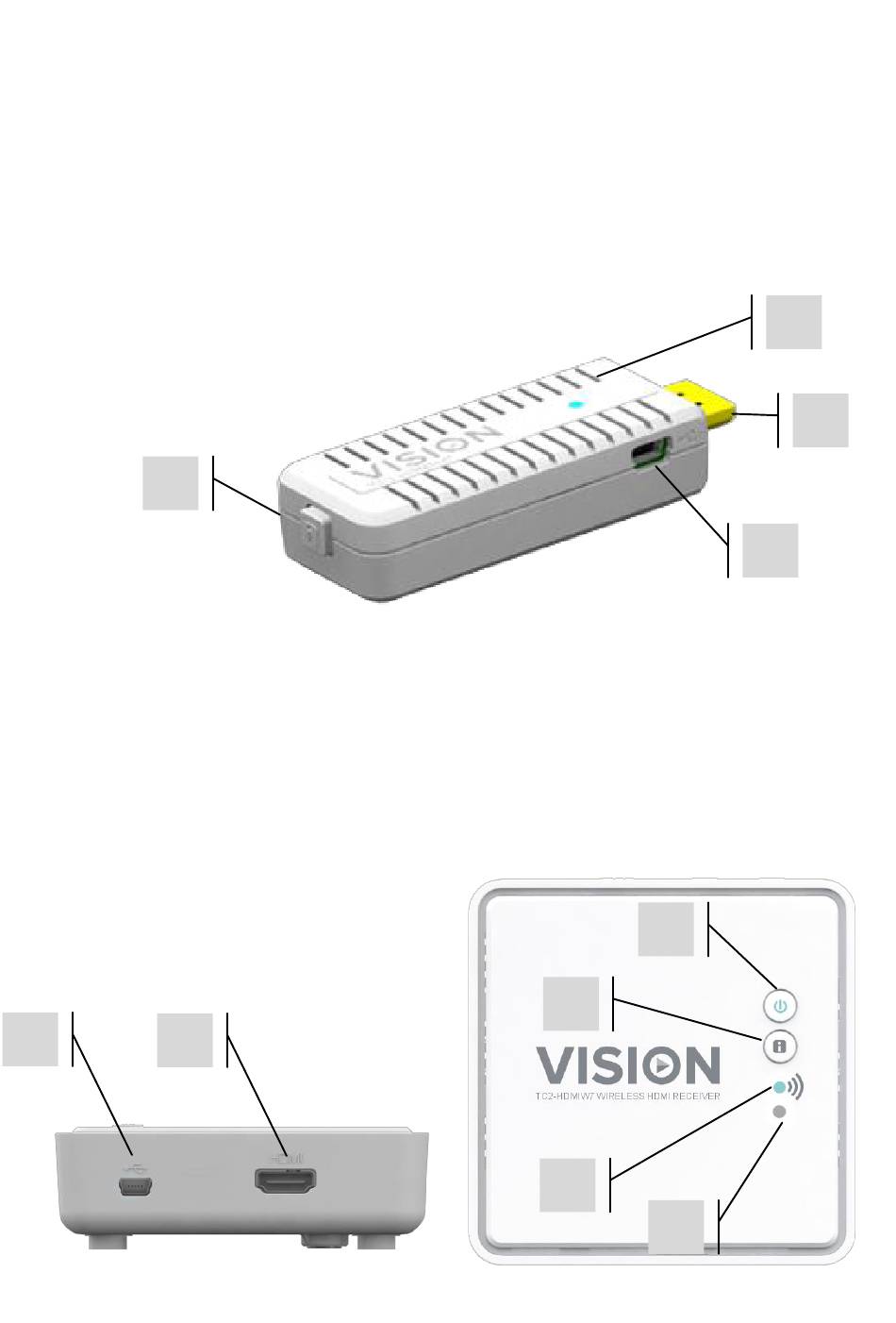

TRANSMITTER ("Tx")

1. Pairing Button (for use on other versions of this product. Disabled on this device)
2. Mini-USB power input
3. HDMI input
4. Status light (Solid blue = paired)
1

RECEIVER ("Rx")

1. Mini-USB power input
2. HDMI output
3. Status light (Solid blue = paired)
4. INFO button (press to show onscreen diagnostics information. Press again to turn off)
5. Power Button (blue when on, red when in standby)
6. Source LED (not used on this version of product except for diagnostics)
1
2
5
4
3
6
