TECHCONNECT HDBT
OWNERS MANUAL
www.visionaudiovisual.com/techconnect/tc2-hdbt
1
TC2-HDBT_manual_en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TECHCONNECT TC2-HDBT100Tx and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision TECHCONNECT TC2-HDBT100Tx

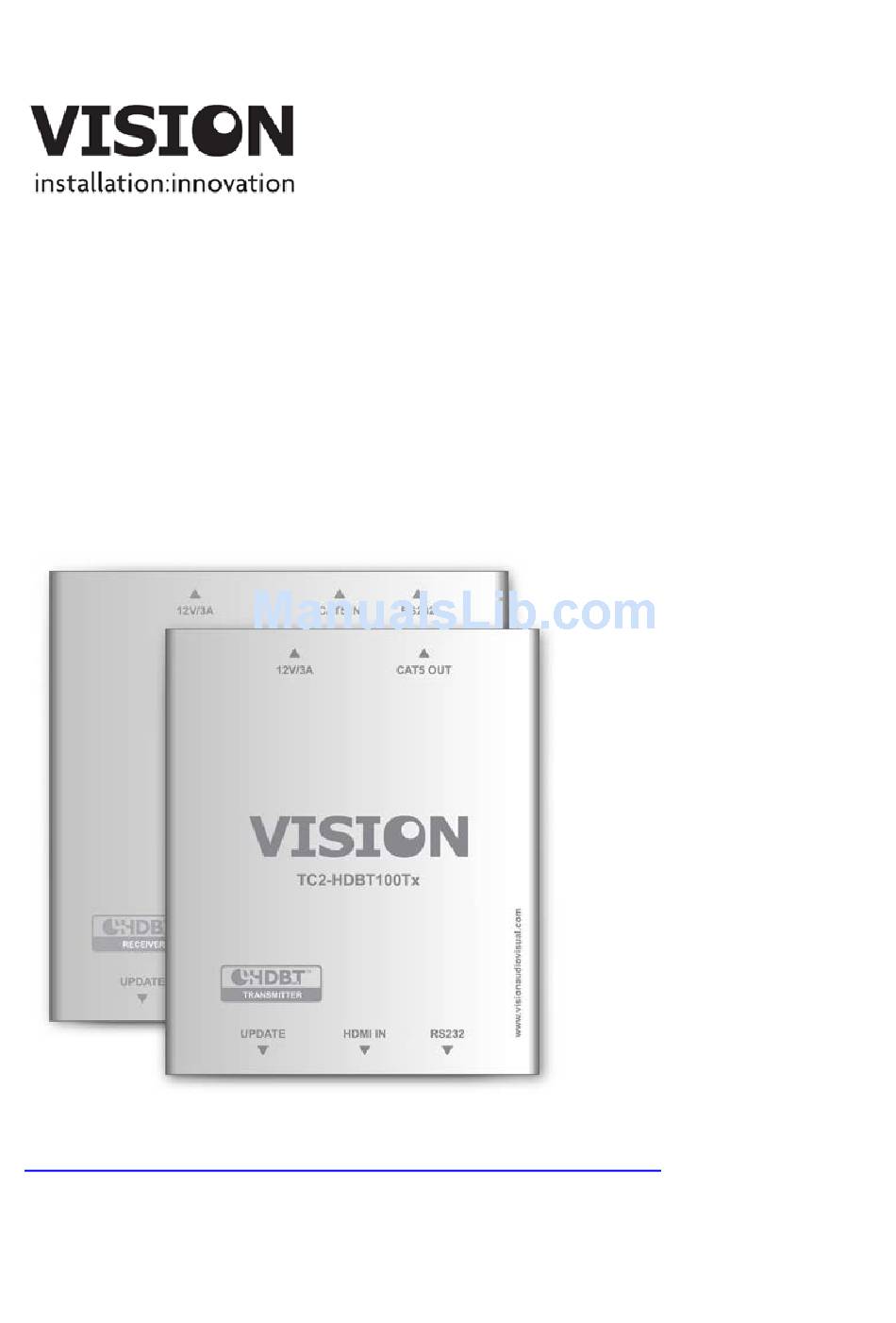

  • Page 1 TECHCONNECT HDBT OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc2-hdbt TC2-HDBT_manual_en...
  • Page 2: Declaration Of Conformity

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH.
  • Page 3: Place Of Installation

    WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair.
  • Page 4 TRANSMITTER Mini USB-B connector - for firmware updates Link LED – shows HDMI input is connected HDMI Input RS-232 Input CAT5e/6 Output Status LED – shows receiver is attached 12V 3A Power input Power LED TC2-HDBT_manual_en...
  • Page 5 RECEIVER Mini USB-B connector - for firmware updates 3.5mm Minijack Audio Output (analogue) EDID selector HDMI Output RS-232 Output CAT5e/6 Input Status LED – shows transmitter is attached 12V 3A Power input Power LED TC2-HDBT_manual_en...
  • Page 6: Installation

    When used as a set connect power to either the transmitter or receiver but not both. Vision HDBT products use proprietary PoE. When using either the transmitter or receiver in conjunction with other manufacturer’s HDBT equipment it is necessary to connect power.
  • Page 7: Troubleshooting

    TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction Status lights no on Check CAT5e/6 cable • • The cable should be wired to 568B standard at both ends. If one end has green and orange swapped this is a cross- over cable and cannot be used.
  • Page 8: Specifications

    SPECIFICATIONS TRANSMITTER DIMENSIONS: 105 x 88 x 25 mm (length x width x height) RECEIVER DIMENSIONS: 108 x 106 x 25 mm PRODUCT WEIGHT: Set: 0.68 kg Transmitter: 0.30 kg Receiver: 0.38 kg CONSTRUCTION MATERIAL: Metal COLOUR: White TECHNICAL DETAILS: Signaling rates: 2.25Gbits x 3 Input Video Signal: 0.5-1.0 volts p-p Input DDC Signal: 5 volts p-p (TTL)
  • Page 9: Warranty

    WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
