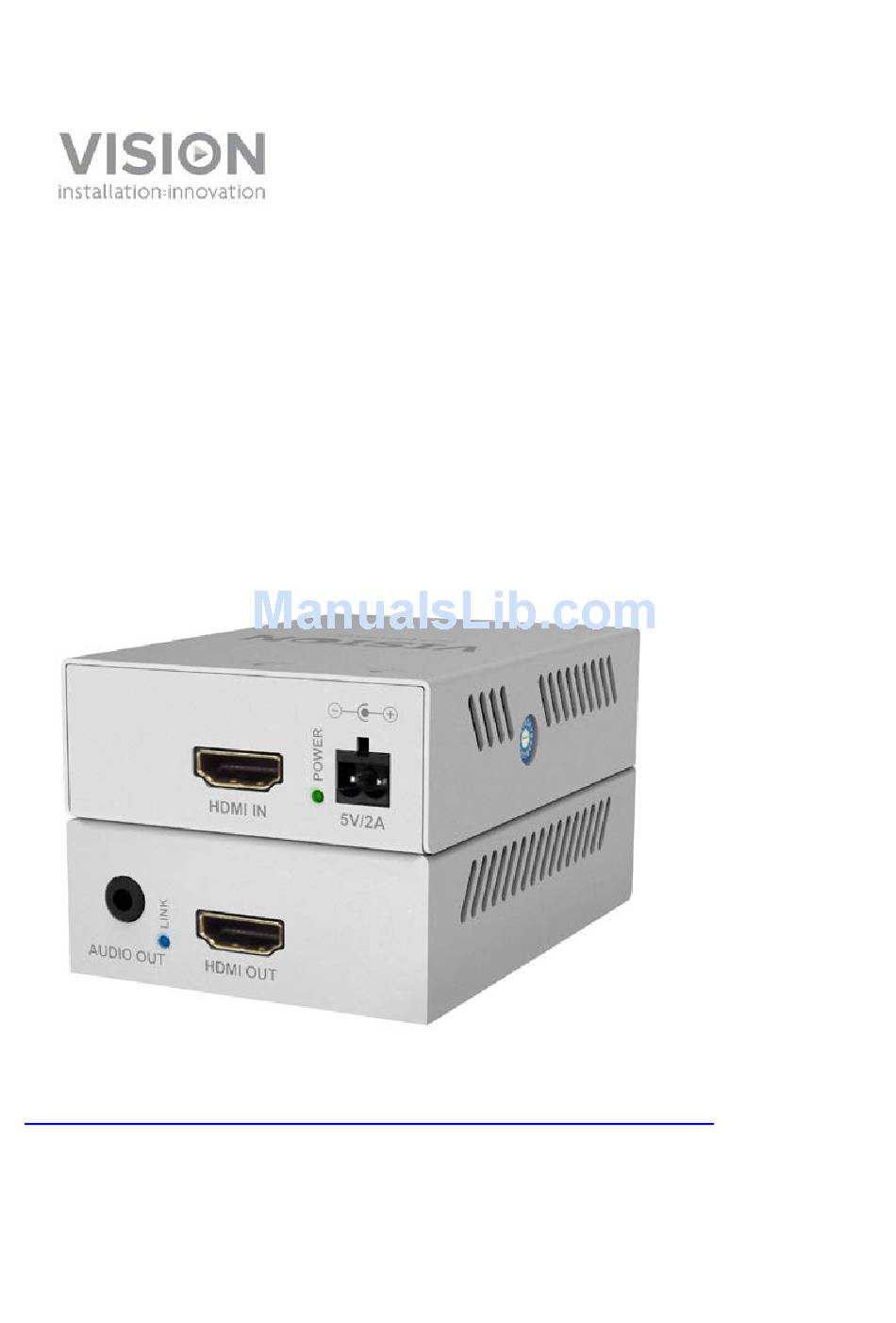

- Page 1 TECHCONNECT TC2-HDMIAUD OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc2-hdmiaud TC2-HDMIAUD_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
OVERVIEW This product has two functions: ACTIVE EXTENDER Joins HDMI cables together. • Maximum HDMI cable length: 15m (50 feet) • Daisy-chain up to three, total overall length with 15m cables: 60m (200 feet) • Auto-adjustment of equalization, buffering and amplification •... -
Page 5: Installation
INSTALLATION NOTE: Before installation disconnect power from all devices CONNECT SOURCE Use Vision HDMI cables to ensure quality CONNECT DISPLAY If specific EDID is required set it now CONNECT AUDIO OUTPUT If using the audio output connect it now TURN DISPLAY ON... -
Page 6: Edid Table
EDID TABLE Copy EDID from HDMI display (Default) 1080i, 2CH AUDIO 1080i, DOLBY/DTS 5.1 1080i, HD AUDIO 1080p, 2CH AUDIO 1080p, DOLBY/DTS 5.1 1080p, HD AUDIO Duplicated 1080p, 2CH AUDIO on D,E,F 3D, 2CH AUDIO 3D, DOLBY/DTS 5.1 3D, HD AUDIO 1280x1024 DVI 1920x1080 DVI 1920x1200 DVI... -
Page 7: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 92 x 63 x 25 mm (length x width x height) PRODUCT WEIGHT: 0.16 kg CONSTRUCTION MATERIAL: Metal COLOUR: White TECHNICAL DETAILS: Bandwidth: 1.65 GBPS Maximum Resolution: 1920 x 1200 Video Format Supported: 1080P @ 60Hz (supports 3D) HDMI standard: 1.3 (All features of 1.4 except HEC/ARC/4K2K) Maximum Transmission Distance @ 1080P: 24AWG 15m EQ: up to 40dB @ 825MHz... - Page 8 TC2-HDMIAUD_manual_en...
-
Page 9: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
