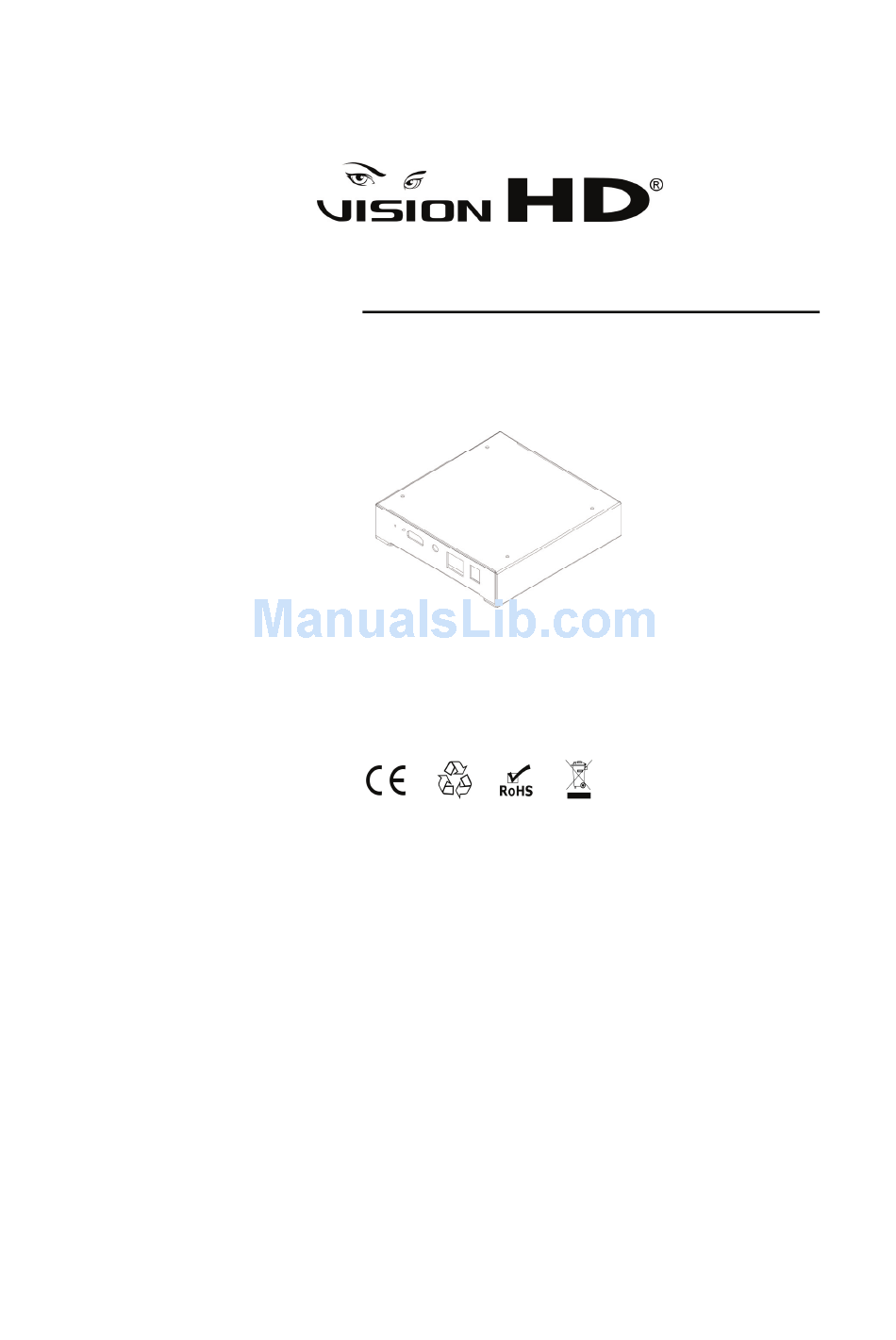

Page 1: Operating Instructions
Model No HDIP01_02 Operating Instructions Thanks for purchasing our product. Please be sure to read this instruction manual Carefully before using our product. - Page 2 Introduction The HDMI-IP Extender allows you to simultaneously send out an HDMI 1.3 Signal (including 1080p video with 5.1 audio) to one or more HDMI video projectors or LCD Panels and return an IR control Signal to the source using CAT5/6/7 Cable over a standard Ethernet infrastructure.
-
Page 3: Table Of Contents
Contents HDMI-IP Extender.................... 1 Product Overview .................... 1 Safety and Notice .................... 1 Features......................1 Package Contents.................... 3 Specifications....................3 Panel Descriptions ................... 3 Hardware Installation ..................5 Typical use....................... 6 ....................7 Product Service ....................7 ● Maintenance ● Provided Service ..................7 ●... -
Page 5: Hdmi-Ip Extender
HDMI-IP Extender Product Overview ( Model Number: HDIP01_020 ) ■ Safety and Notice ■ The HDMI extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the HDMI extender should be used with care. Please read and follow the safety instructions to protect yourself form possible injury and to minimize the risk of damage to the unit. - Page 6 Notice Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth.
-
Page 7: Package Contents
Package Contents ■ HDMI transmitting unit HDMI receiving unit 5V 1A power adaptor User manual Specifications ■ Video Bandwidth: 2.25 Gbps (HDMI 1.3) Input TMDS signal: 1.2 volts (peak-to-peak) Input DDC signal: 5 volts (peak-to-peak) HDMI Connector: 19 pin type female connector Power Supply: 5V 1A RJ-45 Connector Dimensions: 13 0x 137 x 30mm (Lx W x H) - Page 8 Rear Panel → Rear View –Transmitting Unit HDoIP01-001 HDMI IN: Connect a HDMI source with a HDMI M-M cable here IR TX: Plug IR Emitter – stick onto the front of the device you want to control ETHERNET: Plug in a CAT5/5e/6 cable that needs to be linked to HDIP01-002 DC/5V: Connect to 5V DC power supply Front Panel...
-
Page 9: Hardware Installation
Rear Panel → Rear View –Receiving Unit HDIP01-002 HDMI OUT: Connect a HDMI display with a HDMI M-M cable here IR RX: Plug IR Receiver – picks up the infrared signal from your remote control just like a TV or VCR ETHERNET: Plug in a CAT5/5e/6 cable that needs to be linked to HDIP01-001 DC/5V: Connect to 5V DC power supply... -
Page 10: Typical Use
Typical use ■ ① Point-to-point Example ② Point-To-Many Example Over Standard Ethernet LAN (TX—HDIP01-001, RX—HDIP01-002) Page 6... -
Page 11: Product Service
③ Many-To-Many Home Theater Example Over Managed Ethernet LAN Maintenance ■ Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. Product Service ■ ● Provided Service Damage Requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged;... -
Page 12: Mail-In Service
The unit has been dropped or the cabinet damaged. Servicing Personnel: Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. Replacement parts: When parts need replacing ensure the service uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. -
Page 13: Warranty Limits And Exclusions
During the “Parts” warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service. - Page 15 Grandbeing Technology Co., Ltd. Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen, P.R. China Tel: 86-755-26678449 Fax: 86-755-26678549 Post Code: 518067 www.grandbeing.biz...
