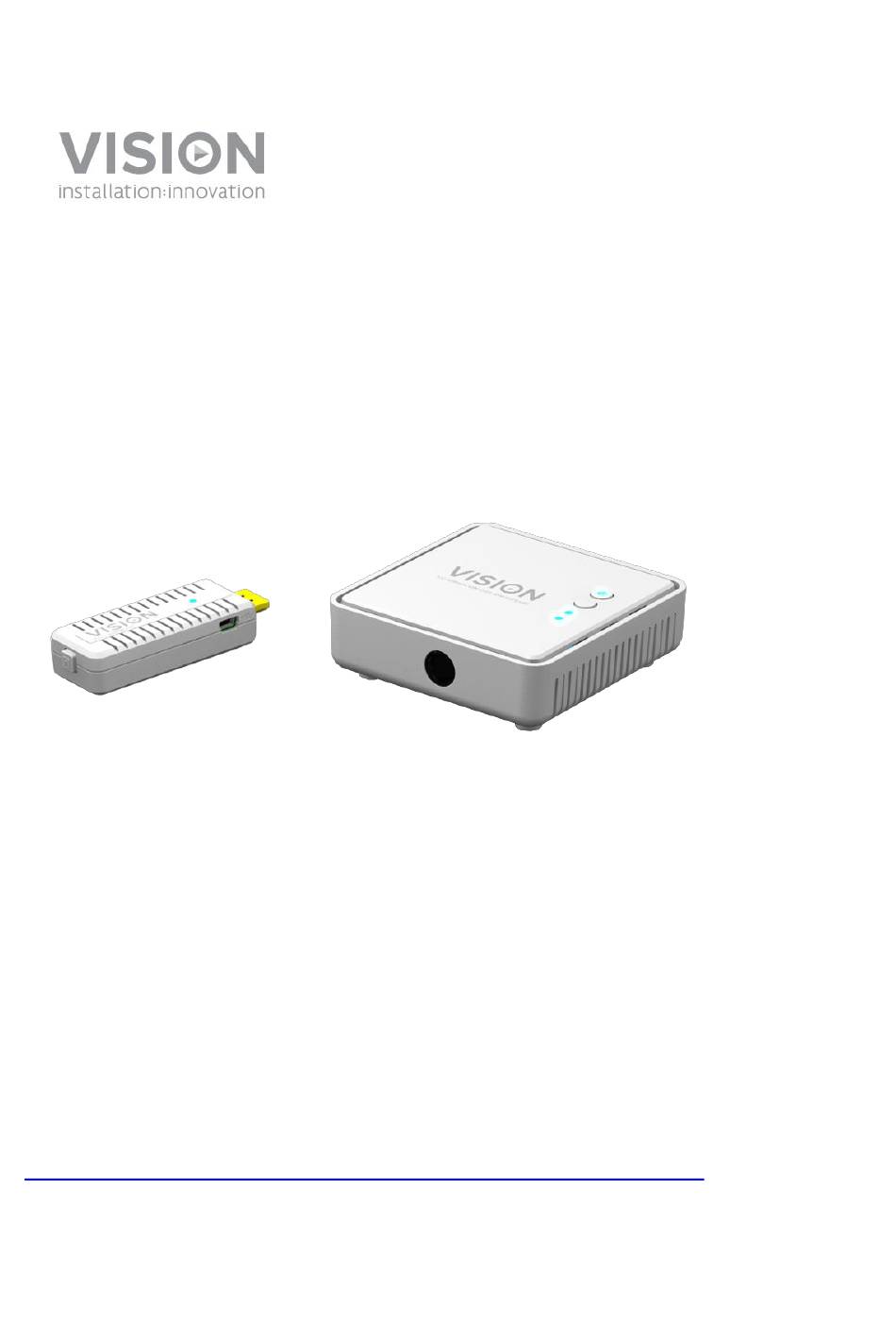

- Page 1 TECHCONNECT TC2-HDMIW7 OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc2-hdmiw7 TC2-HDMIW7_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by „Vision‟ who is wholly owned by „Azlan Logistics Ltd.‟, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Special Warnings
SPECIAL WARNINGS Never use this product near an aircraft or medical facility. It can cause interference. Use of product in the following locations may result in abnormal video and audio output: Product installed in the walls made of concrete ... -
Page 5: Transmitter ("Tx")
INTRODUCTION This product transmits uncompressed 1080p (60 Hz) video and audio content to a display wirelessly. It uses 4.9 GHz~ 5.9 GHz frequencies and it adjusts frequency automatically to avoid interference. It has built-in Omni-directional antennas and transmits up to 7 meters (20 feet) LOS (Line of sight) with no latency. -
Page 6: Wall Mounting
WALL MOUNTING The Rx comes with screws to mount it to the wall. DRY WALL INSTRUCTIONS: DRILL 2 X HOLES IN WALL 47MM APART INSERT PLASTIC RAWL PLUGS INTO HOLES INSERT SCREWS INTO PLUGS. LEAVE HEADS PROTRUDING HOOK RX INTO PLACE TC2-HDMIW7_manual_en... -
Page 7: Installation
INSTALLATION Connecting Rx PLUG IN TO POWER CONNECT TO DISPLAY with included HDMI cable TURN DISPLAY ON and select correct input Connecting Tx PLUG TRANSMITTER IN TO SOURCE DEVICE IF BLUE LIGHT ON TX DOES NOT START FLASHING CONNECT POWER If using with a PC connect short USB cable to a USB port on computer. -
Page 8: Status Indicators
INFO Press INFO button on Rx to see on screen display: Signal Quality Source (relates to other versions of product) Channel Resolution STATUS INDICATORS Rx Power Rx Status Rx OSD Display Standby Power saving Solid Red Boot up 15~20 seconds for Flashing... -
Page 9: Supported Resolutions
NOTE 3: If no video displayed and on screen display says “Not Supported Format” adjust resolution and frame rate on source device. SUPPORTED RESOLUTIONS Supported Resolutions Resolution 640x480p @ 59.94 / 60Hz 720x480p @ 59.94Hz 480p 720x480p @ 60Hz 720x576p @ 50Hz 576p 1280x720p @ 50Hz 720p... -
Page 10: Supported Audio Bit Rates
Supported Mandatory CEA 3D Video Format Timings 1280x720p @ 50Hz Top-and-Bottom 1280x720p @ 50Hz Frame packing 1280x720p @ 59.94 / 60Hz Top-and-Bottom 1280x720p @ 59.94 / 60Hz Frame packing 1920x1080i @ 50Hz Side-by-Side (Half) 1920x1080i @ 59.94 / 60Hz Side-by-Side (Half) 1920x1080p @ 23.98 / 24Hz Top-and-Bottom 1920x1080p @ 23.98 / 24Hz Frame packing If the RX status LED continues to flash slower than “no signal”... -
Page 11: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. Problem Correction Check if the power plugs of transmitter/receiver are properly Power indicators not inserted into a functioning power outlet. lighting up First steps Check the HDMI connection on the Tx ... - Page 12 Check video resolution on source device is compatible Ensure the transmission distance is less than 7m (20 feet) line of Poor image quality or sight intermittent video Check audio system is not muted and correct input is selected ...
-
Page 13: Specifications
SPECIFICATIONS TRANSMITTER DIMENSIONS: 83 x 30 x 17 mm / 3.3″ x 1.2″ x .67″ (length x width x height) RECEIVER DIMENSIONS: 95 x 95 x 32 mm / 3.7″ x 3.7″ x 1.3″ (length x width x height) PRODUCT WEIGHT: 300 g / .66 lbs (set) CONSTRUCTION MATERIAL: Plastic COLOUR: White TECHNICAL DETAILS:... - Page 14 Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.
- Page 15 LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice.
