Neoline WIDE S61 User Manual

Car video recorder with wi-fi connection
Hide thumbs

Advertisement

Quick Links

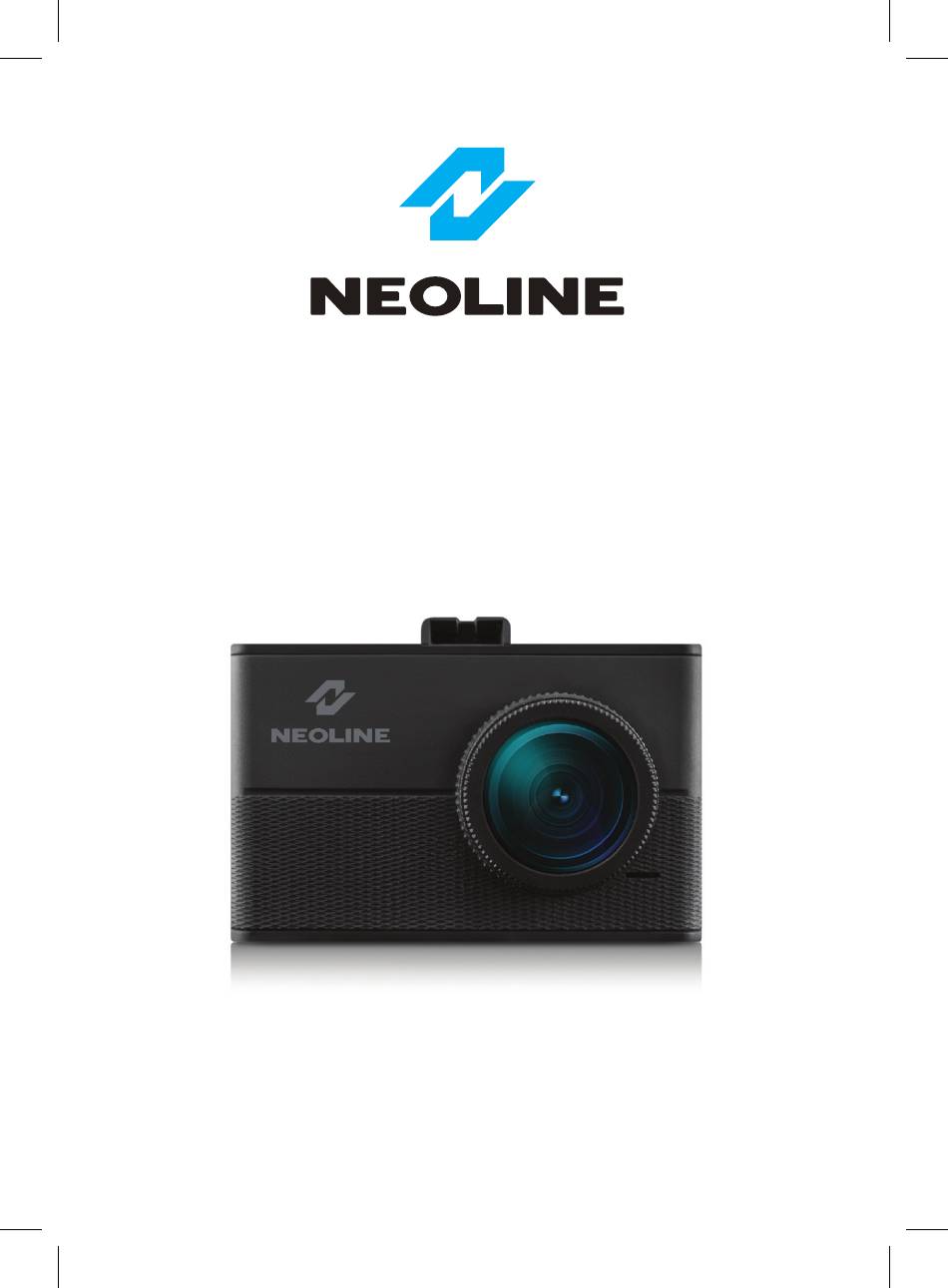

NEOLINE WIDE S61
CAR VIDEO RECORDER
WITH WI-FI CONNECTION
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIDE S61 and is the answer not in the manual?

Questions and answers

Анатолий
May 18, 2025

Здравствуйте! Как ввести номер автомобиля в видеорегистратор. Прошу подробный алгоритм.

0

Related Manuals for Neoline WIDE S61

Summary of Contents for Neoline WIDE S61

  • Page 1 NEOLINE WIDE S61 CAR VIDEO RECORDER WITH WI-FI CONNECTION User Manual...

  • Page 2: Table Of Contents

    Dear Purchaser, Thank you for acquiring Neoline WIDE S61 dashboard camera. Please carefully read this manual to the end in order to correctly use the device and extend its service life. Retain User Manual to consult it if necessary in future.

  • Page 3: Operational Conditions

    (petrol, solvents, reagents etc.). • Disassembly or modification of the product is prohibited. • NEOLINE shall not be held responsible for loss of data and/or damage, whether direct or indirect, caused to the user or to a third party through improper use of the device or software, incorrect installation, use of accessories not included in the delivery set.
  • Page 4 Neither Neoline nor their authorized partners shall be held responsible for whatever damage or loss of data as a result of improper holder installation.

  • Page 5: Technical Specifications

    2. Technical Specifications: • Video resolution: Full HD 1920*1080 (30 k/s) • Sony Sensor • Viewing angle: 140° • Screen size: 1.5 inches • Built-in supercapacitor* • Antiglare CPL-filter • Video recording format: MOV (H.264) • Built-in microphone/loudspeaker • WDR function •...

  • Page 6: List Of Equipment

    3. List of Equipment • Dashboard camera Neoline Wide S61 • Fastening on glass with suction cup • CPL-filter • Car charger 2 USB ports • User manual • Warranty card...

  • Page 7: Description Of Device And Buttons

    4. Description of Device and Buttons 1. Operation indicator 9. Lens 2. ON/OFF button 10. Loudspeaker 3. Menu button 11. mini USB connection 4. Mode button 12. Memory card slot 5. Up/Lock button 13. Reset button 6. Confirm button 14. Microphone 7.
  • Page 8 Button Description ON/OFF (only active with Press to switch on the device. Press and hold connected external power during 3 seconds to switch off. In Recording supply) mode, press to create a still picture. Menu In Standby mode, press to enter the Settings menu of the device.

  • Page 9: Installation Of Dashboard Camera

    5. Installation of Dashboard Camera. Windshield Mounting - Choose in advance a place for the dashboard camera installation in the motor vehicle. - Mount the holder on the device. Move it in the bracket holder until it stops. - Firmly hold the bracket base on the windscreen to fix it.
  • Page 10 Adjustment of Device Position - Loosen the knob to rotate the device vertically or horizontally. - Adjust the view angle, rotating the lens in required direction (right-left, up- down). Position the lens so that the camera captures the image in proportion - “30% sky/70% road”...

  • Page 11: Operation

    Note For optimal view, the device should be mounted next to the rear view mirror on the centreline and top of the windscreen. Position the lens so that the camera captures the image in proportion “30% sky/70% road” to reach the best filming results. Use of Antiglare (CPL) Filter Antiglare (CPL) filter is an optical filter intended to remove glares and reflec- tions from the windscreen for improvement of the videofilming quality.
  • Page 12 IMPORTANT: Attempting to insert the memory card with a wrong side can damage the device and the memory card itself. Make sure the memory card is in correct position. Warning: Do not apply too much effort when installing the memory card in order to avoid damage of the device.
  • Page 13 Files protected against rewriting are stored on the memory card in Movie/SOS folder. Firmware update 1) Download the firmware file from official website www.neoline.ru, extract the file from the archive. 2) Format the memory card and transfer the unzipped file in MicroSD the memory card.
  • Page 14 Motion sensor Upon detection of motion in front of the camera lens, the device will automati- cally switch on recording that will last during 10 seconds. Each new detected mo- tion will initiate 10-second long recording. Such files are stored on the memory card in Movie folder.
  • Page 15 Menu elements - Video resolution: 1080FHD 1920*1080/720p 1280*720/WVGA 800*480/ VGA 640*480 - Loop recording: 1 minute/ 2 minutes/ 3 minutes - WDR: Off/On - Exposure: -2 to +2 - Motion sensor: Off/On - Audio recording: Off/On - Date/time stamp: Off/On - Sensitivity of G-sensor: Off/ Low/ Medium/ High - Number plate stamp: enter number plate of motorcar using numbers and Latin letters.

  • Page 16: Application Wide S6X Use By Example Ос Android

    Application Wide S6x use by example ОС Android Connection - Download and install Neoline Wide SX annex - Make sure DVR is on - Press and hold for 3 seconds the Wi-Fi activation button on the DVR. When Wi-Fi is activated, the display of the DVR will display the device name and the basic...
  • Page 17 - run the application...
  • Page 18 Application menu items Recorder Files In this window, a list of files recorded on the memory card of the DVR is available. Attention! When you enter the file browsing menu, recording stops.
  • Page 19 3 tabs are available for the user : Video - tab is used to select the necessary files from the downloading into the memory of the cellphone. To download, click the icon next to the file. When clicking on in the upper right corner, you can select the files you need to download or delete.
  • Page 20 - make the screenshot of the current frame...
  • Page 21 - send file...
  • Page 22 - delete file...
  • Page 23 - view the GPS track (the function is available only for versions of the recorder equipped with a GPS sensor, see the description of the device)
  • Page 24 Online 1. Return to the main application screen 2. Recording status and recording time of the current file 3. Indication of the charge of the DVR 4. Current time 5. Go to the recorder files list 6. Stop or start shooting 7.
  • Page 25 Settings Attention! When making changes to the settings carefully follow the instructions of the tooltips - SSID - setting allows to change of the DVR’s network name Attention! Only Latin letters, figures and underscores are allowed.
  • Page 26 - Password - setting allows password changing for connecting to the network of the DVR - Photo resolution - select the desired image resolution - Video resolution - select the video resolution you need for filming - Loop recording - select the desired file length - Motion sensor - setting allows you to turn on / turn off the motion sen- sor.

  • Page 27: Troubleshooting

    7. Troubleshooting If problems have occurred while following the operational conditions, use this section to solve them. - Photographing and video r impossible Check whether there is enough free space on MicroSD card as well as whether the card is not blocked. - Recording self-stoppage Too large size of video files, only use highspeed MicroSD cards, not lower than Class 10, of proven manufacturers.
  • Page 28 Manufacturered for ‘’Neolainas’’ LTD Vilnius, Lithuania Made in PRC Official site: www.neoline.com Tech.Support: support@neoline.com Limited Warranty: 24 month DC 5V, 1.5A Operating temperature -10˚ to + 40˚...
