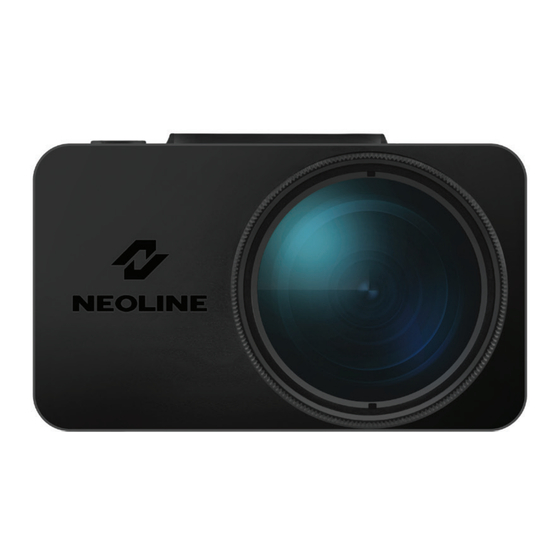

NEOLINE G-TECH X72
CAR DIGITAL VIDEO RECORDER
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-TECH X72 and is the answer not in the manual?

Questions and answers

Summary of Contents for Neoline G-TECH X72

  • Page 1 NEOLINE G-TECH X72 CAR DIGITAL VIDEO RECORDER User’s Manual...
  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing the Neoline G-Tech X72 car video recorder! Please read this manual carefully and all through to ensure proper use and longer service life of the device. Keep the user manual to consult it when necessary.
  • Page 3: Operation Conditions

    • Do not disassemble or modify the product. • Neoline is not responsible for any data loss and/or direct or indirect damage caused to the user or a third party by misuse of the device or software, their incorrect installation, or the use of accessories not included in the package.
  • Page 4 It is assumed that you agree with the provisions above before you start using the system. This user manual is valid at the time of printing. See the updates at www.neoline. com (Download).
  • Page 5: Specifications

    2. Specifications: • Video resolution: Full HD Max (1920x1080/30 fps) advanced bitrate Full HD Eco (1920x1080/30 fps) standard bitrate HD 60fps HD 60 fps (1280x720 / 60 fps) HD 30fps (1280x720 / 30 fps) VGA (640x480 / 30 fps) • Sony sensor •...
  • Page 6: Equipment

    3. Equipment: • Neoline G-Tech X72 car digital video recorder (DVR) • Magnet holder on scotch tape • Anti-glare CPL filter • Car charger (2 USB connectors) • User manual • Warranty card...
  • Page 7: Description Of The Device And Its Buttons

    4. Description of the device and its buttons 10. Contact area 1. Operation indicator 11. ON / OFF button 2. Mode selection button M 12. RESET button 3. Confirmation button OK 13. Microphone 4. Display 14. Lens with a removable CPL filter 5.
  • Page 8 Button description Button Description Press to turn the device on. Press and hold to turn the ON/OFF device off. When the device is on, press to turn the backlight off. In standby mode (no recording), press to enter/ exit the Menu.
  • Page 9: Installing The Dvr

    5. Installing the DVR Installation on the windshield - Choose the installation location in advance, as the adhesive tape on the mount is of single use. - Degrease the mounting location and warm it up to ensure strong adhesion. - Install the magnet holder into the device and turn the DVR on. When evaluating the display image, make sure that the horizontal is kept and the lens captures the image symmetrically both on the left and right.
  • Page 10 Adjusting the viewing angle ATTENTION! Adjusting the viewing angle can only be done along the vertical line, so be sure to position the device correctly on the windshield along the horizontal line as close as possible to the windshield’s center. While pulling or pushing the device in the holder, ensure that the camera cap- tures the image in proportion of 30% sky / 70% road.
  • Page 11: Device Operation

    Anti-glare filter (CPL filter) The anti-glare (CPL) filter is an optical filter to ensure there are no glares and reflec- tions on the windshield to improve video quality. When using a CPL filter, follow the instructions below for the best video results: 1.
  • Page 12 ATTENTION: Attempting to insert a memory card wrong may damage the de- vice and/or the memory card itself. Make sure the memory card is in the correct position. Warning: Do not apply excessive force when inserting a memory card to avoid damage to the device.
  • Page 13 Emergency recording Emergency recording is to protect the current video file from being overwritten and deleted. In order to protect the current video file, press the Hot-key button; now the current video file is marked to prevent it from be- ing deleted/overwritten.
  • Page 14 Parking mode To activate the parking mode, press and hold the Hot-key button (if the Parking mode is assigned as an additional function in the settings menu). If you use the original accessory to connect the DVR to the fuse box, turn on the Parking Mode in the menu.
  • Page 15 Playback/Delete Files Playback - In the standby mode, press and hold the M button to switch to the view mode. - Select the file to view using the Up / Down and Confirm buttons. - Using the Up / Down buttons, select the file you need to view and click the Confirm button to start playback.
  • Page 16 Menu items VIDEO mode - Resolution: Full HD Max (1920 * 1080p 30 fps, max. detalization) Full HD ECO (1920 * 1080p, 30 fps, normal detalization) HD 60FPS (1280 * 720p, 60 fps) HD 30FPS (1280 * 720, 30 fps) VGA (640 * 480) - Hot-key: Parking mode This setting assigns an additional function to the Hot-key.
  • Page 17 - Date/Time: use the buttons to set the current date - Auto display off: Off / 7 sec / 30 sec / 1 min / 3 min - Button sound: On/off. - Language: select the preferred menu language from the list - Formatting reminder: Off / 15d / 30d / 60d - Formatting: Use the display instructions to format the memory card.
  • Page 18: Possible Problems And Their Causes

    Updating Firmware 1) Download the firmware file at www.neoline.com and extract the file from the archive. 2) Format the memory card and transfer the extracted file to the microSD memory card. 3) Insert the memory card with the downloaded file into the DVR slot.
  • Page 19 - Blurred image. Check for dirt on the lens and the CPL filter. If there is any, wipe the lens with a soft cloth before use (it is recommended to use special care products for the optics in order not to damage the surface of the lens). - Darkened image when photographing the sky or water.
  • Page 20 Manufactured for ‘’Neolainas’’ LTD Vilnius, Lthuania Made in PRC Official site: www.neoline.com Techical support: support@neoline.com Warranty: 12 months Service life: 36 months 5VDC, 1.5A Operating temperature: -10˚C to + 60˚C Importer and authorized service organization: see individual packaging...
