Page 1

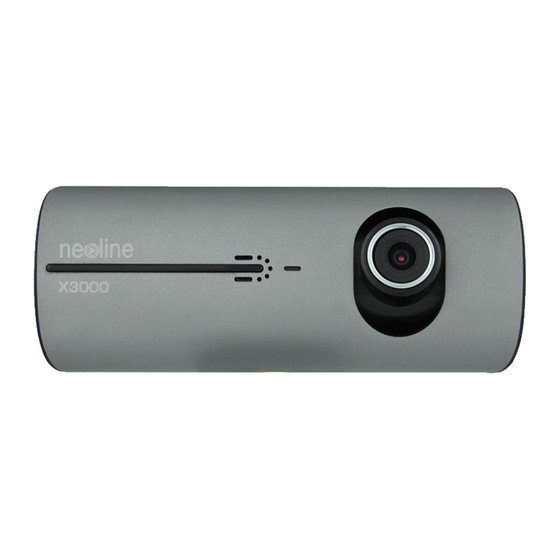

Thank you for choosing the X3000 driving recorder! In addition to driving the local recorder of common features, added three major features: (1) built-in dual camera, can take before and after the two images; (2) increase the GPS module to a complete record of driving track. Use of...
Page 2
Catalog Product structure ......... Started to use the road recorder ......... To charge the battery ......... Insert a memory card ...
Page 7
Recorder began to use the road Charge the battery There are two ways to charge the battery:...
Page 8
1. Use USB cable to connect the machine to the computer charge; 2. Using the supplied vehicle power charger. The process of charging the red charging lamp lights up after the indicator goes off. The charging time takes about 240 minutes. Insert a memory card The TF (Micro SD) memory card according to the direction of the fuselage, straight forward slot until you hear a "click"...
Page 9
software supplied with the format. Adju st the position of the lens The front of the lens to the upper and lower 20-degree rotation, in order to better meet the driving recorde r in a fixed location, access to good shooting. Open and close the machine Power on: press the power button once, the red power light is on.
Page 10
"OK" button to accept the settings, pres s MENU key to exit the menu. System configuration: The viewfinder can preview mode, the system can be set. Video mode: dual lens / mirror front / rear mirror; Time setting: left-right to adjust the hours, press the OK button to confirm exit; Format: Press OK to select Yes / No;...
Page 11
On / off the audio: In the recording process, press the left button, can quickly turn on / off the audio image file. Image data playback and file management Press the MODE button to enter playback mode, the screen shows the last video file playback screen.
Page 12
computer. (2) computer operating system must be Windows 2000/XP/Vista/Windows 7, MAC OS x 10.3.6 above. Use of the software: Using TF card reader to read out the image of the document information. User in the "My Computer" on the disk can be seen under TF card 3 files: 。...
Page 13
Sele ct the disk where the path to TF card, then click "Apply", within the document and a utomatically load the card play. Click controls to control playback status: from left to right, respectively to achieve Slow forward / stop / playback (pause) / Fa Forward.
Page 14
, Select the file yo u want to save the video Click the pop-up screen to save the file path, select, click "OK" to save selected files. Photo Archive: click The need to sav e the selected screen images, Save the file path to pop-up screen, choose the path, click "S ave."...
Page 15
Google maps: Click , mputer through an Internet connection to Google Maps and the map showing lane track, trace routes on the vehicle. Gravity Sensor:...
Page 16
Click , On the computer while watching the video, read and display the gravity sensing data, retrospective in driving the process and unusual incidents Other operations: Click From left to right, respectively, to achieve the following: Repair Video / unlock protected / select the display size. Reset the machine When the unit is operating properly due to abnormal situations, you can press the reset button then turn the machine return to normal.
Page 17
- Start the car automatically start recording function - A delay start function, to prevent damage to the car to launch an instant pulse current machine -GPS positioning scan - Gravity sensor SENSOR Technical Specifications LCDScreen Size 2.7“ (16:9) Lens before the lens ultra wide 140 degree / 120 degree super wide angle Language English / German / French / Spanish / Italian / Portuguese Options...
Page 18
Note: This product is to retain the right to change design and specifications without notice. Accessories: vehicle power supply; TV cable;car bracket; GPS modual;manual...
