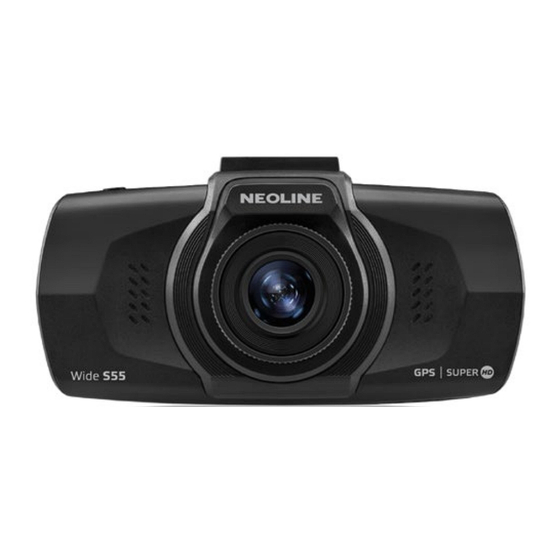

NEOLINE WIDE S55
CAR DWR
User's manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIDE S55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Neoline WIDE S55

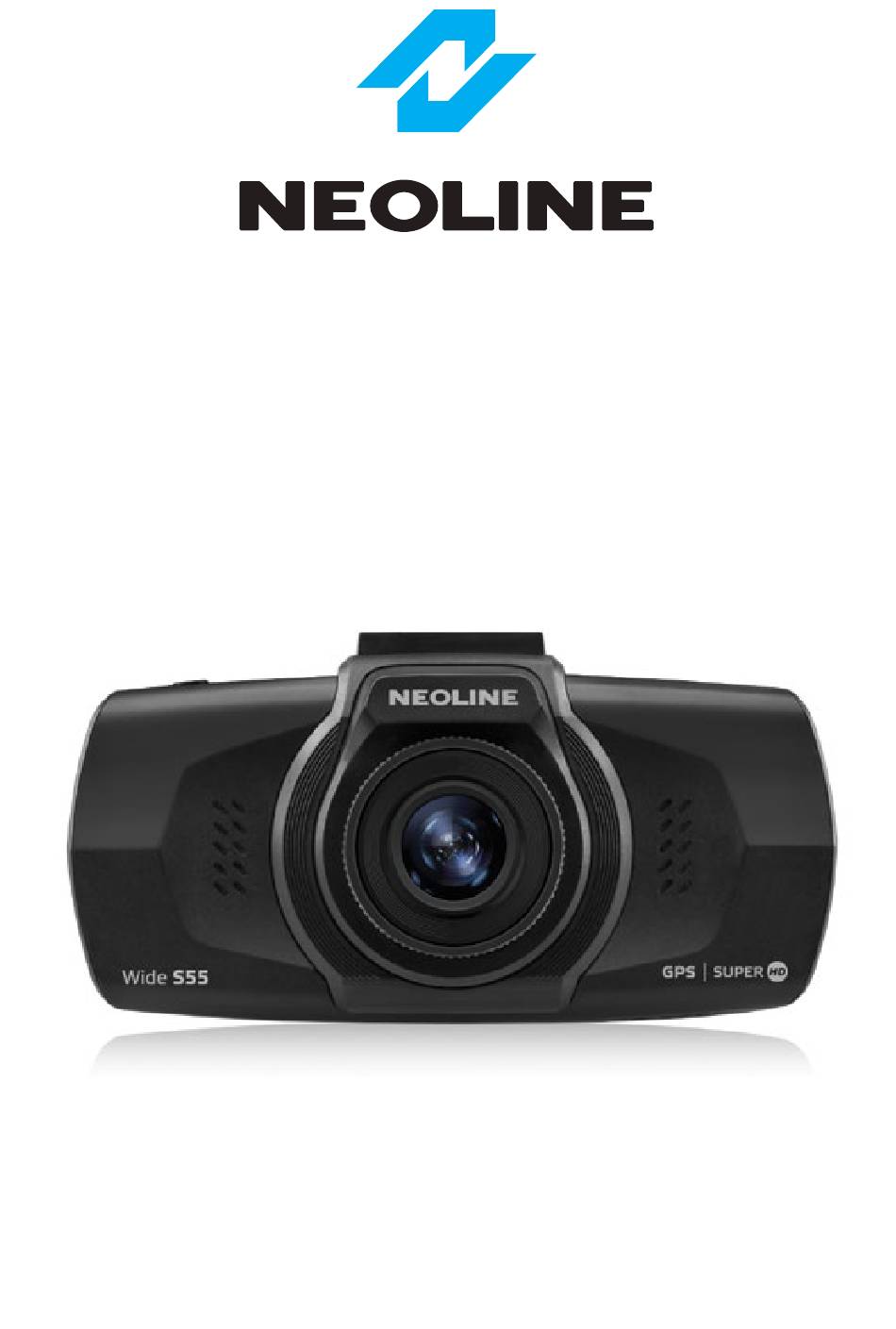

  • Page 1 NEOLINE WIDE S55 CAR DWR User’s manual...
  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing the Neoline WIDE S55. Please read this manual carefully to the end in order to properly use the device and extend its service life. Keep the user’s manual for reference should it becomes necessary in the future.  ...
  • Page 3: Operating Conditions

    • Do not disassemble or modify the product. • Company Neoline shall not be liable, directly or indirectly, for loss of data and/ or damage caused to the user or third party by incorrect use of the device or software, incorrect installation, or use of accessories that are not included in the package.
  • Page 4 Company Neoline, or authorized partners of the company, are NOT responsible for any damage or loss of data due to inappropriate installation of the holder.
  • Page 5: Technical Specifications

    2. Technical specifications • Camera Resolution: - WFHD 2560*1080 (30 fps) - Super HD 2304*1296 (30 fps) - Full HD 1920*1080 (45 fps) - HDR Full HD 1920*1080 (30 fps) • Viewing Angle: 150 ° (diagonally) • Screen size: 2.7 inches •...
  • Page 6: Package Contents

    3. Package contents: • Video recorder Neoline Wide S55 • Mounting on the glass with suction cup • USB cable • Charger • User’s manual • Warranty card...
  • Page 7: Description Of The Device And Indicators

    4. Description of the device and indicators 1. MicroSD card slot 9. Photo button 2. Speaker 10. Play / Lock button 3. Lens 11. Confirmation button 4. Charge indicator 12. Reset button 5. Recording indicator 13. Holder mounting slot 6. Up 14.
  • Page 8 1. Operating mode 2. Power Supply Indicator 3. Memory card status 4. Duration of a cyclic recording 5. Parking mode status 6. GPS Connection Status 7. Duration of current video 8. Video quality 9. Video resolution 10. Audio recording status...
  • Page 9 Button Description Power on / off Press to turn on the device. Press and hold for 3 seconds to turn off. Press to navigate up the menu or files in Playback mode. Menu Press to enter the device settings menu. In Playback mode, press to return to the previous menu.
  • Page 10: Installing The Dvr

    5. Installation of the DVR Installation on the wind shield - Determine the place in advance installation of the DVR in the car. - Install the bracket on the device. Slide it in the bracket holder until it stops. -Firmly holding the base of the bracket fix it on the windshield by turning the fixing clamp clockwise until it stops.
  • Page 11 - Then, tighten the knob to securely lock the recorder. Power connection Use only the supplied power adapter to power the device and charge the battery. - Connect one end of the power adapter to the “Micro USB” port on the device. Connect the other end of the adapter to the car cigarette lighter socket.
  • Page 12: Operation Of The Device

    6. Operation of the device Preparing the device A. Insert the MicroSD card into the memory card slot. Before inserting the memory card, turn off the device, insert the memory card until it is fully secured. Insertion of the card: Bring the microSD card to the slot, as shown in the picture and insert until it clicks.
  • Page 13 Powering the device on and off Automatic on / off After starting the car engine, the device will automatically turns on. Manual on and off - To turn on the device manually, press the power button. - To turn off the device, press and hold the power button for 3 seconds. Cyclic recording 1) Insert the MicroSD card into the memory card slot and the Cyclic recording mode will be automatically turned on.
  • Page 14 Updating of the GPS database 1) Download the file from the database of the official site www.neoline.ru, extract the file from the archive. 2) Extract the edogdata.dat file from the archive and transfer it to the root of the preformatted MicroSD memory card.
  • Page 15 This function allows to activate the sensor of the G-sensor when the device is turned off. The device will automatically switch to this mode after turning it off. If the G sensor registers a push or a blow to Your car, recording will start auto- matically even if the recorder is turned off and no external power is supplied.
  • Page 16 Distance to the site of police radar Neoline Wide S55 will make an audio and voice notification of the police radar and display the information on the display, which will contain: - type of police radar; - distance to it;...
  • Page 17 When detecting cameras of “Average Speed Control” Neoline Wide S55 treats this system as follows: - Showing of the distance on the display to the 1st camera and Voice alert - After the passage of the 1st camera, the average speed will be calculated - When approaching the 2nd camera, a notification “Video control is com-...
  • Page 18 Types of police radar and traffic control cameras Video control Picture Arrow Speed control Police Post Mock-up Average Speed control Radar to the back Curbside control Separating line control Intersection Note: after notification of the police radar, the permitted speed is an- nounced on the current section of the road.
  • Page 19: Menu Items

    Menu items Basic settings - Video resolution: 2560*1080 30P 21:9/ 2304*1296 30P 16:9/ 1920*1080 45P 16:9/ HDR1920*1080 30P 16:9/ 1920*1080 30P 16:9 - Quality: Best / Good / Basic - Cyclic recording: Off / 1 minute / 3 minutes / 5 minutes - Audio recording: Off / On - Stamps: Date / Time / GPS.
  • Page 20 - Default settings: use to restore the factory settings. - Software version: information about the firmware version - Sensitivity of the G-sensor: Off / High / Medium / Low GPS Settings - Permissible excess: Off / + 5 km / h / + 10 km / h / + 15 km / h / + 20 km / h / + 25 km / h / + 30 km / h - An additional excess is the excess of the speed limit in the area below which the device does not notify you of speeding.
  • Page 21 The possibility of using an anti-glare filter (CPL filter) Anti-glare (CPL) filter - an optical filter designed to eliminate glare and reflections from the wind shield to improve the quality of video. Attention: CPL filter is not included in the package. To install a CPL filter you need a step-up adapter ring for 30.5mm to 37mm.
  • Page 22: Possible Problems And Their Causes

    7. Possible problems and their elimination If, by following the conditions of use, the device has problems, use this section to resolve them. - It is not possible to take pictures and record video. Check if there is enough free space on the microSD card, and also whether it is locked or not. - Spontaneous stop during recording.
  • Page 23 Manufacturered for ‘’Neolainas’’ LTD Vilnius, Lithuania Made in PRC Official site: www.neoline.com Tech.Support: support@neoline.com Limited Warranty:24 month DC 5V, 1.5A Operating temperature -10˚ to + 60˚...
