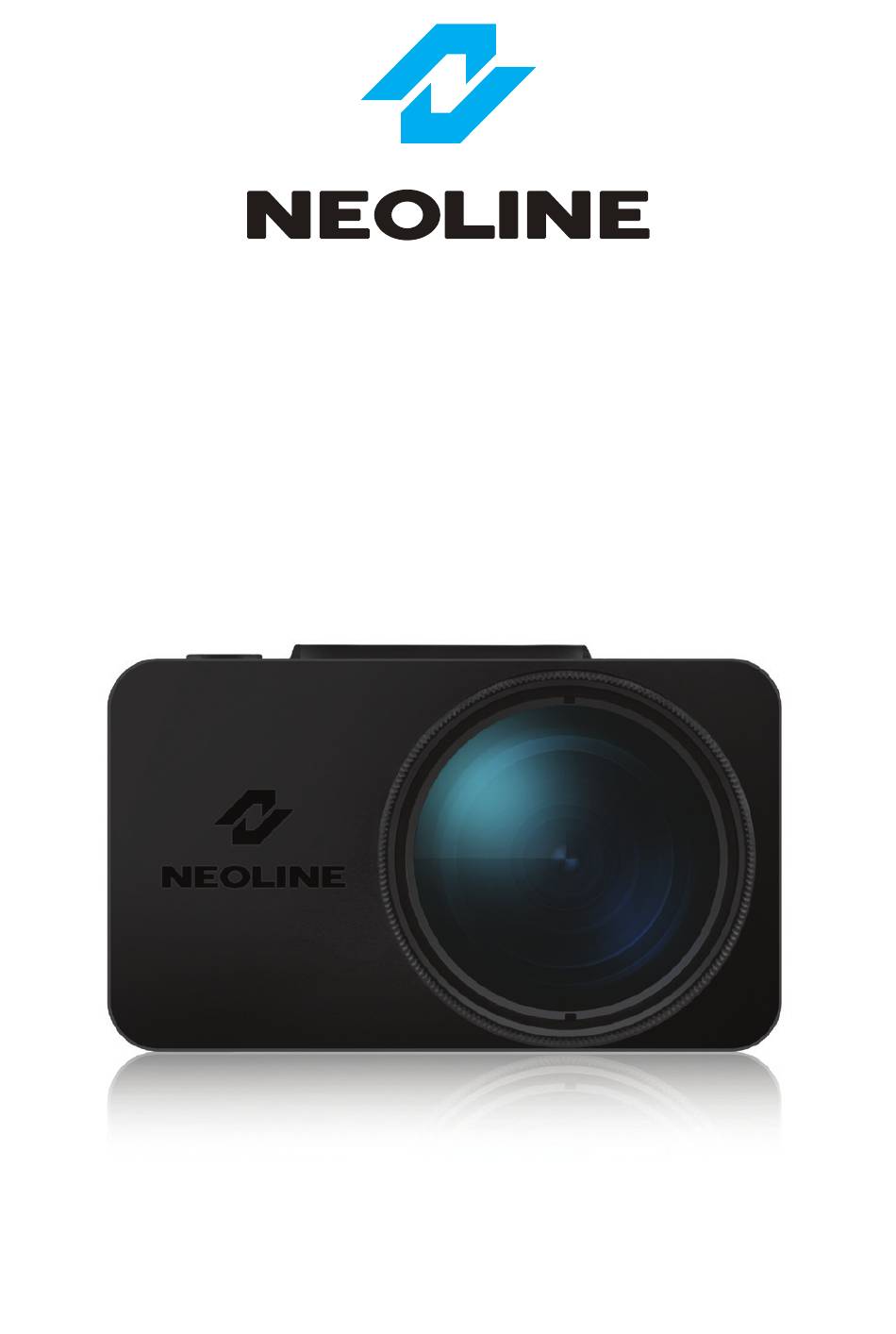

- Page 1 NEOLINE G-TECH X74 CAR DIGITAL VIDEO RECORDER User manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing NEOLINE G-TECH X74 car digital video recorder (DVR)! Please read this manual carefully and all through to ensure proper use and longer service life of the device. Keep the user manual to consult it when necessary. -
Page 3: Operation Conditions
• Do not disassemble or modify the product. • Neoline is not responsible for any data loss and/or direct or indirect damage caused to the user or a third party by incorrect use of the device or software, their incorrect installation, or the use of accessories not included in the package. - Page 4 It is assumed that you agree with the provisions above before you start using the system. This user manual is valid at the time of printing. See the updates at www.neoline. ru , Download section.
-
Page 5: Technical Characteristics
2. Specifications: • Video resolution: Full HD Max (1920x1080/30 fps) advanced bitrate Full HD Eco (1920x1080/30 fps), standard bitrate HD 60 fps (1280x720/60 fps) HD 30fps (1280x720/30 fps) VGA (640x480/30 fps) • Sony sensor • Viewing angle: 140° • Screen size: 2” •... -
Page 6: Equipment
3. Equipment: • Neoline G-Tech X74 car digital video recorder (DVR) • Magnet holder on scotch tape • Car charger (2 USB connectors) • User Manual • Warranty card... -
Page 7: Dvr/Keys Description
4. Description of the device and its buttons 1. Operation indicator 10. Contact area 2. Mode selection button M 11. ON / OFF button 3. Confirmation button OK 12. RESET button 4. Display 13. Microphone 5. DOWN button 14. Lens with a removable CPL filter 6. - Page 8 Button description Button Description Press to turn the device on. Press and hold to turn the ON/OFF device off. When the device is on, press to turn the backlight off. In standby mode (no recording), press to enter/ exit the Menu.
-
Page 9: Dvr Installation
5. DVR Installation Installation on the windshield - Choose the installation location in advance, as the adhesive tape on the mount is of single use. - Degrease the mounting location and warm it up to ensure strong adhesion. - Install the magnet holder into the device and turn the DVR on. When evaluating the display image, make sure that the horizontal is kept and the lens captures the image symmetrically both on the left and right side. - Page 10 Adjusting the viewing angle ATTENTION! Adjusting the viewing angle can only be done along the vertical line, so be sure to position the device correctly on the windshield along the horizontal line as close as possible to the windshield’s centre. While pulling or pushing the device in the holder, ensure that the camera captures the image in proportion of 30% sky / 70% road.
-
Page 11: Dvr Operation
Anti-glare filter (CPL filter) The anti-glare (CPL) filter is an optical filter to ensure there are no glares and reflections on the windshield to improve video quality. When using a CPL filter, follow the instructions below for the best video results: 1. - Page 12 ATTENTION: Attempting to insert a memory card wrong may damage the device and/or the memory card itself. Make sure the memory card is in the correct position. Warning: Do not apply excessive force when inserting a memory card to avoid damage to the device.
- Page 13 Emergency recording Emergency recording is to protect the current video file from being overwritten and deleted. In order to protect the current video file, press the Hot-key button; now the current video file is marked to prevent it from being deleted/overwritten. An icon appears on the screen.
- Page 14 Parking mode To activate the parking mode, press and hold the Hot-key button (if Parking mode is assigned as an additional function in Settings). If you use the original accessory to connect the DVR to the fuse box, turn on Parking Mode in the menu.
- Page 15 Playback/Delete Files Playback - In Standby mode, press and hold the M button to switch to View mode. - Select the file to view using Up/Down and Confirm keys. - Using Up/Down keys, select the file you need to view and click Confirm button to start playback.
- Page 16 Notification of nearby traffic cameras ATTENTION! NEOLINE is not responsible for any administrative penalties for violation of the traffic rules by the device owner. The speed cameras and other traffic rules reporting are only to provide safer driving. Authorized speed...
- Page 17 Average Speed Control Cameras Average speed control cameras are located on ~500m to 10km road sections. The average speed is calculated based on the travel time and the leaving time recorded when the car passes the first and the second camera correspondingly. ATTENTION! Speed control systems are constantly upgraded.
- Page 18 Menu items VIDEO mode - Resolution: Full HD Max (1920 * 1080p 30 fps, max. granularity) Full HD ECO (1920 * 1080p, 30 fps, normal granularity) HD 60FPS (1280 * 720p, 60 fps) HD 30FPS (1280 * 720, 30 fps) VGA (640 * 480) - Hot-key: Parking mode This setting assigns an additional function to the Hot-key.
- Page 19 - Date/Time: use the buttons to set the current date - Auto display off: Off / 7 sec / 30 sec / 1 min / 3 min - Key tones: On/off - Language: select the preferred menu language from the list - Formatting reminder: Off / 15d / 30d / 60d - Formatting: Use the display instructions to format the memory card.
- Page 20 Notification of nearby traffic control cameras • Radar notification: Off/On • Volume: High/Avg/Low/Lowest • Notification type: Voice + Text/ Voice/Text • Notification distance: Auto/200m/300m/400m/500m/600m/700m/800m/900m • Speed limit tolerance (km/h): Off/ -10/-5/-3-/0/+2/+5/+10/+15/+20 (See examples below). Example A: - Section speed limit: 60 kph - Tolerance: Off In this case, a speed alert is given at 61 km/h.
- Page 21 Updating Firmware 1) Download the firmware file at www.neoline.ru and extract the file. 2) Format the memory card and move the extracted file to the microSD memory card. 3) Insert the memory card with the file into the DVR memory card slot.
-
Page 22: Troubleshooting
7. Troubleshooting This section helps you to eliminate problems the device may have under normal operation. - Cannot take pictures/record video Check if there is enough free space on the microSD card and if it is not blocked. - Spontaneous stop at recording Too many video files stored. - Page 23 Manufacturer Shenzhen Vonda Tech., Ltd. 502, Bldg E, East Zone, Shangxue Industrial Park, Bantian District, Shenzhen, China Made in China Developed by NEOLINE Official site: www.neoline.ru Technical support: support@neoline.ru Warranty: 12 months Service life: 36 months 5VDC, 2.1A Operating temperature: -10˚to + +70˚...
