Physical buttons on the M100
The four physical buttons on the M100 can also be used to interface with the M100.
At the desktop the volume up and down button navigates around your various
application icons.
Natively these buttons are used like the standard android buttons on a phone; volume
up and down, home and the power button. Any given application can remap these
buttons as desired.
M100 Smart Glasses Manager
The M100 application manager not only helps to manage your applications on the
M100 and is the tool for updating and loading new applications onto your M100, it is
also a user interface to the M100 with a keyboard and mouse implementation. See
above for more information.

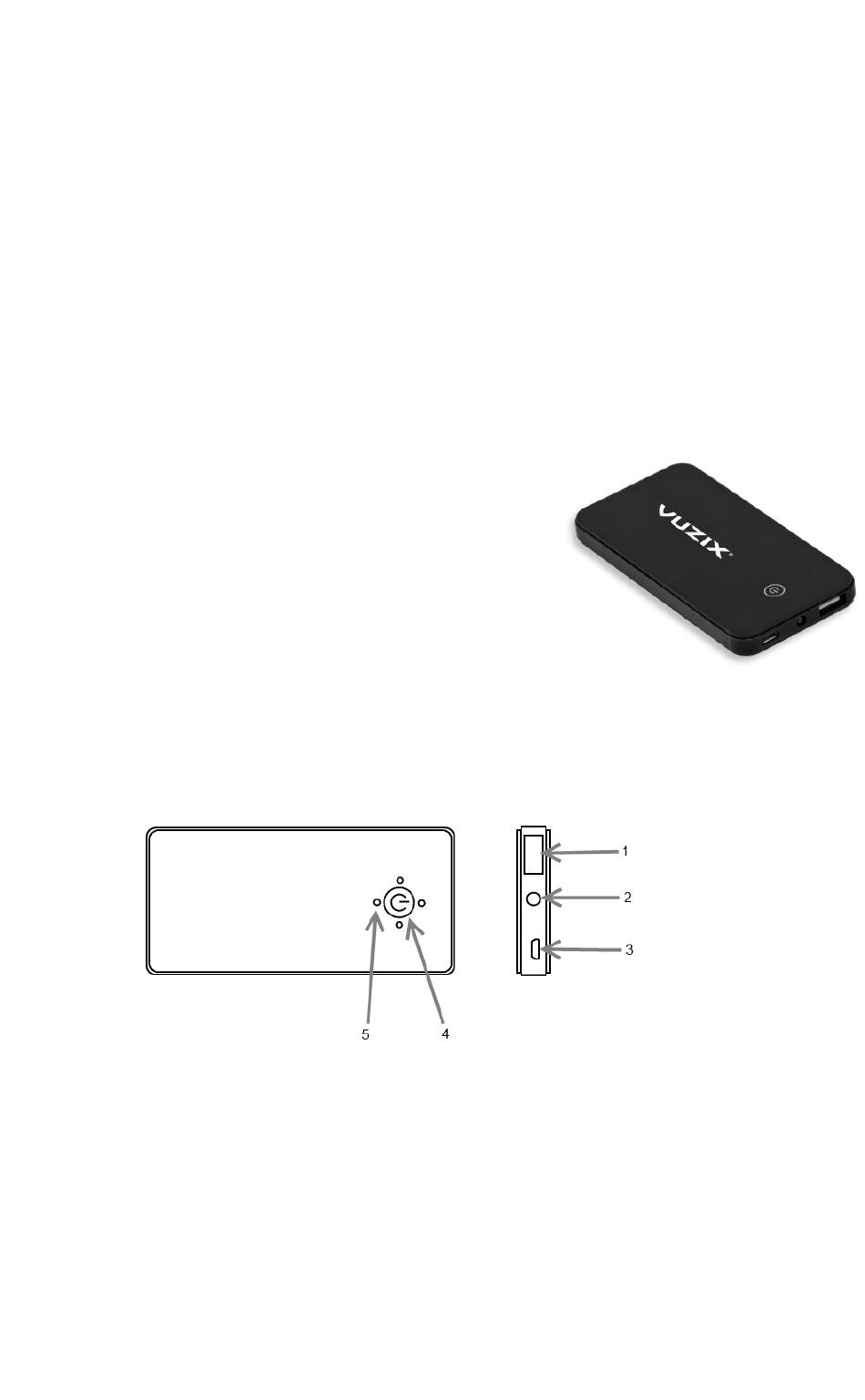

PowerPak 3800
Because Vuzix anticipates that Enterprise users will
want to perform heavy duty tasks with longer running
time applications, the M100 comes equipped with a
3800 mAh battery that can extends its run time 6.5 times
that of the base battery in the M100. Please ensure to
fully charge the PowerPak 3800 before using it.
The battery is connected to the M100 through a light weight USB cable. The cable that
ships with the M100 is designed for right eye dominant users (although it can be used for
either). Custom left eye cables will be available on the Vuzix web site.
1. Power out to the M100 Smart Glasses
2. Multifunction LED light
a.
b.
3. Micro USB input for charging
4. Power on/off
5. Charge level
a.
Vuzix 425PB0001-01
The back/select button runs and/or exits from an application.
Press Power for 2 seconds to turn on and off
Press twice for flashing
Press Power once to activate
