INTRODUCTION
The new M300 represents the next evolution of Vuzix Smart Glasses design specifically for enterprise use,
providing easy access to information, data collection and more. Improve existing workflows and open new
opportunities in industrial, medical, retail, supply chain, remote help desk, and other aspects of your business.
The new M300 design is born from real world user feedback and industry requirements culminating from over 2
years of productive use of the workhorse Vuzix M100 Smart Glasses predecessor.
M300 AT A GLANCE

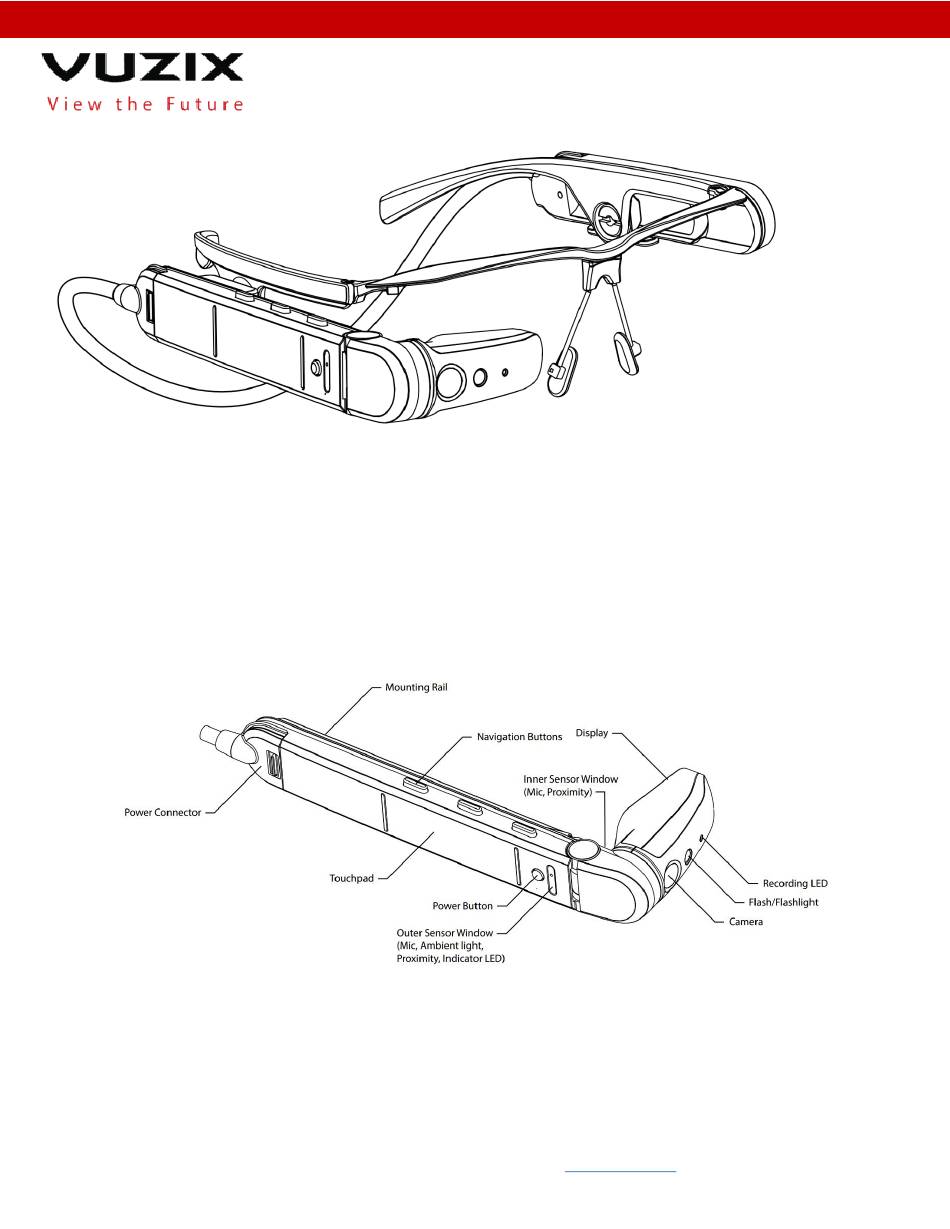

Device Diagram
HARDWARE SETUP
Before Using the M300
The M300 battery pack should be fully charged and the unit assembled prior to first time use, see the
Assembly and Charging sections below for further detail.
25 Hendrix Road, Suite A, West Henrietta NY, 14620 I P 585 359 5900 I F 585 359 4172 I E
contact@vuzix.com
I www.vuzix.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vuzix M300
Summary of Contents for Vuzix M300
- Page 1 HARDWARE SETUP Before Using the M300 The M300 battery pack should be fully charged and the unit assembled prior to first time use, see the Assembly and Charging sections below for further detail. 25 Hendrix Road, Suite A, West Henrietta NY, 14620 I P 585 359 5900 I F 585 359 4172 I E contact@vuzix.com...
- Page 2 Assembly To assemble the M300, first mount the main unit and battery pod to the frame by sliding into the c- channel mounting clips. Then, simply connect the power cable to the main unit and battery, as illustrated below. Charging To charge the M300, connect the included Micro-USB cable to the battery pod via the port on the rear of the battery.
- Page 3 Display Adjustment The display of the M300 can be rotated on two separate axes, as indicated in the diagram below. In addition, the entire main unit can be rotated on the temple mount of degrees.
- Page 4 The M300 features a sophisticated voice control engine, supporting a variety of languages. M300 Software The M300 is running a Vuzix custom build of Android 6.0 Marshmallow. Our Android OS can be updated Over the Air, via our System File Manager, and for more experienced users, via ADB (Android Debug Bridge).
- Page 5 If the M300 will not power on despite the battery pod being fully charged, first disconnect both ends of the M300 power cable, press and hold the power button for a full 10 seconds to ensure that the device is in fact fully shut down, then reconnect the cable to the battery pod and main unit and attempt to power on the device again.
- Page 6 Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The M300 is tested at its highest transmission levels and placed in a position that simulates use against the head with no separation. To minimize exposure to RF energy, use a hands-free option to maintain separation between the device and your head.
