- Page 1 Wrap 1200DX User Guide English Edition ®...
-
Page 2: Table Of Contents
WRAP 1200DX INTRODUCTION Overview System Requirements Requirement and Compatibility Notations Downloads & Updates INSTALLATION & SETUP Step 1: Charging the Controller Charging Step 2: Connecting Accessories Earphones Step 3: Connecting To A Host Device ... - Page 3 OPTIONAL ACCESSORIES AND ADD-ONS Wrap Tracker Wrap Lightshield Lens Cover Replacement Lens Cover Removal Lens Cover Installation ® MHL Adapter – Micro USB to HDMI Connecting a MHL Adapter Travel & Carry Cases ...
- Page 4 Read the Safety and Warranty information before proceeding.
-
Page 5: Wrap 1200Dx Introduction

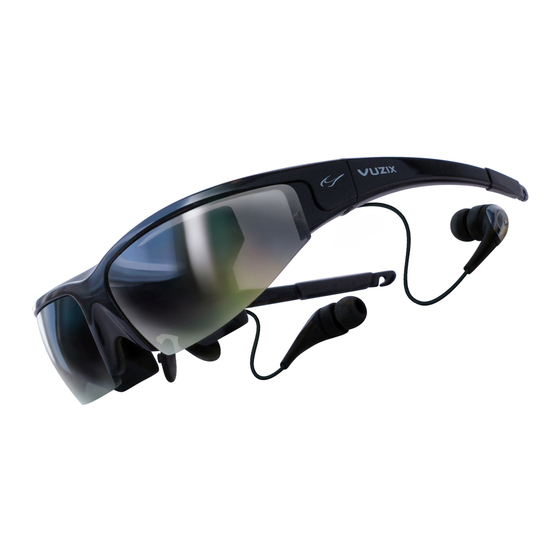

An HMDI® interface provides compatibility with virtually any HDMI equipped video source, including 3D Blu-ray DVD players. The WRAP 1200DX provides a 16:9 WVGA display, capable of displaying 2D or 3D video, removable stereo earphones and a Controller with a rechargeable battery and HDMI (with 3D) connectivity. -
Page 6: Requirement And Compatibility Notations
Typical examples include a personal computer or mobile device such as a smartphone or tablet. The Wrap 1200DX has been demonstrated to work with a broad array of • devices that incorporate HDMI technology. Compatibility with all devices, cables and content cannot be guaranteed. -
Page 7: Installation & Setup
Controller’s battery. Prior to First Use Prior to using the Wrap 1200DX its battery must charged for a minimum of • A USB power supply four (4) hours, using a USB power supply providing a minimum of 0.5 Amps providing 1.0 Amps or... -
Page 8: Step 2: Connecting Accessories
Allow the Controller to charge for a minimum of 4 hours prior to its first use. § Earphones Windows based PCs automatically detect Be sure to adjust the volume to a safe and comfortable level before inserting the new speaker earphones into your ears. -
Page 9: Step 4: Adjustment & Configuration
If no video signal is detected for a period exceeding 30 seconds, the eyewear display will turn off to conserve power. Video Display The WRAP 1200DX does not require any configuration for displaying 2D video from most devices providing HDMI technology. Computer connections may require additional configuration to enable the eyewear to function as an external monitor, displaying a duplicate image to that shown on the primary computer monitor. -
Page 10: Audio
Audio The WRAP 1200DX is equipped with removable stereo earphones. Small, medium and large noise-isolation rings are included. If an alternate audio Press the plus (+) or minus (-) button on the Controller to adjust the volume. § system is used, volume... -
Page 11: Accutilt
Accutilt Display Angle Adjustment The angle of your displays can also impact their clarity. Vuzix eyewear is equipped with a patented Accutilt system that enables the display to be to be tilted up or down by up to 15 degrees. -
Page 12: Controller & Osd
The WRAP 1200DX Controller provides access to audio controls as well as the OSD, a menu system for controlling the eyewear’s On-Screen Display (OSD) options. Volume and the OSD options are managed through the four buttons on the Controller. Power & Menu Powers up the video eyewear and enable its on-screen display menu (OSD). -
Page 13: Display Mode
720P 3D 2D S T/B The above image displays a Windows desktop in the background. The image shown in your eyewear will vary depending the host device used and the current menu selection. The display resolution is displayed in the top left corner, along with the current display mode. -
Page 14: Eyewear Reference
Most HDMI devices do not require display configuration adjustment when connected to the Wrap 1200DX. Some computer systems may require adjustments to their display settings to enable the Wrap 1200DX as second or external display. The computer must be configured to support the Wrap 1200DX as an external monitor, duplication its desktop or laptop monitor. -
Page 15: Nose Bridge
The WRAP 1200DX’s nose bridge and pads are adjustable. For the best viewing experience your displays should be centered in front of your eyes. By sliding the nose bridge assembly’s stem in or out of the display module you can adjust the resting... -
Page 16: Accutilt Adjustment
Repeat the process to adjust the other display. § Your WRAP 1200DX is equipped with a patented view angle adjustment called “Accutilt”. The mechanism allows you to rotate and tilt the display module up and down approximately 15° to achieve the best quality display. -
Page 17: Windows - Lost Audio
Windows Control Panel to select another speaker system. A tether strap or lanyard is provided for those unaccustomed to wearing glasses or who are moving around while wearing the WRAP 1200DX. The tether will help secure (but not prevent) it from falling off and possible damaged. -
Page 18: Optional Accessories And Add-Ons
The Wrap tracker plugs into a small port on the Wrap 1200DX and connects to a Windows based PC through the Wrap Controller’s Mini-USB port and cable. Vuzix VR Manager software is included to enable tracker calibration and add VR support in a broad number of Windows based applications. -
Page 19: Lens Cover Replacement
Go to the Vuzix website for more information on the Wrap Lightshield. Your WRAP 1200DX includes a tinted pair of lens covers. Optional replacement colored lens covers (Shades) are available for purchase from the Vuzix website. Lens Cover Removal With the eyewear upside down, grasp the frame in both hands with your thumbs §... -
Page 20: Mhl Adapter - Micro Usb To Hdmi
USB connector and converts it additional 5-pin to to a HDMI signal for use on supported devices, such Vuzix eyewear equipped with 11-pin Micro USB an HDMI compatible Controller. The signal remains in digital format throughout Adapter for MHL the conversion process, avoiding quality is lost. -
Page 21: Connecting A Mhl Adapter
Galaxy S III (GT-i9300)* One XL Optimus 4X HD Verizon Galaxy Nexus LTE One X Optimus LTE II Sprint Galaxy Nexus One S Optimus LTE Tag Galaxy Nexus (i9250) EVO 4G LTE Optimus 3D Max AT&T Galaxy Note LTE 5.3" Raider Optimus 4X HD Galaxy Note 5.3"... - Page 22 § Connect a HDMI cable between the HDMI port on the MHL Adapter and the eyewear’s Controller.
-
Page 23: Travel & Carry Cases
An assortment of travel and carry cases are available for your Wrap eyewear. Choose the size and finish that best suits your needs and style. Executive Leather Carry Case Vuzix Travel Case... -
Page 24: Cleaning
Your eyewear is virtually maintenance free, requiring only occasional cleaning with a soft microfiber cloth. Do not spray cleaners onto the eyewear or any of its components or immerse them in water. If required, spray a small amount of optical lens cleaner on a microfiber cloth and use that to clean stubborn marks or oily film. -
Page 25: Support Services
United Kingdom, Europe, Russia, Middle East, and Africa United States: United States, Canada, Central & South America, Asia (other than Japan), Australia, and New Zealand Product originating from the United Kingdom, please contact: Vuzix manufactures Corporate Website: www.vuzix.com/uksite several models of Email Customer Support: vuzix@tmti.com... -
Page 26: Waste Electrical & Electronic Equipment
1. The equipment that you bought has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. 2. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. - Page 27 Vuzix, the Vuzix logo, View the Future, Wrap and STAR are trademarks of Vuzix Corporation registered in the U.S. and other countries. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
