Summary of Contents for Vuzix M300XL

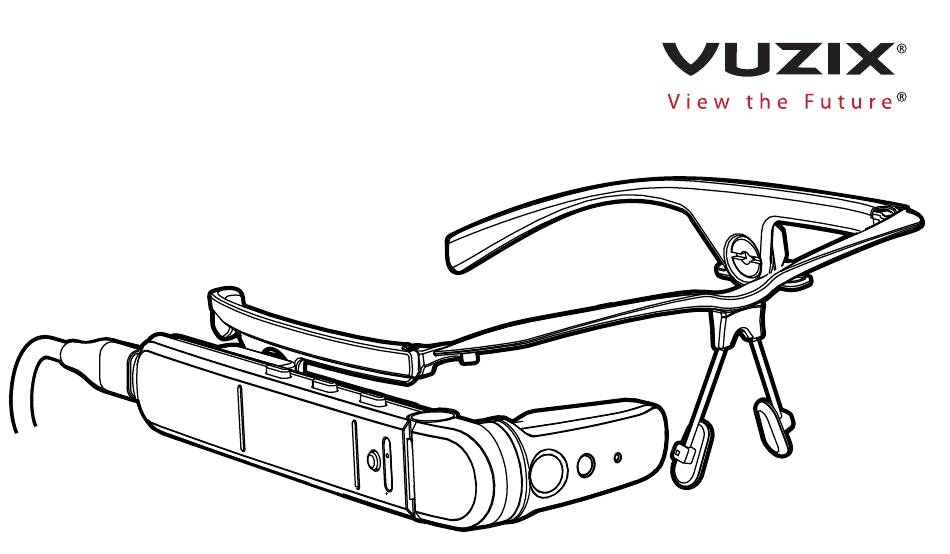

  • Page 1 M300XL USER GUIDE v2.0...
  • Page 2 CONGRATULATIONS ON YOUR NEW VUZIX M300XL SMART GLASSES SYSTEM THE NEXT GENERATION OF SMART GLASSES FOR HANDS-FREE MOBILE COMPUTING Your M300XL Smart Glasses System is an ergonomically designed, wearable Android-based computer with Wi-Fi connectivity, voice-command functionality and HD camera — right out of the box, including: •...
  • Page 3 VUZIX battery pack or standard USB battery pack. HOT SWAPPABLE BATTERY CAPABILITY The M300XL’s unique design features a back-up battery embedded in the main unit to allow up to 60 seconds for swapping a discharged battery pod with a fully charged replacement.
  • Page 4 3. To turn on, press and hold Power Button on the Battery Pod until LEDs light up. 2. Charge fully. 4. To turn off, press and hold Power Button until blue LEDs turn off. NOTE: Green M300XL Status LED will go off after 1-2 minutes.
  • Page 5: Determine Your Dominant Eye

    04 to connect the power cable between the main unit and battery pod. When ready to wear your M300XL Smart Glasses, lift the power cable over your head to rest on your shoulders for added convenience as a ready-to-wear lanyard.
  • Page 6 fig. 3...
  • Page 7 Adjust the display until you can comfortably view the full image (as shown in figure 3). Additional mounting options — including frames with prescription lenses, safety frames, hard hat and headband mounts — can be found online at Vuzix.com under Products > M300XL Smart Glasses > Accessories.
  • Page 8 NAVIGATING THE M300XL Mounting Rail Inner Sensor Window (Mic, Proximity) For optimal ease of use, the M300XL Smart Glasses Navigation Buttons Back Center Front System offers multiple modes Display of interaction, including touch control buttons, touchpad or speech recognition using built-in dual noise-cancelling microphones.
  • Page 9: Voice Commands

    To enable speech recognition, toggle on in Short press for primary functions: Settings. The M300XL Speech Recognition front: forward navigation can now be activated with the “Hello Vuzix” center: back navigation keyword. The M300XL will listen for voice commands for 15 seconds by default. back:...
  • Page 10 Open Scanner from the main carousel. The easiest way to connect to Wi-Fi is by scanning a QR code—QR codes can be securely created using www.vuzix.com/wifiQR and scanned directly from your phone or computer screen. Center available QR code in viewfinder to scan.
  • Page 11: Preinstalled Applications

    PREINSTALLED APPLICATIONS APPLICATION MENUS The M300XL comes preinstalled with The M300XL Application Carousel has multiple a number of standard applications, sections for helping organize and easily access such as Camera, Gallery and QR and your most commonly used M300XL applications.
  • Page 12: Registering Your Device

    Register for or log onto your Vuzix Applications can be installed on the App Store account from a computer M300XL via the Vuzix App Store. App or phone at appstore.vuzix.com Store will install and manage applications via an OTA (Over the Air) mechanism, and Follow the instructions on the website will require Wi-Fi connectivity.
  • Page 13 GETTING THE LATEST UPDATES The M300XL will automatically check for updates once it is connected to Wi-Fi. Click Update on the following pop-up. NOTE: If your corporate firewall prevents access to the external website, your system administrator may provide additional settings...
  • Page 14 [THIS PAGE INTENTIONALLY LEFT BLANK]...
  • Page 15 [THIS PAGE INTENTIONALLY LEFT BLANK]...
  • Page 16: Learning More

    FOR MORE INFORMATION ON THE M300XL AND ACCESSORIES, VISIT: vuzix.com | vuzix.eu | vuzix.jp ©Vuzix 2019. This user guide is subject to change. Please read the safety section of the user’s manual before using this product. All trademarks belong to respective owners.
