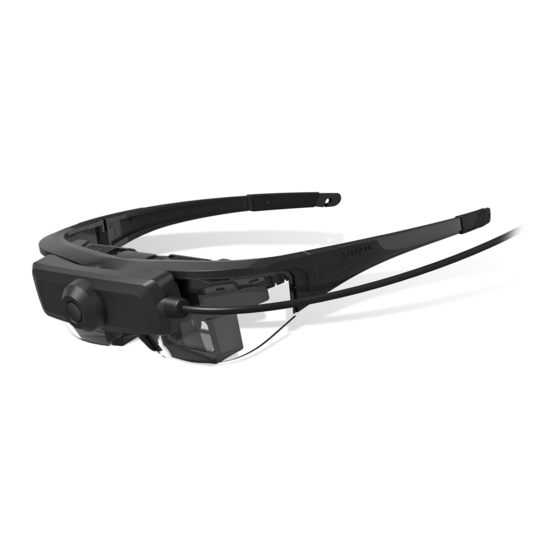

Vuzix STAR 1200 User Manual
  1. Manuals
  2. Brands
  3. Vuzix Manuals
  4. Smart Glasses
  5. Star 1200
  6. User manual

Vuzix STAR 1200 User Manual

Augmented reality systems
Hide thumbs Also See for STAR 1200:
Table of Contents

Advertisement

Quick Links

Download this manual
STAR 1200 & 1200XL
Augmented Reality Systems
User Guide
VUZIX CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR 1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vuzix STAR 1200

Summary of Contents for Vuzix STAR 1200

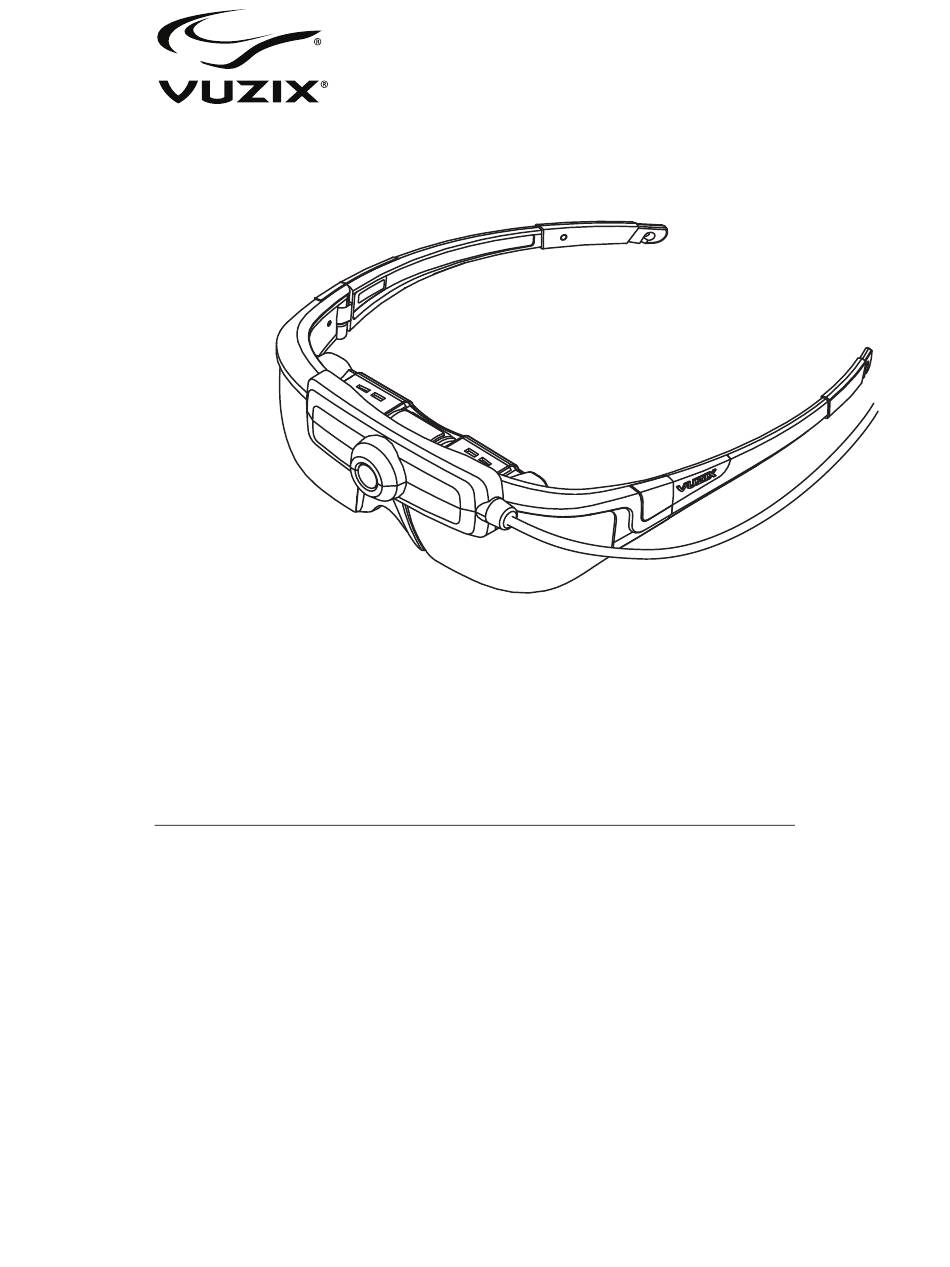

  • Page 1 STAR 1200 & 1200XL Augmented Reality Systems User Guide VUZIX CORPORATION...
  • Page 2 VUZIX CORPORATION STAR 1200 & 1200XL – User Guide © 2012 Vuzix Corporation 2166 Brighton Henrietta Town Line Road Rochester, New York 14623 Phone: 585.359.5900 Fax: 585.359.4172 www.vuzix.com...

  • Page 3: Table Of Contents

    Tether Strap ................. 39 Wrap Tracker ............... 40 5. D & S ........42 EVELOPER OOLS UPPORT Vuzix VR/AR SDK – Windows version ........ 42 Acquiring Vuzix VR/AR SDK ..........43 6. E & S .......... 44 YEWEAR UPPORT Cleaning ..............44 Support Services ............
  • Page 4 6. Immersive video, whether viewed on a regular TV, a movie theater screen or a VUZIX video display, can potentially have adverse effects on the user, including: motion sickness, perceptual after effects, disorientation, decreased postural stability, and eye strain.
  • Page 5 10. Do not disassemble this product. If service work is required, contact VUZIX using the Support contact information shown in this manual. 11. Do not pull or yank on the cable, kink any of the cables or tie them in sharp or tight knots.
  • Page 6 Vuzix’s entire liability and Your exclusive remedy for any breach of warranty shall be, at Vuzix’ option, (1) to repair or replace all or part of the hardware, 2) exchange the hardware with a product that is new or which...
  • Page 7 Vuzix may direct with a copy of the sales receipt or dated itemized receipt. Except where prohibited by applicable law, all shipping and handling costs associated with transport (including packaging) for warranty service shall be at Your expense. Vuzix may, at its option, use new or refurbished or used parts in good working condition to repair or replace any hardware product.
  • Page 8 Your country and its local address. You may also write to: Vuzix Sales Support, 75 Town Centre Drive, Rochester, NY 14623, USA. VUZIX SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS,...

  • Page 9: Star 1200 & 1200Xl Overview

    STAR 1200 through this User Guide. System Requirements & Compatibility A STAR 1200 is a modular design able to connect to and work with a number of host devices. Due to the ports and internal support provided by...
  • Page 10 Key Product Components: • Video Display • Controller • Audio System • Head Tracker • Video Camera Compatibility: • Windows 7, Vista and XP • Video card able to support an second monitor • VGA compatible video port • USB 2.0 port (2) Each of the “Key Product Components”...
  • Page 11 Two Controllers are provided with the STAR 1200. A VGA Controller enables connection to personal computers and the PowerPak+ Controller enables connection to host devices providing composite and component audio/video connections. The VGA Controller connects to a VGA and a USB 2.0 port. A VGA compliant adapter can be used for connection to other video port formats.
  • Page 12 PowerPak+ Controller connection. Software applications must be explicitly enabled to support a Wrap Tracker. A Vuzix SDK is available to aid in the addition of head tracking support in Windows software. A 1080p HD camera is provided with the STAR 1200. This camera is UVC (Universal Video Class) compliant, meaning it will work with Windows, Mac and Linux based PCs without additional drivers.
  • Page 13 Autodesk 3ds Max scenes and content to be transformed into 3D AR content. Tip: The STAR 1200 is compatible with virtually all of the leading AR authoring applications – maxReality is just one of your AR authoring options.
  • Page 14 1080p HD Camera VGA Controller PowerPak+ Controller Wrap Tracker Digital Download Instructions Safety & Warranty Booklet STAR 1200 Quick Start Guide maxReality Product License Key iPod/iPhone Cable Adapter USB Cable, Mini - B Composite Cable, female RCA Wrap 4-band Cable Adapter...
  • Page 15 Marker Library PDF maxReality Viewer - Key Commands Reference Sheet Software Updates and Upgrades Vuzix provides two web locations for downloading software and documentation. The Digital Distribution web page (www.vuzix.com/DD) provides complete packages of the current versions of all software and documentation the specific product.

  • Page 16: Installation & Setup

    STAR 1200 Augmented Reality System on a Windows based PC, the most common operating environment for this AR eyewear model. Note: If you have not already done so, download the STAR 1200 software and documentation package from www.vuxiz.com/dd and read the Safety and Warranty information provided with this product before proceeding.

  • Page 17: Step 2: Hardware Connections

    and right directional arrows (< >) on the Controller. If an alternate audio system is used, volume is provided through that system’s controls. Note: When you connect your STAR system a Windows based computer Windows will detect a new USB audio system and automatically configure your computer to output sound to the Wrap earphones.
  • Page 18 See the Vuzix website (www.vuzix.com) for additional information. This Controller can be used to connect to other operating systems though some features and capabilities of the STAR 1200 may not be available or supported on other operating systems. VGA Display Connect the lead from the video eyewear to the Controller, as shown above.
  • Page 19 Your computer display must be configured correctly to be compatible with the STAR displays. The specific steps required to configure the display options will vary from one operating system to another and even between different versions of Windows. The following steps demonstrate configuring Windows 7 for a 1280 x 720 display resolution –...
  • Page 20 Note: 640x480 may not work on some Windows XP systems. PowerPak+ Controller Your STAR 1200 includes a Wrap PowerPak + Controller. This is a rechargeable lithium-ion Controller supporting composite and component video connections. Note: The PowerPak + Controller does not support the tracker data communications.

  • Page 21: Step 3: Adjustment

    Note: Charge the PowerPak for a minimum of four (4) hours before using it. The Vuzix icon will flash while the PowerPak is charging. Allow it to fully charge before connecting it to your AV source and Wrap video eyewear.
  • Page 22 While viewing an image through the STAR displays, close one eye and slide the focus adjuster for the corresponding display left and right to achieve the sharpest image. Repeat the above step for the other eye and display. Eye Separation (STAR 1200XL only) The distance between your eyes or InterPupillary Distance (IPD) varies from one person to another.

  • Page 23: Step 4: Software Installation

    Adjust the strap synch for a comfortable and secure fit. Step 4: Software Installation There are two software installers included in the STAR 1200 software and documentation package – VR Manager and maxReality. VR Manager is a software application used to calibrate the head tracker and enable head-tracking and 3D stereoscopic video in virtual reality applications.
  • Page 24 Tip: The STAR 1200 works with virtually all of the most popular AR content authoring system – not just maxReality. VR Manager Installation VR manager is a 32-bit Windows application that will run on 32 or 64-bit XP, Vista and 7 version of Microsoft Windows operating system. Its installation is vital to enabling tracker calibration on Windows system.
  • Page 25 When you launch Autodesk 3DS Max or 3DS Max Design, a license authentication window will appear. Enter the Product Key, provided on a card included with your STAR 1200, into the “Product Key” field at the top of the license authentication window.

  • Page 26: Step 5: Tracker Calibration

    Utilities Panel. Step 5: Tracker Calibration The STAR 1200 is equipped with a Wrap Tracker, a 3 degree of freedom (DOF) IMU (Inertial Measurement Unit), more commonly known as a head tracker. Most tracker enabled applications support pitch, yaw and roll.
  • Page 27 Press the “Begin Calibration” button. Tip: For the most accurate calibration, minimize earphone movement and position your eyewear as close as possible to the position it will be in when used, upright and facing your desktop computer monitor. Rotate your eyewear fully through each of the three axes. Pitch Roll This process captures tracker data through its full range of movement.
  • Page 28 Put on your eyewear positioning them as they will normally be used – upright, at eye level and facing your computer – and then press the “Set Zero” button. The Set Zero button establishes the Tracker’s home or centered position. As you move your head you will see the indicators and values in the Yaw, Pitch and Roll indicators reflect movement relative to that centered position.

  • Page 29: Control Button & On Screen Display

    Chapter The STAR 1200 provides an On Screen Display (OSD) for adjusting and configuring your STAR display and audio. The layout and options provided by the OSD may vary when you are using different Controllers, but their options and the function of the Controller buttons are similar.
  • Page 30 Adjustment Buttons OSD Displayed: Adjusts the selected OSD option. OSD Not Displayed: Adjusts Wrap earphone volume. OSD Off & Toggle View Button OSD Displayed: Turns off OSD display. OSD Not Displayed: Double-press to toggle to the previous 2D or 3D mode setting.

  • Page 31: Powerpak+ Controller

    OSD Menu Button OSD Displayed: Press to cycle through OSD selections. OSD Not Displayed: Press to turn on eyewear and display the OSD. Press and hold to turn off the eyewear. PowerPak+ Controller The Control Buttons on the PowerPak are slightly different from those on a VGA Controller.

  • Page 32: Osd Display Options

    Note: Charge the PowerPak for a minimum of four (4) hours before using it. The Vuzix icon will flash while the PowerPak is charging. Allow it to fully charge before connecting it to your AV source and Wrap video eyewear.
  • Page 33 Note: If you are using a different model of Controller other than the VGA version, the OSD options and controls may be different. OSD Presets Preset configurations allow for easy one-step adjustment of your video eyewear for common viewing conditions. A “User”...
  • Page 34 !" #" $ $ &'( &') )'* Format Selection Your Vuzix video eyewear supports standard 2D video and multiple formats of stereoscopic 3D content. This option is used for displaying all standard 2D content. It is the default format option.
  • Page 35     Auto 3D Vuzix has developed a watermark technology that, when placed in a 3D video, enables Vuzix eyewear to identify and automatically reconfigure to match the content’s 3D format and view options. Note: By default the Auto 3D option is turned off.

  • Page 36: Star Hardware

    Windows based PC, including Windows XP, Vista, and Windows 7, both 32-bit and 64-bit versions. Note A STAR 1200 may work with other operating systems such as a Mac or Linux but some functionality may be limited. These alternate operating systems are not...
  • Page 37 Display Remounting The STAR 1200 is a unique product and user feedback has indicated it will be used in a variety of unprecedented ways. The display assembly is cradled in a pivot ring, similar to that shown in the...

  • Page 38: Nose Bridge

    Nose Bridge Your STAR 1200’s nose bridge and pads are adjustable. For the best viewing experience your displays should be centered in front of your eyes. By sliding the nose bridge assembly’s stem in or out of the display module you can adjust the resting height of the displays.

  • Page 39: Focus Adjustment

    (STAR 1200 only) Your STAR video eyewear can be worn over many styles of prescription glasses. The STAR 1200 (not available on STAR 1200XL) also provides independent left and right eye focal adjust from +2 to -4 diopters. To adjust the focus: Play some video content that provides a sharp and clear image.

  • Page 40: Accutilt Adjustment

    Accutilt Adjustment Your Wrap 1200 is equipped with a patented view angle adjustment called “Accutilt”. The Accutilt mechanism allows you to rotating and tilt the display module up and down approximately 15° to achieve the best quality display. To adjust the viewing angle: Pivot the display assembly to achieve the best quality display.

  • Page 41: Wrap Noise-Isolating Earphones

    Wrap Noise-Isolating Earphones The noise isolating earphones provided with the STAR 1200 are removable, allowing the STAR to be used with or without the earphones attached. Both earphones are the same and interchangeable for either the left or right side.

  • Page 42: Wrap Tracker

    Those unaccustomed to wearing glasses or who are moving around may wish to secure the STAR to prevent it falling off and possibly damaged. A tether strap or lanyard is provided. The ends of the tether strap loop over the hooks on each stem of the eyewear. Wrap Tracker The Wrap Tracker is a 3-DOF (Degrees of Freedom) tracker with compass.
  • Page 43 Software requires specific Vuzix tracker support to read and utilize the tracker data. This can be added into software using an SDK provided royalty free by Vuzix. Note: A royalty free Software Developer Kit (SDK) is available to assist software developers in enabling native support for the Wrap Tracker 6TC in their applications.

  • Page 44: Developer Tools & Support

    Vuzix VR/AR SDK – Windows version The Vuzix VR/AR SDK (Software Development Kit) is a set of development resources and examples that demonstrate the application of native support for features and capabilities provided by certain models of Vuzix video eyewear.

  • Page 45: Acquiring Vuzix Vr/Ar Sdk

    SDK. Support for the AR camera and ALVAR fiduciary markers provided by the Vuzix SDK in its AR Extension, packed in a separate installer. It demonstrates the use of OpenCV for camera support. Acquiring Vuzix VR/AR SDK The Vuzix VR/AR SDK is available for download from the Vuzix website’s Support/Developer Program web page:...

  • Page 46: Eyewear Care & Support

    Chapter The STAR 1200 is generally maintenance free. Occasionally it may require a little cleaning and possibly technical support. Cleaning Your Wrap eyewear is virtually maintenance free, requiring only occasional cleaning with a soft microfiber cloth. Do not spray cleaners onto the eyewear or any of its components or immerse them in water.
  • Page 47 For product support and information please contact Vuzix in the region from which your product originated. For products provided from the Vuzix US office and distribution center: • Corporate website: www.vuzix.com • Email Customer Support: technical_support@vuzix.com • Customer Helpline: (800) 436-7838 •...
  • Page 48 Commonly we tend to present our own analysis of the problem or only the symptoms we feel are relevant. By not including all the symptoms we sometime leave out vital clues that could more quickly lead to a solution.

  • Page 49: Miscellaneous

    Chapter FCC Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 50 reuse or recycle most of the materials of your end life equipment in a sound way. 3. The crossed-out wheeled bin symbol invites you to use those systems. 4. If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration.
  • Page 51 Apple Inc., registered in the U.S. and other countries. Vuzix, the Vuzix logo, View the Future and Wrap are trademarks of Vuzix Corporation registered in the U.S. and other countries. © 2012 Vuzix Corporation. All rights reserved.
