- Page 1 M-Series Wearing Guide...

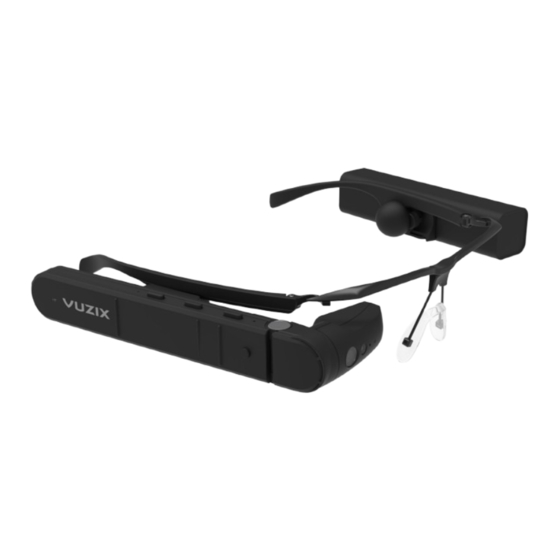

- Page 2 M-Series The most trusted line of smart glasses in the industry Built for all-day wear, easy to operate and ruggedized for any enterprise use case, Vuzix M-Series smart glasses transform competent teams into productivity all stars.
- Page 3 M-Series • Android 11 OS with security patches and 2024 roadmap for Android 13 update • MDM certified for enterprise deployments • 68 grams / 90 grams per unit; total weight with battery averages 150 grams • Multiple mounting solutions to accommodate left or right eye dominance •...
- Page 4 Field of view Android 11 OLED 17° Qualcomm® Snapdragon Power Hot-swappable Camera 12.8MP, 4K, 30fps USB-C batteries Storage Connectivity 64GB WiFi 802.11 b/g/ac Bluetooth 5.0LE Display Field of view Vuzix Ultra-thin 28° Waveguide Rating IP67 water and dust, 2 meter drop test...
- Page 5 Ergonomic Mounting Options For Any Enviroment Left or Right Prescriptions Hard Hat Safety Glasses Headband Eye Mountable Universal hat mounting clips fit most baseball hats, visors and safety bump caps Baseball Caps Visors Safety Bump Caps...
- Page 6 M-Series Power Options 750mAh All Weather 3200mAh Xtreme 4800mAh Extended 10,500mAH Power Bank Weather Power Bank Use Power Bank External Battery • Video streaming up to 2.5 hours • Video streaming up to 5 hours • Video streaming up to 7 hours •...
- Page 7 Find the Dominant Eye For the best image quality, wear Right-eye Dominant your Vuzix device on the Slide the device onto the dominant side. First stretch your right side of your selected arms out and make a triangle. mounting accessory with Then frame an object in the the buttons facing up.
-
Page 8: Adjusting Fit
Adjusting Fit To place the display into an optimum viewing location and angle, the device can be slid forward/backward or upward/downward on the mount clip, and the display itself rotates as well. The front assembly of the M4000 may be rotated up or down to provide optimum viewing and/or recording angle for the wearer. - Page 9 Assembly Plug the USB-C to USB-C Slide the device onto the Slide the battery onto the clip cable from the battery to the headband clip, facing forward on the opposiite side with the device.vv on your dominant eye side. USB port facing rear. Green = Fully Charged internal battery Charge Solid Red = Battery charge low.
-
Page 10: Controls And Features
Controls & Features Mounting Rail USB-C Port Navigation Buttons Back Center Front Display Power LED Recording LED Touchpad Flash/Flashlight Power Camera Button... - Page 11 Touchpad Two Fingers Tap: Go back or return Hold: Go to Home screen One Finger Swipe: Up to raise volume; Tap: Activate selection down to lower volume Hold: Open menu One Finger Three fingers Swipe: Up/down/right/left to Tap: Turn off screen move selectionv...
-
Page 12: Voice Commands
Back: Activate selection Back: Go back or return Voice Commands M-Series devices can be activated by “Hello Vuzix” To enable voice control, open the Settings menu and navigate when properly configured. The device will listen for to System > Languages & Input > Speech Commands. -
Page 13: Tips And Tricks
Tips & Tricks •Ensure users are aware of their dominant eye. •Batteries can be hot swapped on the fly. Simply This will make the device more comfortable and disconnect the side mounted battery by removing easier to operate. the cable. Replace with a new battery and connect the cable again.
