Page 2

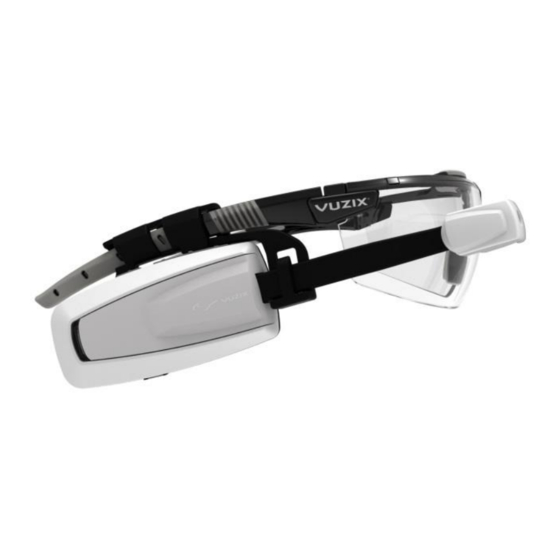

Internet. Vuzix smart glasses offer a wearable visual connection directly to the Cloud, through your smartphone or other compatible connected device, wherever you go. Support This guide provides you with the information you need to get started with your M100 smart glasses. For more information and additional support please visit Vuzix website www.vuzix.com...
Page 3
- The white led will remain solid when the M100 is fully charged and plugged into a power source. - If the M100 is powered on, the user can fully operate the device even when it is connected to an external power source.
Page 4
There are many adjustments that can be made to get the best performance and fitting for each user. Your M100 has been designed to work with or without glasses and can accommodate either left or right eye users. This section describes all of the adjustments available to accommodate this and the varied ergonomics of different users from around the world.
Page 5
15 degrees from center. This allows for the optimum placement of the display eye piece in your vision field from low near the cheek to high near the eyebrow while allowing the eyepiece to be tilted towards the user’s eye. Vuzix 425PB0001-01...
Page 6
It is important to note that there is no focus required for the M100. The M100’s optics has been designed so that the image appears, from a focus perspective, to be about 10 feet away.
Page 7
The M100 application manager not only helps to manage your applications on the M100 and is the tool for updating and loading new applications onto your M100, it is also a user interface to the M100 with a keyboard and mouse implementation.
Page 8
The first time the smart glasses are switched on, they default to pairing mode with a partner device. If the M100 are already paired, your Home desktop page is displayed. To pair your M100 to your smart phone follow the below procedure: Activate Bluetooth on your Smart phone a) From the desktop, press the Applications button to open the App List.
Page 9
D pad functions enabling motion around the desktop and selecting applications to execute. *The gesture engine has not been enabled in this build of the M100 OS. Please visit the Vuzix website periodically for updates as this functionality is enabled. Vuzix 425PB0001-01...
Page 10
The battery is connected to the M100 through a light weight USB cable. The cable that ships with the M100 is designed for right eye dominant users (although it can be used for either). Custom left eye cables will be available on the Vuzix web site.
Page 12
Important Notice For a copy of the latest Safety & Warranty Information, go to the Downloads and Drivers page of the Vuzix web site: http://www.vuzix.com/support/downloads_drivers.html Vuzix and the Vuzix Logo are registered trademarks of Vuzix Corporation. All other trademarks are the property of their respective owners.
