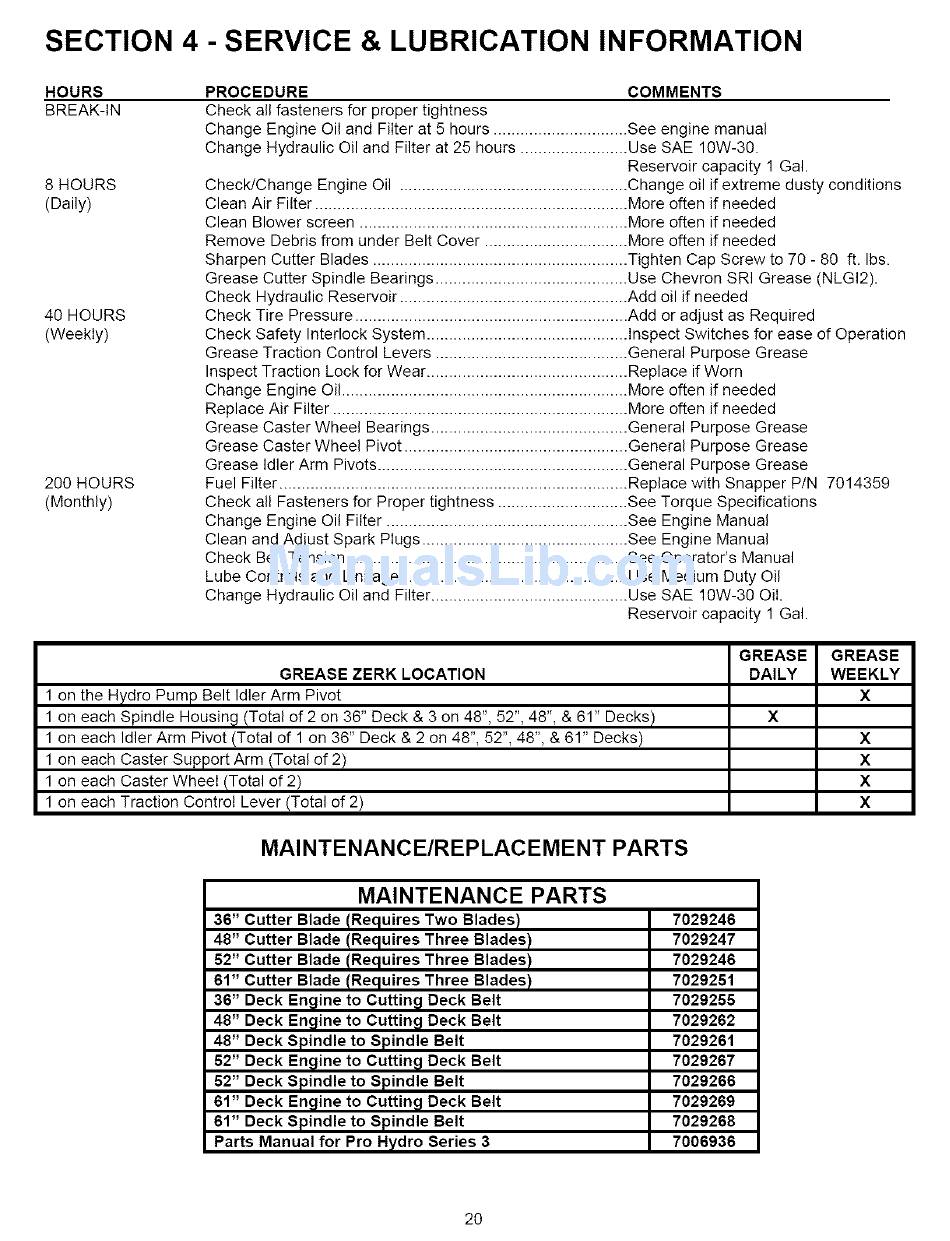

SECTION 4 - SERVICE & LUBRICATION INFORMATION
HOURS
BREAK-IN
8 HOURS
(Daily)
40 HOURS
(Weekly)
200 HOURS
(Monthly)
PROCEDURE COMMENTS
Check all fasteners for proper tightness
Change Engine Oil and Filter at 5 hours .............................. See engine manual
Change Hydraulic Oil and Filter at 25 hours ........................ Use SAE 10W-30.
Reservoir capacity 1 Gal.
Check/Change Engine Oil ................................................... Change oil if extreme dusty conditions
Clean Air Filter ...................................................................... More often if needed
Clean Blower screen ............................................................ More often if needed
Remove Debris from under Belt Cover ................................ More often if needed
Sharpen Cutter Blades ......................................................... Tighten Cap Screw to 70 - 80 ft. Ibs.
Grease Cutter Spindle Bearings ........................................... Use Chevron SRI Grease (NLGI2).
Check Hydraulic Reservoir ................................................... Add oil if needed
Check Tire Pressure ............................................................. Add or adjust as Required
Check Safety Interlock System ............................................. Inspect Switches for ease of Operation
Grease Traction Control Levers ........................................... General Purpose Grease
Inspect Traction Lock for Wear ............................................. Replace if Worn
Change Engine Oil ................................................................ More often if needed
Replace Air Filter .................................................................. More often if needed
Grease Caster Wheel Bearings ............................................ General Purpose Grease
Grease Caster Wheel Pivot .................................................. General Purpose Grease
Grease Idler Arm Pivots ........................................................ General Purpose Grease
Fuel Filter .............................................................................. Replace with Snapper PIN 7014359
Check all Fasteners for Proper tightness ............................. See Torque Specifications
Change Engine Oil Filter ...................................................... See Engine Manual
Clean and Adjust Spark Plugs .............................................. See Engine Manual
Check Belt Tension ............................................................... See Operator's Manual
Lube Controls and Linkages ................................................. Use Medium Duty Oil
Change Hydraulic Oil and Filter ............................................ Use SAE 10W-30 Oil.
Reservoir capacity 1 Gal.
GREASE ZERK LOCATION
1 on the Hydro Pump Belt Idler Arm Pivot
1 on each Spindle Housing ITotal of 2 on 36" Deck & 3 on 48", 52", 48", & 61" Decks)
1 on each Idler Arm Pivot (Total of 1 on 36" Deck & 2 on 48", 52", 48", & 61" Decks)
1 on each Caster Support Arm ITotal of 2)
1 on each Caster Wheel (Total of 2)
1 on each Traction Control Lever (Total of 2)
GREASE
DAILY
X
GREASE
WEEKLY
X
X
X
X
X
MAINTENANCE/REPLACEMENT PARTS
MAINTENANCE PARTS
36 _
48"
52"
61"
36"
48"
48"
52"
52"
61"
61" Deck Spindle to Spindle Belt
Parts Manual for Pro Hydro Series 3
Cutter Blade (Requires Two Blades)
Cutter Blade (Requires Three Blades)
Cutter Blade IRequires Three Blades)
Cutter Blade (Requires Three Blades)
Deck Engine to Cutting Deck Belt
Deck En_line to Cuttin_l Deck Belt
Deck Spindle to Spindle Belt
Deck Engine to Cutting Deck Belt
Deck Spindle to Spindle Belt
Deck En_line to Cuttin_l Deck Belt
7029246
7029247
7029246
7029251
7029255
7029262
7029261
7029267
7029266
7029269
7029268
7006936
2O
