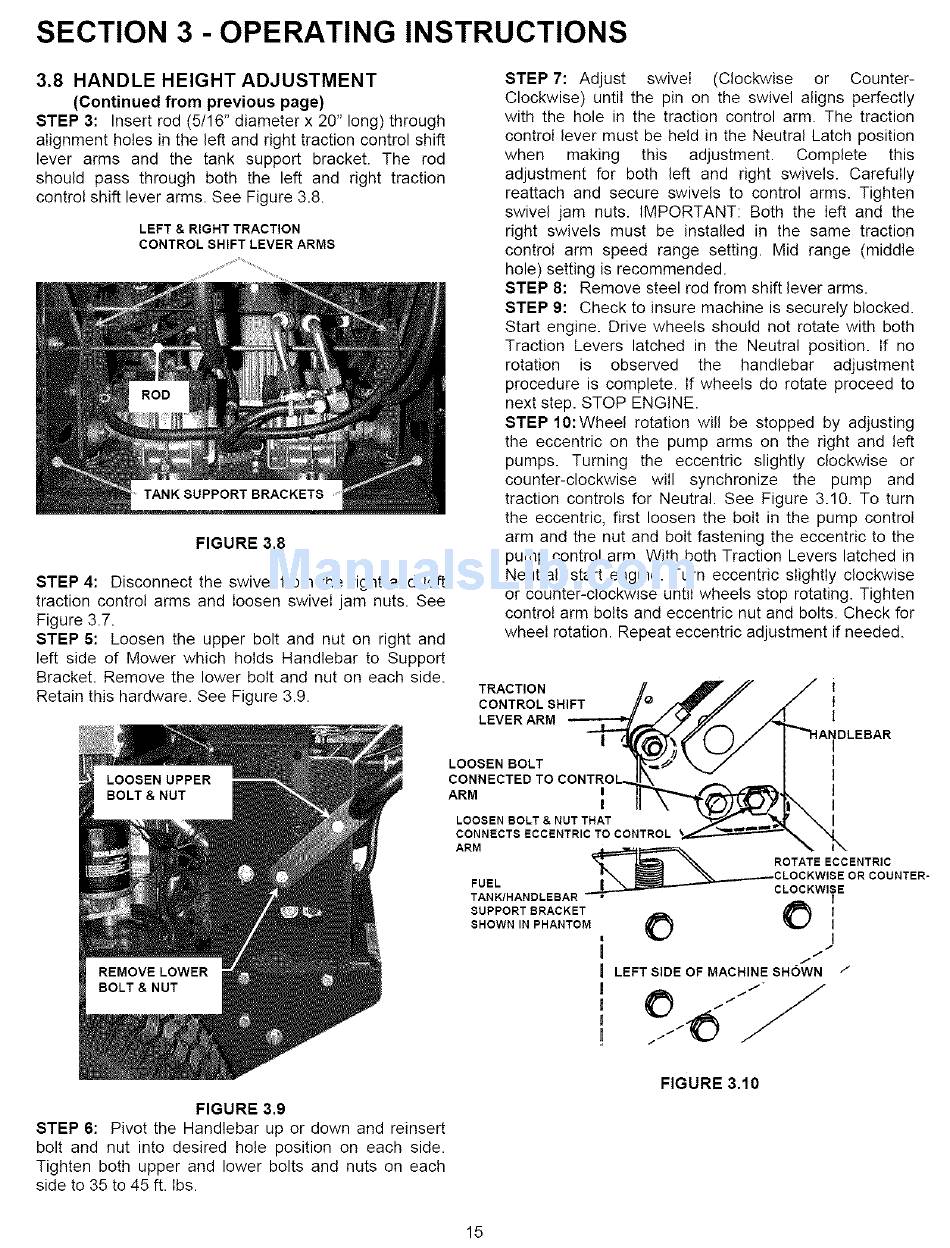

SECTION 3 -OPERATING INSTRUCTIONS
3.8 HANDLE HEIGHT ADJUSTMENT
(Continued from previous page)
STEP 3: Insert rod (5/16" diameter x 20" long) through
alignment holes in the left and right traction control shift
lever arms and the tank support bracket. The rod
should pass through both the left and right traction
control shift lever arms. See Figure 3.8.
LEFT & RIGHT TRACTION
CONTROL SHIFT LEVER ARMS
....TANK SUPPORT BRACKETS
FIGURE 3.8
STEP 4: Disconnect the swivel from the right and left
traction control arms and loosen swivel jam nuts. See
Figure 3.7.
STEP 5: Loosen the upper bolt and nut on right and
left side of Mower which holds Handlebar to Support
Bracket. Remove the lower bolt and nut on each side.
Retain this hardware. See Figure 3.9.
REMOVELOWER
BOLT & NUT
STEP 7: Adjust swivel (Clockwise or Counter-
Clockwise) until the pin on the swivel aligns perfectly
with the hole in the traction control arm. The traction
control lever must be held in the Neutral Latch position
when making this adjustment. Complete this
adjustment for both left and right swivels. Carefully
reattach and secure swivels to control arms. Tighten
swivel jam nuts. IMPORTANT: Both the left and the
right swivels must be installed in the same traction
control arm speed range setting. Mid range (middle
hole) setting is recommended.
STEP 8: Remove steel rod from shift lever arms.
STEP 9: Check to insure machine is securely blocked.
Start engine. Drive wheels should not rotate with both
Traction Levers latched in the Neutral position. If no
rotation is observed the handlebar adjustment
procedure is complete. If wheels do rotate proceed to
next step. STOP ENGINE.
STEP 10:Wheel rotation will be stopped by adjusting
the eccentric on the pump arms on the right and left
pumps. Turning the eccentric slightly clockwise or
counter-clockwise will synchronize the pump and
traction controls for Neutral. See Figure 3.10. To turn
the eccentric, first loosen the bolt in the pump control
arm and the nut and bolt fastening the eccentric to the
pump control arm. With both Traction Levers latched in
Neutral, start engine. Turn eccentric slightly clockwise
or counter-clockwise until wheels stop rotating. Tighten
control arm bolts and eccentric nut and bolts. Check for
wheel rotation. Repeat eccentric adjustment if needed.
TRACTION
CONTROL SHIFT
LEVER ARM
I
LOOSEN BOLT
CONNECTED
ARM I
I
LOOSEN BOLT & NUT THAT
CONNECTS ECCENTRIC TO CONTROL
i
t
1
DLEBAR
I
I
I
I
I
ARM
ROTATE ECCENTRIC
CLOCKWISE OR COUNTER-
FUEL CLOCKWISE
TANK/HANDLEBAR •
SUPPORT BRACKET I
SHOWN IN PHANTOM _ _ '
i .J
/-
[ LEFT SIDE OF MACHINE SHI3WN /
FIGURE 3.9
STEP 6: Pivot the Handlebar up or down and reinsert
bolt and nut into desired hole position on each side.
Tighten both upper and lower bolts and nuts on each
side to 35 to 45 ft. Ibs.
FIGURE 3.10
