Snapper SPA361 Parts Manual

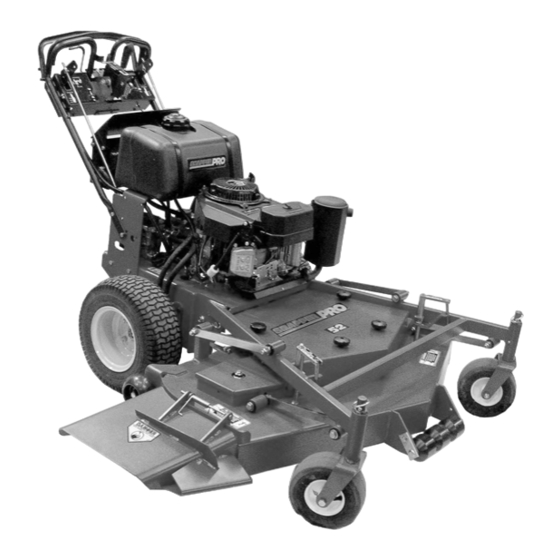

Pro hydro walk behind mowers mid-size series 3
Hide thumbs Also See for SPA361:
Table of Contents

Advertisement

Quick Links

PRO HYDRO WALK BEHIND MOWERS
COPYRIGHT © 2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
POWER UNIT
McDonough, GA, 30253 U.S.A.
Revision IR,
7/8/2005
Parts Manual for
MID-SIZE
SERIES 3
MODELS
SPLH153KW
SPLH173KW
MOWER
MODELS
SPA361
SPA481
SPA521
SPA611
Manual No. 7006936
TP 400-5073-IR-CW-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPA361 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper SPA361

Summary of Contents for Snapper SPA361

  • Page 1 PRO HYDRO WALK BEHIND MOWERS COPYRIGHT © 2005 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for POWER UNIT MODELS SPLH153KW SPLH173KW McDonough, GA, 30253 U.S.A. Revision IR, 7/8/2005 MID-SIZE SERIES 3 MOWER MODELS SPA361 SPA481 SPA521 SPA611 Manual No. 7006936...

  • Page 3: Table Of Contents

    PAGE GROUP LOOP HANDLE & CONTROL ASSEMBLIES TRACKING CONTROL ASSEMBLY OIL TANK ASSEMBLY FUEL TANK ASSEMBLY REAR DECK ASSEMBLY RH PUMP ASSEMBLY LH PUMP ASSEMBLY POWER UNIT IDLER ASSEMBLY ENGINE GROUP TRACTION, REAR WHEEL ASSEMBLY CASTER, WHEEL & TIRE ASSEMBLY 36"...

  • Page 4: Loop Handle & Control Assemblies

    LOOP HANDLE & CONTROL ASSEMBLIES Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 5 LOOP HANDLE & CONTROL ASSEMBLIES Item Part No Description 7011138 IGNITION KEY, Pair 7012685 NUT, 5/8-32 Hex (Ignition Switch) 7012686 NUT, 1/2-27 Hex (Special) 7014341 RETAINING RING 7017817 SWITCH, Ignition, 2-Pole, Recoil Start 7022166 ROD, Pivot, 1/2” Dia. x 18.542 w/2 retaining Ring Grooves 7027141 SWIVEL 7027225...

  • Page 6: Tracking Control Assembly

    TRACKING CONTROL ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 7 TRACKING CONTROL ASSEMBLY Item Part No Description 7011879 GRIP, Vinyl 7013550 PIN, 3/16 x 1” Roll 7011121 WASHER, 5/8” I.D., 1-1/4” O.D. Belleville 7027125 SPRING, Compression 7027168 SCREW, 5/16-18 X 1” Hex Head Cap, GR 5 7027169 SCREW, 3/8-16 x 5” Hex Head Cap, GR 5 7028859 LEVER 7028860...

  • Page 8: Oil Tank Assembly

    OIL TANK ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 9 OIL TANK ASSEMBLY Item Part No Description 7072899 COVER, Oil Tank Bracket 7015761 SHOULDER BOLT, 5/16-18 7091495 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5 7091294 WASHER, .28 x .63 x .06 Flat 7072895 BRACKET, Reservoir, Hydro 7011079 WASHER, 3/8” Curved 7091298 NUT, 5/16-18 Hex Nyloc 7023295...

  • Page 10: Fuel Tank Assembly

    FUEL TANK ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 11 FUEL TANK ASSEMBLY Item Part No Description 7028903 CAP, Fuel Tank 7044639 FUEL TANK 7034923 STRAP, Tank 7091207 SCREW, #10-24 x 2-1/2” Pan Head Machine 7091290 NUT, #10-24 Hex Nyloc 7012222 CLAMP, Fuel Hose 7016325 VALVE, Fuel 7014359 FILTER, In-Line 7032956 *HOSE, Fuel (1/4”...

  • Page 12: Rear Deck Assembly

    REAR DECK ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 13 REAR DECK ASSEMBLY Item Part No Description 7044679 DECK, Rear (Weldment) 7046255 WHEEL MOTOR 7091823 KEY, 5/32 x 5/8” Woodruff 7091304 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5 7091704 NUT, 3/8-16 Hex Top Lock, GR B 7091303 BOLT, 5/16-18 x 1” Short Neck Carriage, GR 5 7035267 BRACKET, Anti-Spin 7091706...

  • Page 14: Rh Pump Assembly

    RH PUMP ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 15 RH PUMP ASSEMBLY Item Part No Description 7078030 HOSE ASSEMBLY, Pro Hydro Series 3 (13.5” hose length) 7027111 FITTING, 90 Degree- “O”-Ring Boss 7091721 ROLL PIN, 5mm x 25mm 7072893 SHIFT ARM, Pump 7011223 PUMP, Hydraulic, RH, HG, Pro Ser. 3 7091528 WASHER, 3/8”...

  • Page 16: Lh Pump Assembly

    LH PUMP ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 17 LH PUMP ASSEMBLY Item Part No Description 7011222 PUMP, Hydraulic, LH, HG, Pro Ser. 3 7091705 NUT, 1/4-20 Hex Top Lock, GR B 7027111 FITTING, 90 Degree- “O”-Ring Boss 7078030 HOSE ASSEMBLY, Pro Hydro Series 3 (13.5” hose length) 7091721 ROLL PIN, 5mm x 25mm 7028863 ARM, Pump...

  • Page 18: Power Unit Idler Assembly

    POWER UNIT IDLER ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 19 POWER UNIT IDLER ASSEMBLY Item Part No Description 7027220 BOLT, 3/8-16 x 3-1/4” Hex Head, GR 5 7090517 WASHER, 3/8” Flat 7027129 PULLEY, Idler 7026886 IDLER ARM Weldment 7091299 NUT, 3/8-16 Hex Nyloc 7027124 SPRING, Idler Tension (extension) 7091704 NUT, 3/8-16 Hex Top Lock, GR B 7016561 BUSHING, 1”...

  • Page 20: Engine Group

    ENGINE GROUP Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...

  • Page 21: Engine Group

    ENGINE GROUP Item Part No Description ENGINE, 15HP Kawasaki ENGINE, 17HP Kawasaki 7027972 ASSEMBLY, Oil Valve 7074953 ADAPTER, Oil Drain 7074954 O-RING Footnotes **Purchase engine components directly from the engine manufacturer dealer. PRO HYDRO WALK BEHIND MOWERS SERIES 3 Note Spec.

  • Page 22: Traction, Rear Wheel Assembly

    TRACTION, REAR WHEEL ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 23 TRACTION, REAR WHEEL ASSEMBLY Item Part No Description 7058425 ASSEMBLY, Rear Tire & Rim, Turf Saver, Gray 7073526 TIRE, 16 x 6.50-8, 4 Ply (Carlisle “Turf Saver”) 7075729 RIM (Gray) 7012234 AIR VALVE, Snap-In 7092097 LUG-NUT, 1/2-20 Tapered Seat 7075303 WHEEL HUB, w/4 threaded studs Footnotes PRO HYDRO WALK BEHIND MOWERS...

  • Page 24: Caster, Wheel & Tire Assembly

    CASTER, WHEEL & TIRE ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 25 CASTER, WHEEL & TIRE ASSEMBLY Item Part No Description 7058167 ASSY, Wheel & Tire, 9 x 3.50-4 (Gray Rim) 7029869 ASSY, Wheel & Tire, 9 x 3.50-4 (White Rim) 7022394 RETAINER, Flanged 7029870 TIRE, 9 x 3.50-4 7075553 RIM, One-Piece Steel (Gray) 7029871 RIM, One-Piece Steel (White) 7022395...

  • Page 26: Mower Deck Assembly (Adjustable Height

    36" MOWER DECK ASSEMBLY (Adjustable Height) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 27 SCREW, 5/16-18 x 4-1/2” Hex Head Cap, GR 5 7029355 BOLT, 1/2-13 x 3-3/4” Hex Head, GR 5 7091587 WASHER, 1/2” Flat 7074862 DECAL, Snapper Pro (silver, 16-1/2” long) 7091619 NUT, 3/8-16 Hex Flange Lock 7058871 DEFLECTOR, 36” ANSI Compliant (Weldment) 7034964 ARM, Suspension, 12”...
  • Page 28 36" MOWER DECK ASSEMBLY (Adjustable Height) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 29 36" MOWER DECK ASSEMBLY (Adjustable Height) Item Part No Description 7091299 NUT, 3/8-16 Hex Nyloc 7091304 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5 7091305 SCREW, 3/8-16 x 2” Hex Head Cap, GR5 7091313 COTTER PIN, 3/32 x 1” 7091922 NUT, 1/2-13 Hex Nyloc 7091894...

  • Page 30: Mower Deck Assy (Frame

    48", 52" & 61" MOWER DECK ASSY (Frame) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 31 7091318 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 7091298 NUT, 5/16-18 Hex Nyloc 7046580 *DECAL, SNAPPER Pro w/Trademark 7074862 *DECAL, Snapper Pro (silver, 16-1/2” long) 7024085 WING NUT, 5/16-18 7035285 COVER, 48” Right 7046607 COVER, 52” Right 7035314 COVER, 61”...
  • Page 32 48", 52" & 61" MOWER DECK ASSY (Frame) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 33 48", 52" & 61" MOWER DECK ASSY (Frame) Item Part No Description 7034979 ARM, Suspension, 13-1/2” Long Footnotes *NOTE: See DECAL page for decal identification. PRO HYDRO WALK BEHIND MOWERS SERIES 3 Note 61” Deck Manual No. 7006936 TP 400-5073-IR-CW-N...

  • Page 34: Mower Deck Assy (Deck

    48", 52" & 61" MOWER DECK ASSY (Deck) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 35 WELDMENT, 61” Deck, Pro Adjustable 7073647 DECAL, Danger Guard/Catcher 7079226 ROLLER, Low Density Polyethylene Footnotes *Nominal Effective Length; HB section belt; SNAPPER part number is printed on belt PRO HYDRO WALK BEHIND MOWERS SERIES 3 Note 48” Deck 52” & 61” Deck...
  • Page 36 48", 52" & 61" MOWER DECK ASSY (Deck) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 37 7300036 DEFLECTOR BOTTOM (52” Deck) 7091790 BOLT, 3/8-16 x 1-1/4” Square Neck Carriage, GR 5 Footnotes *Nominal Effective Length; HB section belt; SNAPPER part number is printed on belt PRO HYDRO WALK BEHIND MOWERS SERIES 3 Note see Decal Page incl.

  • Page 38: Deck Idler Assembly

    36" DECK IDLER ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 39 36" DECK IDLER ASSEMBLY Item Part No Description 7034422 PULLEY, Idler (5.00 O. D.) 7091299 NUT, 3/8-16 Hex Nyloc 7090517 WASHER, 3/8” Flat 7012709 RING, 1” External Retaining 7023556 BUSHING, Flange 7042448 IDLER ARM, 36” (Weldment) 7014669 GREASE FITTING, 3/16 Straight (press-in) 7091304 SCREW, 3/8-16 x 1”...

  • Page 40: Deck Idler Assembly

    48" & 61" DECK IDLER ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 41 48" & 61" DECK IDLER ASSEMBLY Item Part No Description 7012709 RING, 1” External Retaining 7023747 BUSHING, 1” I.D. Machine 7023556 BUSHING, Flange 7042452 WELDMENT, Idler Arm, Secondary 7029273 PULLEY, Idler 7090517 WASHER, 3/8” Flat 7091585 NUT, 3/8-16 Hex Center Lock, GR 5 or B 7034422 PULLEY, Flat Idler, 5”...

  • Page 42: Deck Idler Assembly

    52" DECK IDLER ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 43 52" DECK IDLER ASSEMBLY Item Part No Description 7091585 NUT, 3/8-16 Hex Center Lock, GR 5 or B 7090517 WASHER, 3/8” Flat 7029273 PULLEY, Idler 7091305 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5 7012709 RING, 1” External Retaining 7023747 BUSHING, Machine 7023556...

  • Page 44: Cutter Housing Assembly

    CUTTER HOUSING ASSEMBLY Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 45 CUTTER HOUSING ASSEMBLY Item Part No Description 7029422 BEARING, Sealed 7029270 WASHER, Spindle 7029274 SNAP-RING, Spindle Shaft 7059311 ASSEMBLY, Spindle Shaft 7029254 SPACER, Bearing 7029271 SPACER, Blade 7075751 BLADE, 18” Comm. With Ext. Cut 7075770 BLADE, 21” 7075771 BLADE, 16-1/2” 7016440 WASHER, Beveled 7063234...

  • Page 46: Decal Group

    DECAL GROUP Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 47 DECAL GROUP Item Part No Description 7074862 DECAL, Snapper Pro (silver, 16-1/2” long) 7046580 DECAL, Snapper Pro w/Trademark (white letters, 13-3/16” long) 7036481 DECAL, Small Snapper Pro (silver, 8” long) 7029295 DECAL, Height of Cut 7027733 DECAL, Ear Protection 7073593...

  • Page 48: Electrical Wiring (Manual Start

    ELECTRICAL WIRING (Manual Start) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 49 ELECTRICAL WIRING (Manual Start) Item Part No Description 7027225 SWITCH, Single Pole, LG-1, N.C. 7073141 SWITCH, Interlock, Sealed, SPST, N.C. 7091240 SCREW, #10-32 x 5/8” Hex Machine 7090376 NUT, #10-32 Hex Nyloc 7073118 WIRING HARNESS 7012686 NUT, 1/2-27 Hex (Special) 7029715 SWITCH, Toggle (H671A) 7011138...

  • Page 50: Wiring Schematic (Manual Start

    WIRING SCHEMATIC (Manual Start) Manual No. 7006936 PRO HYDRO WALK BEHIND MOWERS TP 400-5073-IR-CW-N SERIES 3...
  • Page 51 WIRING SCHEMATIC (Manual Start) Item Part No Description 7073118 WIRING HARNESS Footnotes PRO HYDRO WALK BEHIND MOWERS SERIES 3 Note Manual No. 7006936 TP 400-5073-IR-CW-N...
  • Page 54 PRO HYDRO WALK BEHIND MOWERS MID-SIZE SERIES 3 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
