BONFIGLIOLI VF Series Installation, Operation And Maintenance Manual page 16

VF 27
VF 30
VF 44
VF 49
VF 130
VF 150
VF 185
VF 210
VF 250

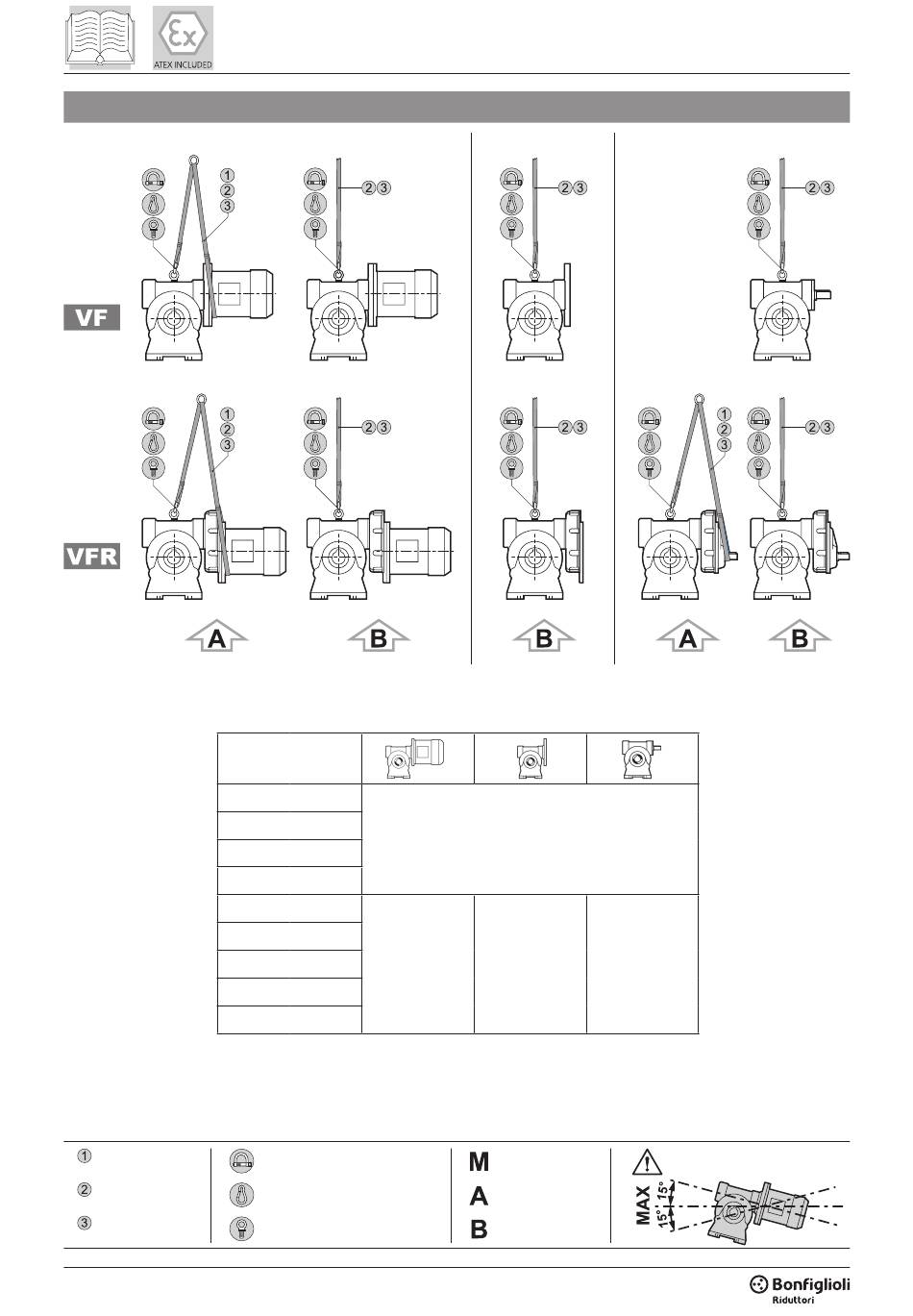

Strap and ring
Rope and hooks
Open strap
and eye-bolts
14 / 64
IOM Manual VF-W_ATEX_gb - Translation of original instructions in Italian - Rev 03_0 - 30/09/16
VF Series
VFR 44
VFR 49
VFR 130
VFR 150
A - B
VFR 185
VFR 210
VFR 250
Shackle
(for use with strap)
Safety hook
(for use with rope)
Eye-bolt (already present
on VF130...VF250 gearboxes)
M
B A - B
Lift manually Maximum tilt permitted during
movement: 15°
(weight ≤ 15 kg)
Lift according
to drawing A
Lift according
to drawing B
