3 TECHNICAL INFORMATION

3.1

EQUIPMENT IDENTIFICATION

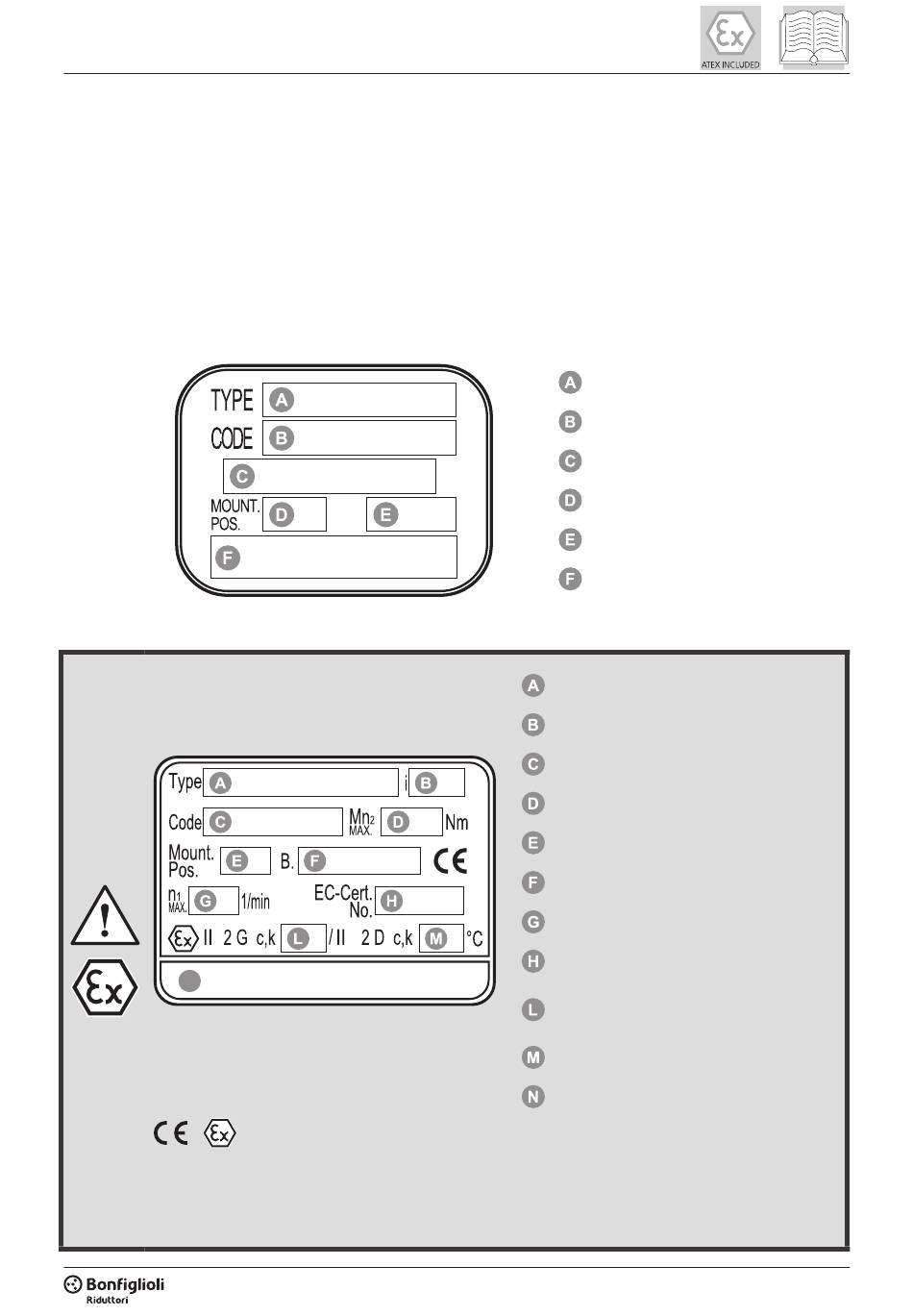

The gearbox bears the following identifying nameplate. The nameplate provides essential information and
specifications for correct and safe use. The designation of the gearbox is explained in the sales catalogue.
If the gearbox is supplied fitted with a motor (gearmotor), all information regarding the motor itself is
provided in the motor's own manual.
Nameplate information
Nameplate data for ATEX-specified
gearboxes
N
CE - Ex Mark
Environmental limits (ambient temperature range: - 20°C to + 40°C).
●
emperature class: T4 for 2G and 135°C for 2D. Some types of gearbox, as specified in
● T
the catalogue, are exceptions to this rule and are marked temperature class: T3 for 2G or
160°C for 2D.
Notified body with whom the technical file has been deposited.
●
IOM Manual VF-W_ATEXgb - Translation of original instructions in Italian - Rev 03_0 - 30/09/16
Gearbox type
Product code
Month / Year of manufacture
Mounting position
Gear ratio
Name of manufacturer
Gearbox type
Gear ratio
Product code
Transmissible torque [Nm] at n
Mounting position
Month / Year of manufacture
Maximum drive speed
Deposited certificate no.
Temperature class, or
maximum surface temperature
Maximum surface temperature
Name of manufacturer
= 1400 rpm
