EOS2 SAFETY LIGHT CURTAIN

OPERATION AND TECHNICAL DATA

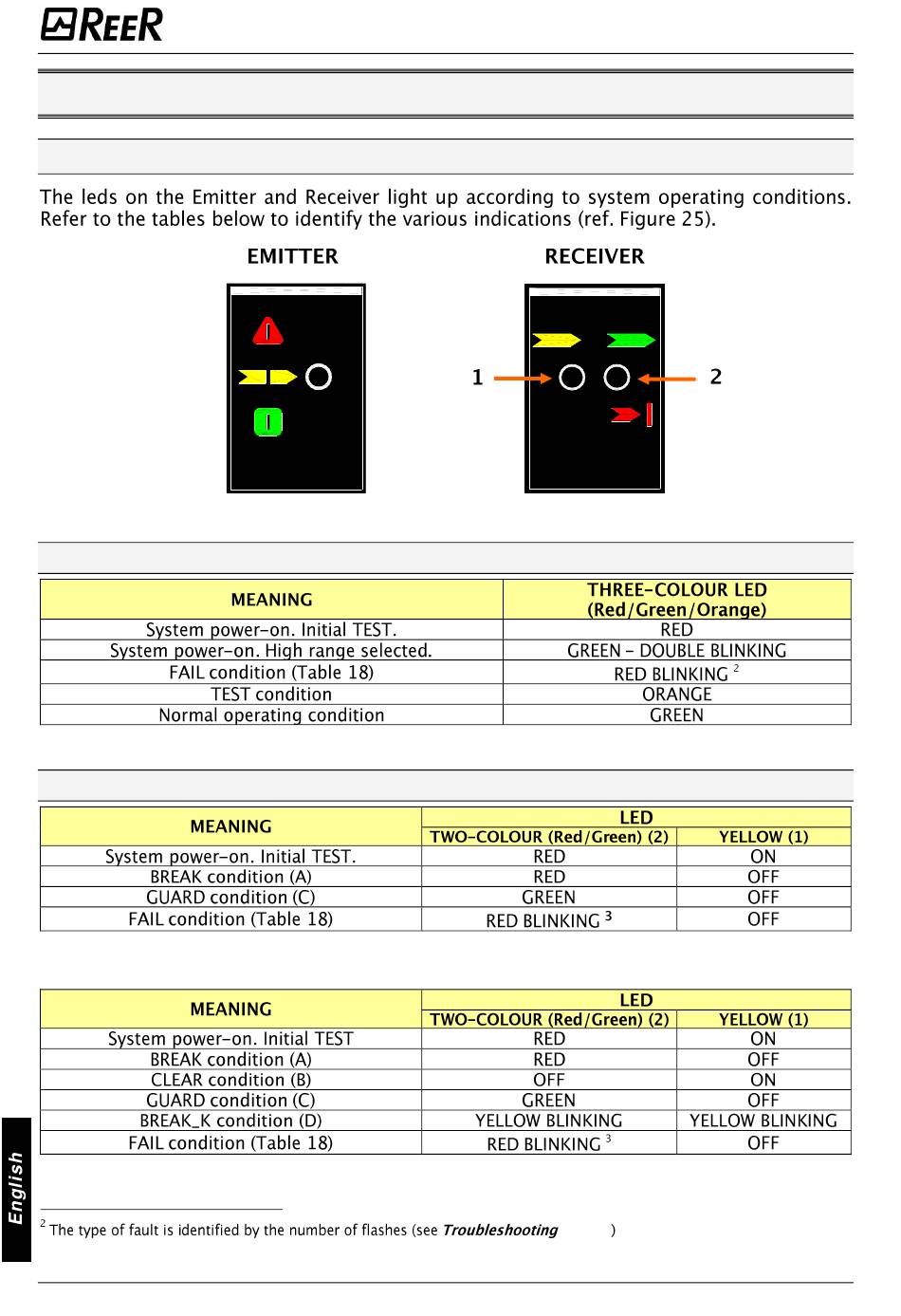

Light signals
Figure 25 - Light signals

Emitter light signals

Table 13 – TX light signals

Receiver light signals

Table 14 – RX light signals EOS2 A / EOS2 Slave
Table 15 – RX light signals EOS2 X (With integrated control functions)
chapter
24 8540738 • 05/12/2017 • Rev.20
