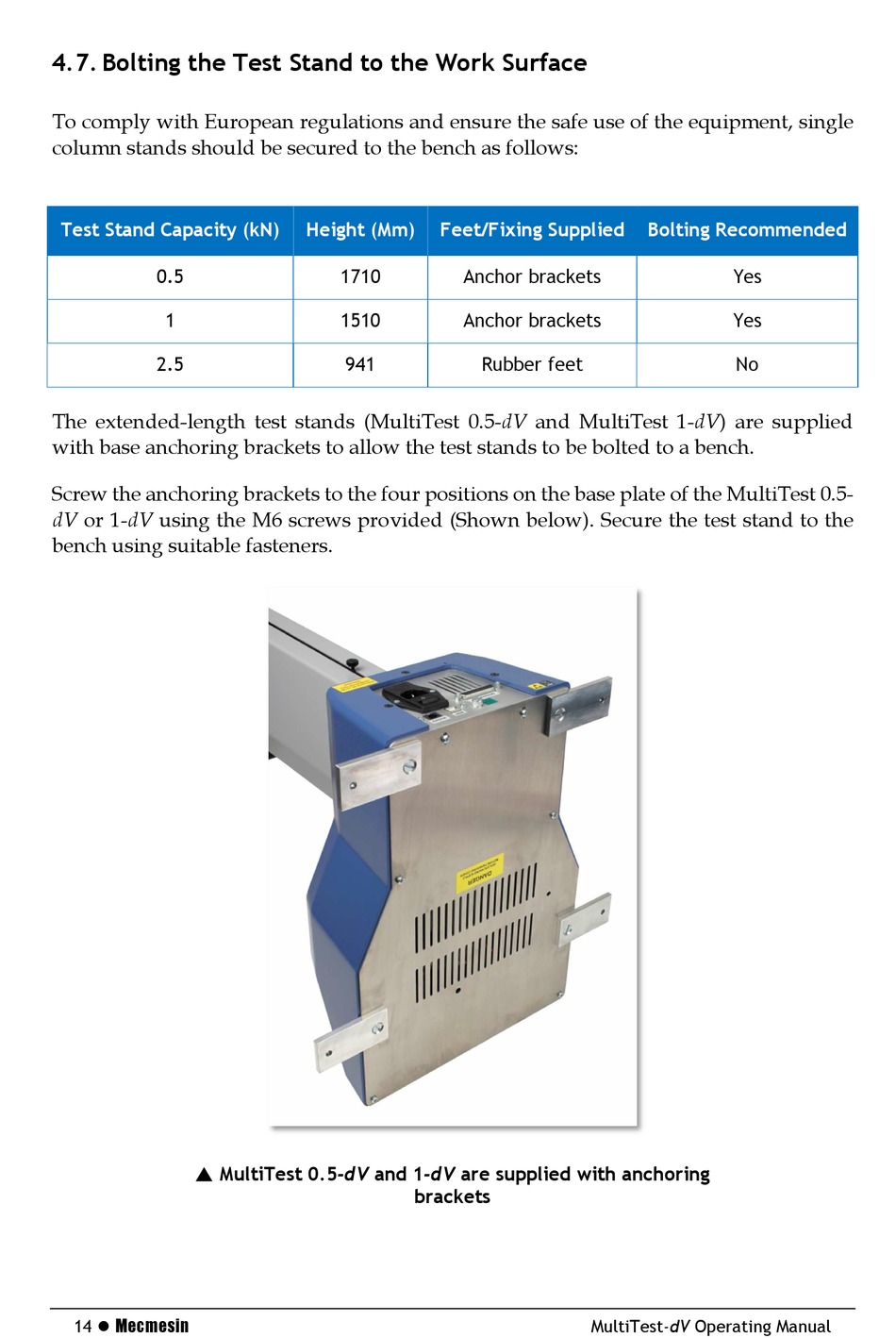

4.7. Bolting the Test Stand to the Work Surface

To comply with European regulations and ensure the safe use of the equipment, single
column stands should be secured to the bench as follows:
Test Stand Capacity (kN)
0.5
1
2.5
The extended-length test stands (MultiTest 0.5-dV and MultiTest 1-dV) are supplied
with base anchoring brackets to allow the test stands to be bolted to a bench.
Screw the anchoring brackets to the four positions on the base plate of the MultiTest 0.5-
dV or 1-dV using the M6 screws provided (Shown below). Secure the test stand to the
bench using suitable fasteners.
 MultiTest 0.5-dV and 1-dV are supplied with anchoring
14  Mecmesin
Height (Mm) Feet/Fixing Supplied
1710 Anchor brackets
1510 Anchor brackets
941
brackets
Bolting Recommended
Rubber feet
MultiTest-dV Operating Manual
Yes
Yes
No
