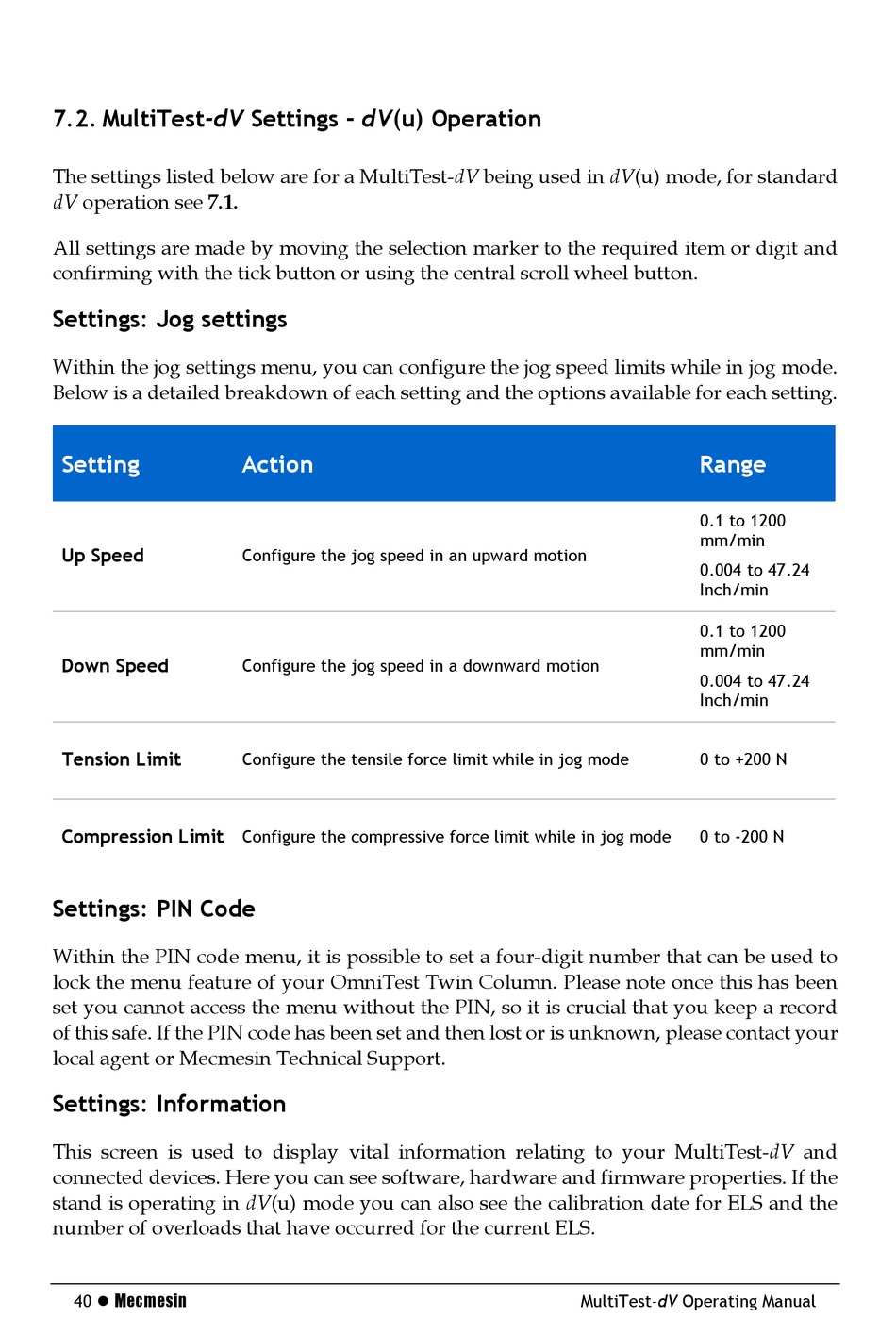

7.2. MultiTest-dV Settings - dV(u) Operation

The settings listed below are for a MultiTest-dV being used in dV(u) mode, for standard
dV operation see 7.1.
All settings are made by moving the selection marker to the required item or digit and
confirming with the tick button or using the central scroll wheel button.

Settings: Jog settings

Within the jog settings menu, you can configure the jog speed limits while in jog mode.
Below is a detailed breakdown of each setting and the options available for each setting.
Setting
Up Speed
Down Speed
Tension Limit
Compression Limit

Settings: PIN Code

Within the PIN code menu, it is possible to set a four-digit number that can be used to
lock the menu feature of your OmniTest Twin Column. Please note once this has been
set you cannot access the menu without the PIN, so it is crucial that you keep a record
of this safe. If the PIN code has been set and then lost or is unknown, please contact your
local agent or Mecmesin Technical Support.

Settings: Information

This screen is used to display vital information relating to your MultiTest-dV and
connected devices. Here you can see software, hardware and firmware properties. If the
stand is operating in dV(u) mode you can also see the calibration date for ELS and the
number of overloads that have occurred for the current ELS.
40  Mecmesin
Action
Configure the jog speed in an upward motion
Configure the jog speed in a downward motion
Configure the tensile force limit while in jog mode
Configure the compressive force limit while in jog mode
Range
0.1 to 1200
mm/min
0.004 to 47.24
Inch/min
0.1 to 1200
mm/min
0.004 to 47.24
Inch/min
0 to +200 N
0 to -200 N
MultiTest-dV Operating Manual
