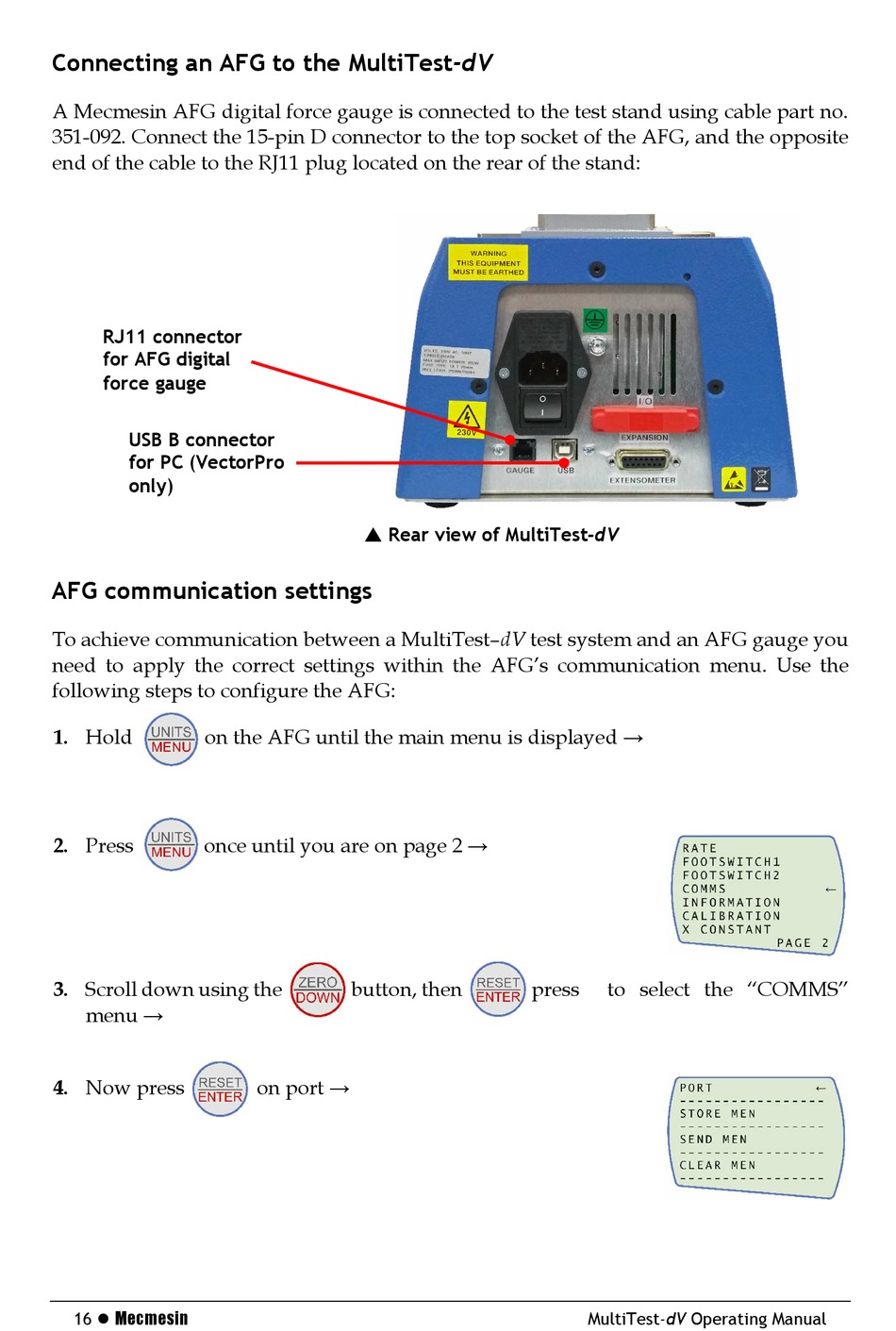

Connecting an AFG to the MultiTest-dV

A Mecmesin AFG digital force gauge is connected to the test stand using cable part no.
351-092. Connect the 15-pin D connector to the top socket of the AFG, and the opposite
end of the cable to the RJ11 plug located on the rear of the stand:
RJ11 connector
for AFG digital
force gauge
USB B connector
for PC (VectorPro
only)

AFG communication settings

To achieve communication between a MultiTest–dV test system and an AFG gauge you
need to apply the correct settings within the AFG's communication menu. Use the
following steps to configure the AFG:
1. Hold on the AFG until the main menu is displayed →
2. Press once until you are on page 2 →
3. Scroll down using the
menu →
4. Now press
