Plug and connection assignment

10 Plug and connection assignment
Introduction
DMX socket
DMX DC-192
52
DMX controller
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in 'Sound & Light' caution is indicated: Even if a plug
fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or 'just' a not working light show!

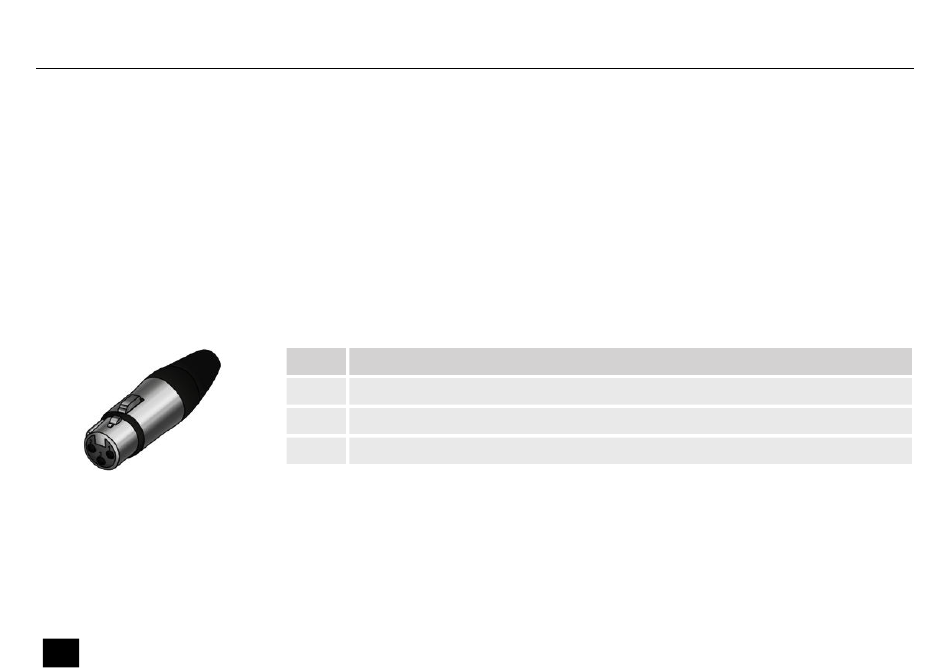

A female 3-pin XLR socket is used for the DMX output. The figure and the table below show the
pin assignment.
Pin Assignment
1 Ground (shielding)
2 Signal inverted (DMX–, 'cold')
3 Signal (DMX+, 'hot')
