INTRODUCTION:

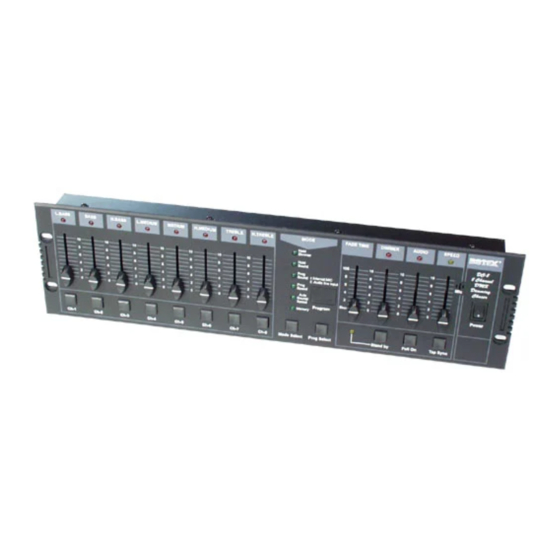

This model is a 8 channel DMX chaser, has 7 operating modes and 48 chasing programs, and is compatible
with any DMX-512 receiver. In addition, memory backup and fade time control are incorporated.
TECHNICAL SPECIFICATIONS:
POWER INPUT .................................................................................... DC 15-18V, 300mA min.
AUDIO INPUT ....................................................................................................... 100mV-1Vpp
DMX OUTPUT ................................................................................ 3 pin female XLR socket x1
DIMENSIONS ............................................................................................. 482.6x133x50.5mm
WEIGHT .......................................................................................................................... 1.35Kg

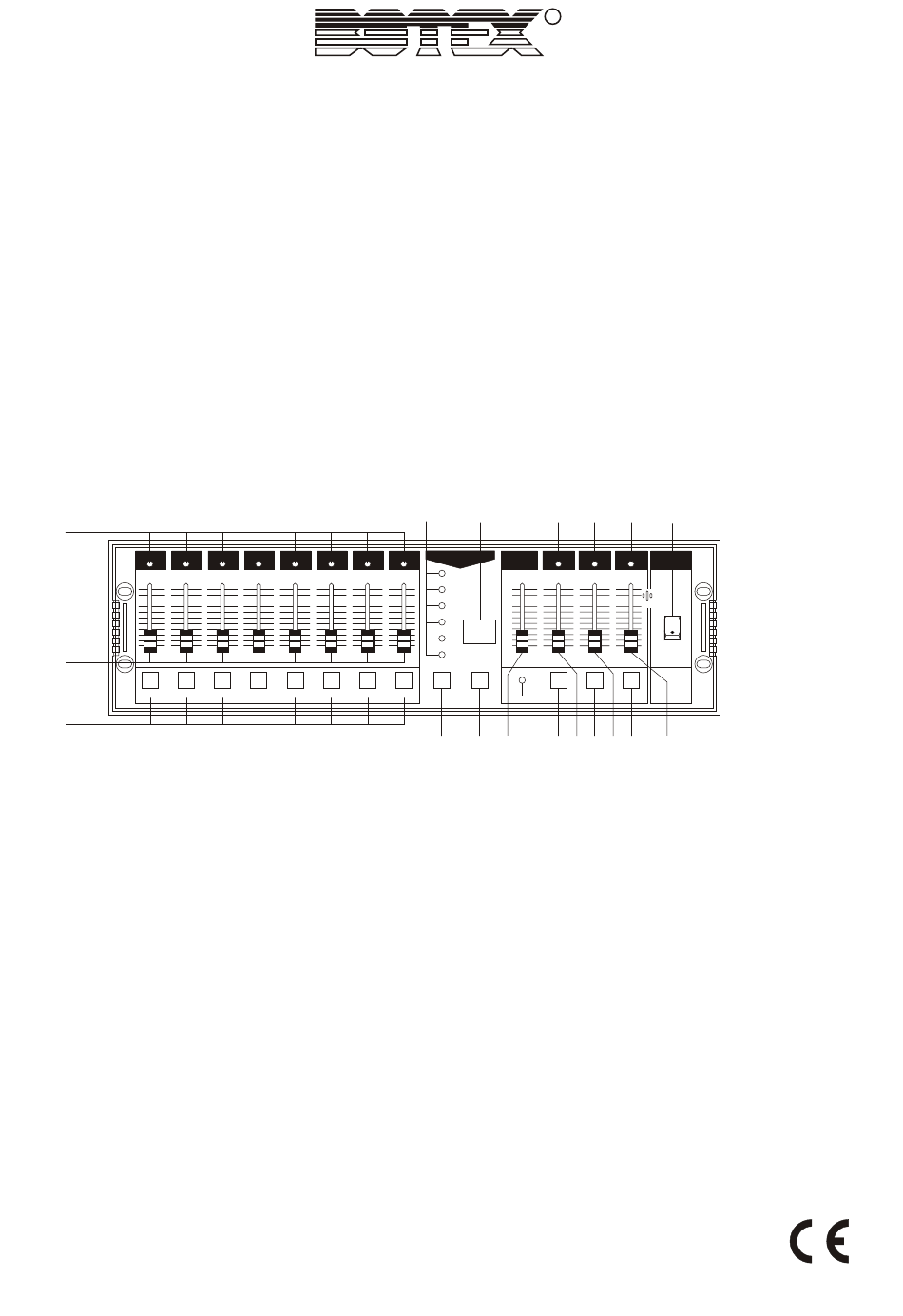

CONTROLS & FUNCTIONS
7
L.BASS
BASS
10
8
6
4
2
0
8
Ch-1
Ch-2
9
1. POWER SWITCH
2. SPEED INDICATOR
This indicator indicates the chasing speed.
3. AUDIO LEVEL INDICATOR
This indicator indicates the sensitivity of music rhythms.
4. MASTER DIMMER INDICATOR
This indicator indicates master dimming level.
5. PROGRAM DISPLAY
Shows desired pre-set digit parameter.
6. PROGRAM INDICATOR
This indicator indicate the operating mode being executed.
7. CHANNEL DIMMER INDICATOR
This indicator indicates the dimming level of corresponding channel.
8. CHANNEL DIMMER CONTROL
This control adjusts the dimming level of corresponding channel.
9. CHANNEL FLASH BUTTON
Press to activate channel full on function.
10. MODE SELECT BUTTON
Press to select desired operating mode from Hold Dimmer / Hold Sound / Prog Sound / Prog Speed/
Auto Speed / Auto Sound / Memory or music control from line input / built-in microphone.
11. PROGRAM SELECT BUTTON
Press to select desired program from 48 pre-set programs in Prog Sound / Prog Speed / Auto
Speed / Auto Sound. In Memory mode, you can press to activate sub-mode to select desired
operating mode from Program / Manual / Auto Sound / Auto Speed using STAND BY .
12. FADE CONTROL
This control adjusts the delay time. It is not effective in Hold Sound and Memory.
13. STAND-BY BUTTON & INDICATOR
Press to turn off all output.
OPERATION MANUAL
H.BASS
L.MEDIUM
MEDIUM
H.MEDIUM
TREBLE
10
10
10
10
10
8
8
8
8
8
6
6
6
6
6
4
4
4
4
4
2
2
2
2
2
0
0
0
0
0
Ch-3
Ch-4
Ch-5
Ch-6
Ch-7
R
DC-8
6
5
H.TREBLE
MODE
FADE TIME
DIMMER
10
10S
10
8
8
8
6
6
6
4
4
4
88
88
2
2
2
0
Stop
0
Ch-8
Mode Select
Prog Select
Stand by
10
11
12
13 14 15 16 17
4
3
2
1
AUDIO
SPEED
10
10
8
8
Mic
6
6
4
4
2
2
0
0
Power
Full On
TAP SYNC
18
24-004-0279
