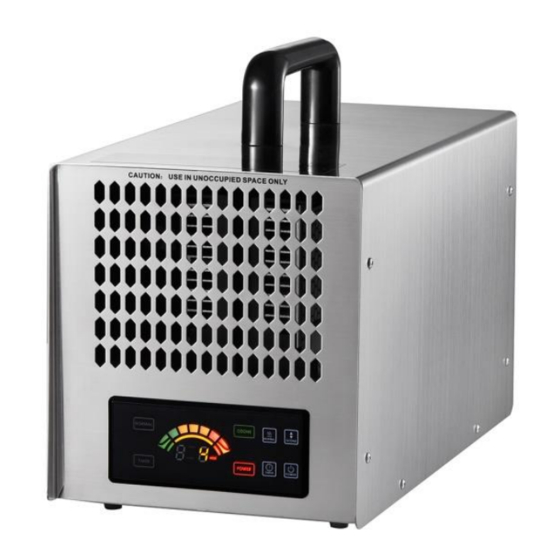

EcoQuest Ozone Blaster 20g Owner's Manual

20000 mg. commercial air purifier
Hide thumbs

Advertisement

Quick Links

Download this manual

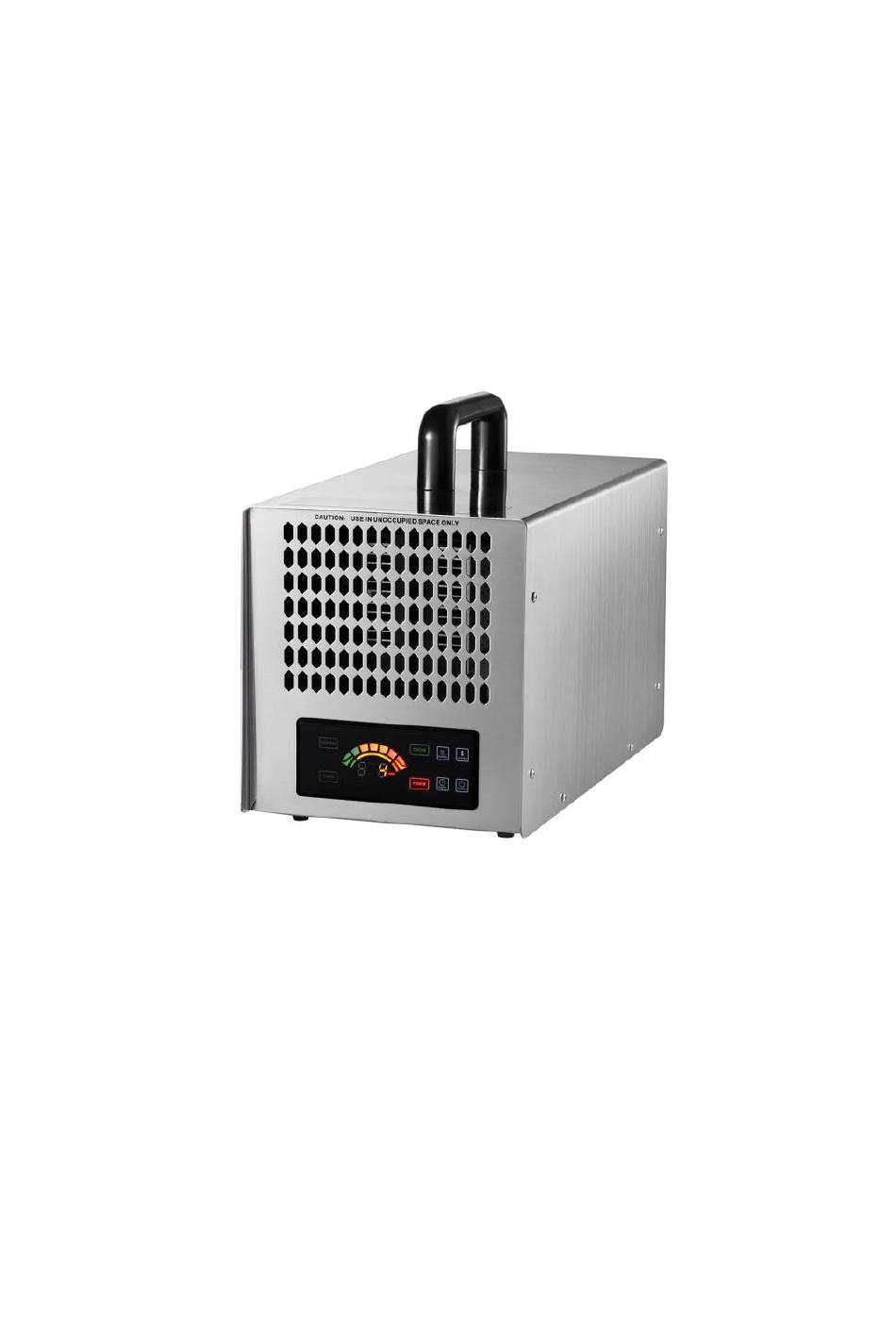

Ozone Blaster 20g
20000 mg. Commercial Air Purifier
OWNER'S MANUAL
Please read all of the information provided in this owner's manual
before operating your new Ozone generator.
EcoQuest International
310 T. Elmer Cox Drive • Greeneville, TN 37743 • (888)664-1812
www.EcoQuest.company

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ozone Blaster 20g and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EcoQuest Ozone Blaster 20g

Summary of Contents for EcoQuest Ozone Blaster 20g

  • Page 1 Ozone Blaster 20g 20000 mg. Commercial Air Purifier OWNER’S MANUAL Please read all of the information provided in this owner’s manual before operating your new Ozone generator. EcoQuest International 310 T. Elmer Cox Drive • Greeneville, TN 37743 • (888)664-1812...
  • Page 2 CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN ATTENTION CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVCE PERSONNEL. This “bolt of lightning” indicates that uninsulated material within your unit may cause an electrical shock.
  • Page 3 Read ALL instructions carefully before using this product. CAUTION! In order to reduce the risk of leakage to damage the instrument or person, it is important that be properly grounded to avoid potential shock.
  • Page 4 INTRODUCTION This ozone generator is an advanced and convenient contaminant remediation product. High-powered oxidation in a compact, rugged and simple design. Utilizing controlled corona discharge ozone technology developed specifically to reduce odors and smoke in unoccupied spaces, ideal for treatment for large space etc. It is with 4 grades adjustment, from 5000mg ozone output to 20000mg ozone output.
  • Page 5 Model: HE-143 Europe AC 220-240V/50-60Hz or Rated Voltage: USA/Japan AC 100-120V/50-60Hz Power Consumption: 270W Supply gas Ambient Air Air Volume: Max 170CFM Active Oxygen(on) ： 5000-20000mg/h Stainless steel cabinet and inner Construction: terminal and screws. Ozone plate: 4pcs 5g ozone plates, 90*70mm Remote Control/Manual: 19~32ft.
  • Page 6 (Front View) (Back View)
  • Page 7 Display Function and operation instruction Standby mode: Machine turns on when press Power button, it starts working at grade 1; Power on mode: Machine turns off when Power press the Power button 1. Press TIMER, display 1 hour 2. Press one time, It will increase 1 hour, the max.
  • Page 8 No. Display LED display Machine working Press POWER to turn on the machine status Press OZONE to indicate ozone working Ozone grade status, to display 1 to 4 ozone grade. Countdown Display the countdown clock. display Timing Timing function is turned on. reminder Normal mode Press NORMAL to indicate Normal mode...
  • Page 9 Name Function and operation instruction Standby mode: it turns on when press Power, start working at grade 1; Power Power on mode: it turns off when press the Power Increase the ozone output, it is “1-2-3-4” Ozone up Reduce the ozone output, it is “4-3-2-1” Ozone down 1.
  • Page 10 The Ozone generator is designed to use in unoccupied spaces. The unit has a timer that will enable it to run for a maximum duration of 9 hours. It will then shut the Ozone generator off. You should allow 40-60 minutes before returning to the treated area.
  • Page 11 When the air purifier no longer produces enough ozone to be effective, the ozone plates should be replaced. (Usually they should be replaced after 6000 hours) How to replace the ozone plate: 1) Turn the unit off and unplug from outlet. 2) Use a screw driver to unfasten cover screw and remove cover.
  • Page 12 How to clean the ozone plate: Wash the stainless steel screen and ceramic plate using a spray cleaner or detergent. Scrub with a stiff brush. A spray liquid cleaner with ammonia or chlorine may also be used to remove any non- visible adherents.
  • Page 13 Important To extend the life, continuous power interval must be 30 seconds or more, please unplug the device if the device are not used for long-term. Also the device should be worked within the specified voltage range. User normal use of the product in accordance with the instruction manual, the failure of the warranty period, can be a free repair.
  • Page 14 Likewise, any defects or damages caused by unauthorized service. EcoQuest International ® 310 T. Elmer Cox Drive • Greeneville, TN 37743 • (888)664-1812 www.EcoQuest.company...
