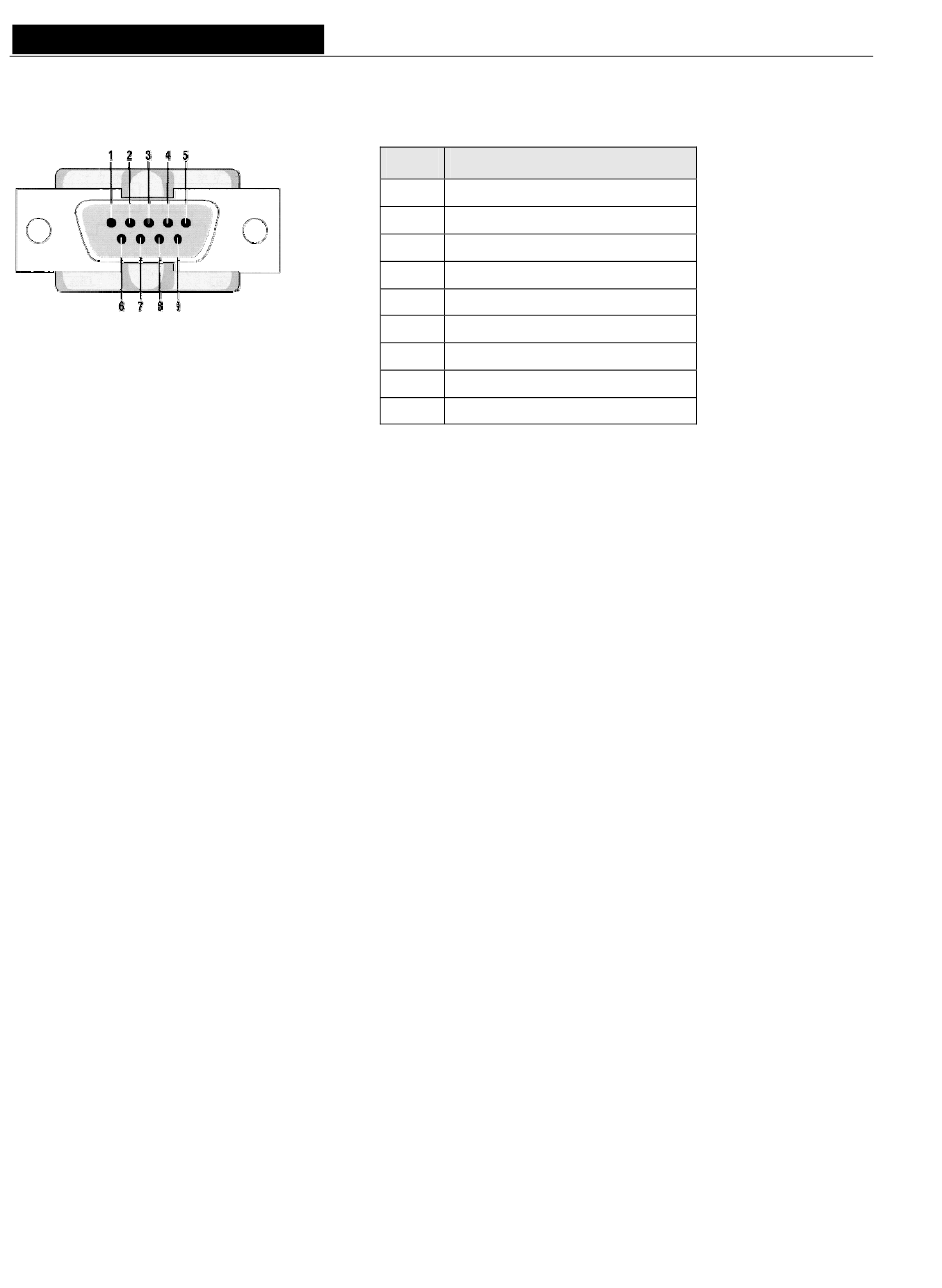

Serial port (RS232 on DB9)

ES881v 2, ES1241v2, and ES16161v2 dispose of a serial R
con nec any compatible device. For pinout allocation details, please refer to the figure and table above. t
Note: The RS232 serial port manageme

Remote set-up by means of configuration software

Use of the configuration software allows for the management of all devices on the
software details, please refer to the on-line help file.
ES881v2, ES1241v2, and ES16161v2 are shipped with a CD-ROM containing the EtherSound driver and
Digigram configuration software, EScontrol. To install this software, please refer to the CD-ROM delivered
with your EtherSound device.
ES881v2, ES1241v2, and ES16161v2 may also be managed through configuration software edited by
Digigram development partners.
To uninstall the software go to Add/Remove programs in t

Firmware update

Digigram may decide to publish firmware updates. It m
this case please refer to the respective documentation provided with the firmware upgrade tool.
10
r a m
Pin # Description
nt requires specific software.
1
not connected
2
RxD (received data)
3
TxD (transmitted data)
4
not connected
5
signal ground
6
not connected
7
RTS (request to send)
8
CTS (clear to send)
9
not connected
