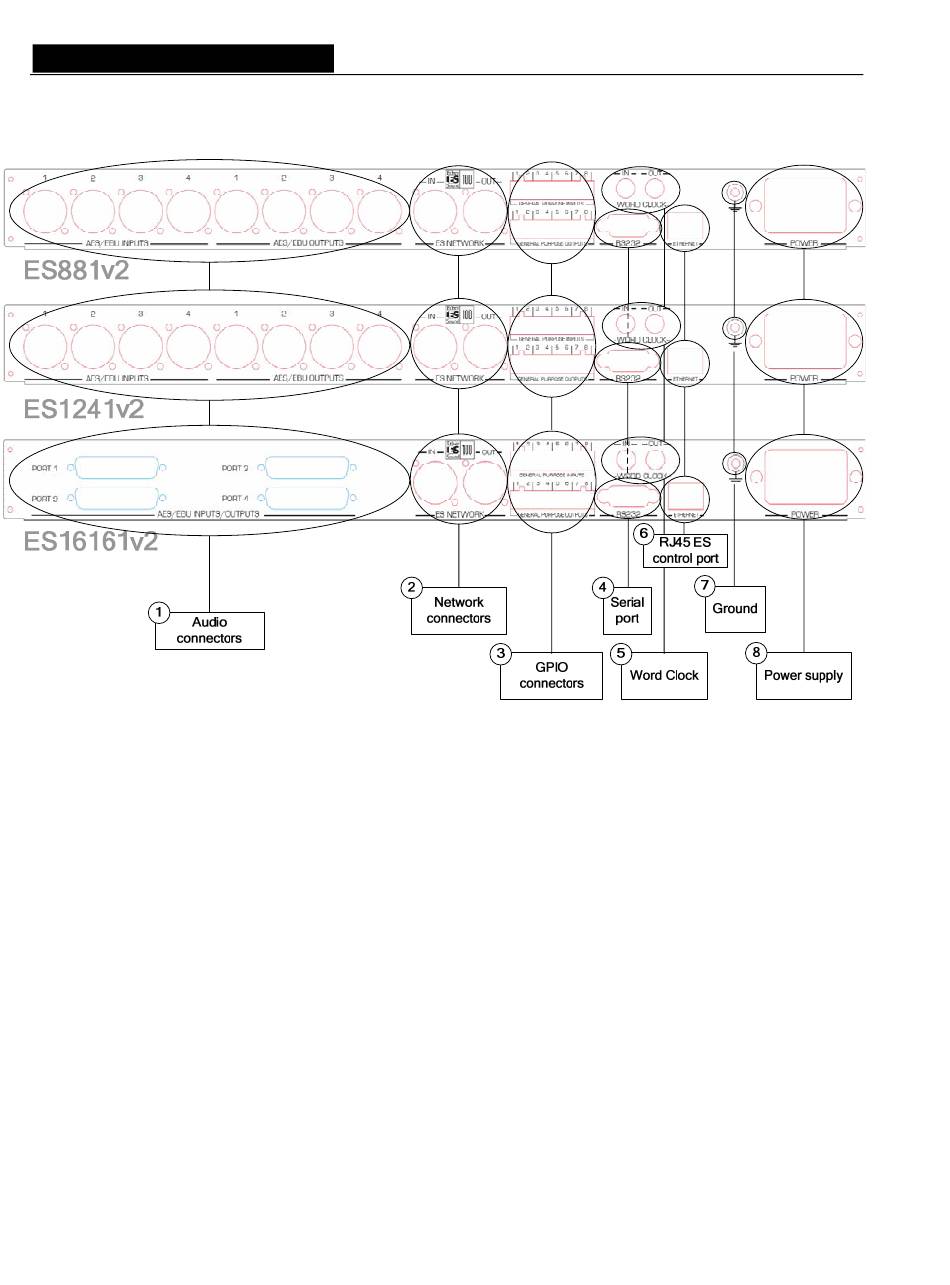

ES881v2, ES1241v2, and ES16161v2 back panels

Audio connectors
1.
On ES881v2, four male XLR-3 connectors are used to output eight EtherSound channels on four AES/EBU
stereo out puts, four female XLR-3 connectors to input four AES/EBU stereo inputs onto eight EtherSound
channels.
On ES1241v2, six male XLR-3 connectors are used to output twelve EtherSound channels on six stereo
AES/EBU stereo outputs, two fe
Eth erSound channels.
On ES16161v2, two female Sub-D 25-pin connectors are used to output sixteen EtherSound channels on
eigh t stereo AES/EBU stereo outputs, two female Sub-D 25-pin connectors to input eight AES/EBU s
in puts onto sixteen EtherSound channels.
Network connectors
2.
TM
The se two Neutrik
network. The "IN" port receives the descending EtherSound stream ('downstream', coming from the 'Clock
Source') while the "OUT" port receives the ascending EtherSound stream ('upstream') and transmits it to the
"IN" port; for more details on the concepts of 'upstream' and 'downstream' please refer to the document
'EtherSound Overview', available on the enclosed CD-ROM and on our web site.
