- Page 1 L417M0011EN ‒ 3/14/2019 User Manual L-417.XX9025E0B HIGH-LOAD LINEAR STAGE M O T I O N | P O S I T I O N I N G...
-
Page 2: Table Of Contents
CONTENTS L417M0011EN ‒ 3/14/2019 Contents Legal Information......................4 About this Document....................5 Objective and Target Group................5 Explanation of Symbols..................5 2.2.1 Typographic Conventions..............5 2.2.2 Symbols Used..................5 Figures........................ 6 Downloading Manuals..................6 Safety..........................7 Intended Use...................... 7 General Safety Instructions................7 Organizational Measures.................. - Page 3 CONTENTS L417M0011EN ‒ 3/14/2019 Troubleshooting......................24 10 Transportation......................25 11 Customer Service Department................. 26 12 Technical Data......................27 12.1 Specifications....................27 12.2 Maximum Ratings................... 30 12.3 Ambient Conditions and Classifications............30 12.4 Dimensions...................... 31 13 Old Equipment Disposal................... 33 14 Appendix........................34 14.1 Pin Assignment....................34 14.1.1 Drive Connector................
-
Page 4: Legal Information
With regard thereto, Physik Instrumente (PI) GmbH & Co. KG reserves all rights. The use of any text, images and drawings is permitted only in part and only when indicating the source. -
Page 5: About This Document
This user manual contains the information needed for the intended use of the L-417.xx9025E0B. Basic knowledge of closed-loop systems, motion control concepts, and applicable safety measures is assumed. Explanation of Symbols This chapter explains the symbols and markings used by PI in their user manuals. 2.2.1 Typographic Conventions Symbol / Label Meaning... -
Page 6: Figures
(p. 26). Downloading Manuals 1. Open the website www.pi.ws. 2. If the product was shipped with a data storage device: Log into the website: a) Click Login. b) Enter the login data. The login data is in the [...]_Releasenews_[...].pdf in the Manuals directory on the data storage device. -
Page 7: Safety
► Always keep this user manual available with the L-417.xx9025E0B. The latest versions of the user manuals can be downloaded (p. 6) at www.pi.ws. ► Add all information from the manufacturer such as supplements or technical notes to the user manual. -
Page 8: Product Description

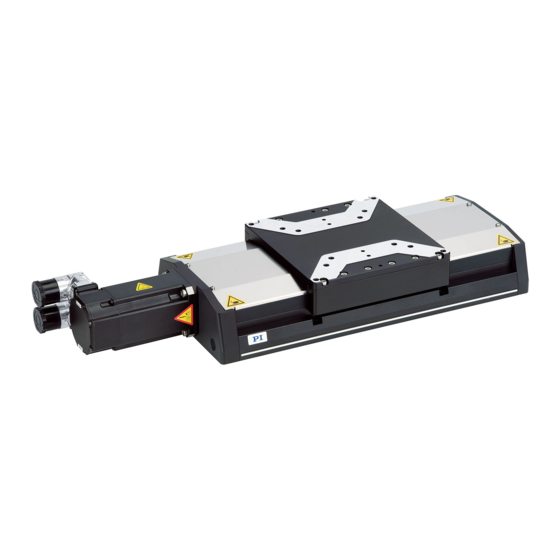

4 PRODUCT DESCRIPTION L417M0011EN ‒ 3/14/2019 Product Description Model Overview High-load linear stage, xx mm travel range, 166 mm width, 450 N load capacity, absolute linear encoder with EnDat 2.2 signal transmission, 1 nm sensor resolution, holding brake, synchronous servo motor, to 320 V Product number Travel range: xx L-417.059025E0B... -
Page 9: Type Plate
4 PRODUCT DESCRIPTION L417M0011EN ‒ 3/14/2019 4.2.1 Type Plate Figure 2: Type plate of the L-417.xx9025E0B 1. Data matrix code (example; contains the serial number) 2. Product number (example) 3. Serial number (example), individual for each L-417.xx9025E0B Meaning of the position (counting from the left): 1 = internal information, 2 and 3 = year of manufacture, 4 to 9 = consecutive numbers... -
Page 10: Overview
4 PRODUCT DESCRIPTION L417M0011EN ‒ 3/14/2019 Overview Figure 3: Elements of the L-417.xx9025E0B 1. Base body 2. Motion platform 3. Drive 4. Holding brake 5. Drive and rotary encoder connector 6. Purge air connector 7. Linear encoder connector 8. Grease nipple for relubricating the drive screw 4.4.1 Base Body The base body is the basis of the positioner. -
Page 11: Holding Brake
4 PRODUCT DESCRIPTION L417M0011EN ‒ 3/14/2019 The drive comprises the following subassembly (subassemblies): Motor The motor generates the torque required for the dynamics of the motion platform. Rotary encoder The rotary encoder measures the motor shaft's angle of rotation. This signal can be used by suitable electronics for commutating the motor . - Page 12 4 PRODUCT DESCRIPTION L417M0011EN ‒ 3/14/2019 Passive dust protection The passive dust protection consists of covering strips that seal the openings on the side of the L-417.xx9025E0B's base body and therefore reduces the amount of dust that can penetrate. Active dust protection The active dust protection consists of a purge air connector on the base body of the L-417.xx9025E0B, which creates a slight overpressure in the L-417.xx9025E0B and therefore reduces the amount of dust that can penetrate.
-
Page 13: Unpacking
5 UNPACKING L417M0011EN ‒ 3/14/2019 Unpacking Unpacking the L-417.xx9025E0B 1. Unpack the L-417.xx9025E0B with care. Hold the L-417.xx9025E0B by its base body only. 2. Compare the contents with the scope of delivery according to the contract and the delivery note. 3. -
Page 14: Installation
6 INSTALLATION L417M0011EN ‒ 3/14/2019 Installation Mounting the L-417.xx9025E0B Overview Figure 4: Mounting the L-417.xx9025E0B onto an underlying surface Tools and Accessories Screw set for mounting the L-417.xx9025E0B (p. 9) ■ ■ Suitable screwdriver Requirements You have read and understood the general safety instructions (p. -
Page 15: Connecting The L-417.Xx9025E0B To The Protective Earth Conductor
6 INSTALLATION L417M0011EN ‒ 3/14/2019 CAUTION Risk of crushing by moving parts! Risk of minor injuries from crushing between the moving parts of the L-417.xx9025E0B or the load and a fixed part or obstacle. ► Use safeguards to protect limbs in areas where they could be caught by moving parts. ►... - Page 16 6 INSTALLATION L417M0011EN ‒ 3/14/2019 Overview Figure 5: Protective earth connector on the L-417.xx9025E0B 1. Connector for the protective earth conductor on the L-417.xx9025E0B, indicated by the protective earth symbol 2. Safety washer 3. Flat washer 4. Protective earth conductor lug 5.
-
Page 17: Mounting The Load Onto The L-417.Xx9025E0B
6 INSTALLATION L417M0011EN ‒ 3/14/2019 4. Make sure that the contact resistance is <0.1 Ω at 25 A at all connection points relevant for attaching the protective earth conductor. Mounting the Load onto the L-417.xx9025E0B Overview Figure 6: Mounting the load onto the L-417.xx9025E0B 1. -
Page 18: Connecting The L-417.Xx9025E0B
► Make sure that the electronics support the drive type of the L-417.xx9025E0B and has been configured accordingly. ► Use cables from PI miCos only to connect the L-417.xx9025E0B to the electronics. ► Pay attention to correct pin assignment (p. - Page 19 6 INSTALLATION L417M0011EN ‒ 3/14/2019 Permissible pressure: 2 to 6 bar (200 to 600 kPa) b) Rotary encoder connector c) Drive connector d) Linear encoder connector 3. Secure the connectors against unintentional removal. If necessary: Turn the drive and encoder connector carefully to a position suitable for your installation conditions.
-
Page 20: Startup / Operation
7 STARTUP / OPERATION L417M0011EN ‒ 3/14/2019 Startup / Operation Starting and Operating the L-417.xx9025E0B Requirements You have read and understood the general safety instructions (p. ✓ For startup with a load or in a multi-axis system: You have installed the L-417.xx9025E0B ✓... - Page 21 1. Start the electronics (see the user manual for the electronics). 2. Configure the electronics for the L-417.xx9025E0B during startup: ■ If you are using a digital controller from PI: In the PC software, select the entry in the positioner database that matches the L-417.xx9025E0B exactly.
-
Page 22: Maintenance
8 MAINTENANCE L417M0011EN ‒ 3/14/2019 Maintenance NOTICE Damage due to improper maintenance! Improper maintenance can lead to misalignment and failure of the L-417.xx9025E0B. ► Loosen screws only according to the instructions in this manual or the instructions of our customer service department (p. 26). -
Page 23: Moving The Motion Platform By Hand
8 MAINTENANCE L417M0011EN ‒ 3/14/2019 NOTICE Damage due to unsuitable cleaning agents! Some cleaning agents can cause rusting on the L-417.xx9025E0B or dissolve plastics, paints or adhesives. ► Do not clean with water or acetone. Cleaning the L-417.xx9025E0B 1. Dampen the cloth with the cleaning agent or disinfectant. 2. -
Page 24: Troubleshooting
9 TROUBLESHOOTING L417M0011EN ‒ 3/14/2019 Troubleshooting The positioner does not move, no operating noise can be heard There is a motion error. ► Reset the motion error. Defective electronics ► Check the electronics. Check all connecting cables (p. 18). Electronics not connected correctly ►... -
Page 25: Transportation
10 TRANSPORTATION L417M0011EN ‒ 3/14/2019 Transportation Preparing the L-417.xx9025E0B for Transportation 1. Pay attention to the ambient conditions and classifications (p. 30). 2. Pack the L-417.xx9025E0B in the original packaging. 3. If the L-417.xx9025E0B is to be sent, use a stable outer box. M O T I O N | P O S I T I O N I N G... -
Page 26: Customer Service Department
L417M0011EN ‒ 3/14/2019 Customer Service Department For enquiries and orders, contact your PI miCos representative or send us an email. If you have any questions concerning your system, provide the following information: ■ Product and serial numbers of all products in the system ■... -
Page 27: Technical Data
12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 Technical Data 12.1 Specifications Motion L-417.05 L-417.09 L-417.13 L-417.17 Unit Toler- ance Active axes Travel range Pitch / yaw ±14 ±19 ±29 ±35 μrad max. Straightness / flat- ±2.5 ±4 ±6 ±8 μm max. ness Velocity, unloaded mm/s max. - Page 28 12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 Encoder options L-417.xxx025Ex Unit Toler- ance Integrated sensor Absolute-measuring linear encoder For additional rotary encoder, see basic op- tion Sensor signal EnDat 2.2 Design resolution 0.001 μm Minimum incremental mo- typ. tion Bidirectional repeatability ±0.5 μm max.
- Page 29 12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 Drive properties L-417.xx9 Unit Toler- ance Drive type Synchronous Servo Motor Intermediate circuit voltage, V DC max. Peak torque 2.76 N·m typ. Nominal torque N·m typ. Peak current, RMS 10.9 typ. Nominal current, RMS 2.73 typ.
-
Page 30: Maximum Ratings
12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 Miscellaneous L-417 Unit Toler- ance Operating temperature range 5 to 40 °C Material Aluminum, black anodized stainless steel Overall mass L-417.05 (102 mm travel range): 9.3 ±5 % L-412.09 (204 mm travel range): 10.8 L-412.13 (305 mm travel range): 12.2 L-412.17 (407 mm travel range): 13.7 L-412.21 (508 mm travel range): 15.1... -
Page 31: Dimensions
12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 Area of application For indoor use only Maximum altitude 2000 m above msl Relative humidity Max. 80 % for temperatures to 31 °C, linearly decreasing to 50 % at 40 °C Storage temperature -25 °C to 55 °C Transport temperature -25 °C to 70 °C Overvoltage category... - Page 32 12 TECHNICAL DATA L417M0011EN ‒ 3/14/2019 4 x M6 4 x M6 4 x M6 4 H7x7 4 H7x7 4 H7x7 Figure 9: Motion platform of the L-417.xx9025E0B: Dimensions and mounting holes Dimensions in mm. Note that the decimal places are separated by a comma in the drawings. M O T I O N | P O S I T I O N I N G...
-
Page 33: Old Equipment Disposal
In order to fulfil the responsibility as the product manufacturer, PI miCos undertakes environmentally correct disposal of all PI miCos equipment free of charge, if it was made available to the market after August 13, 2005. Any old PI miCos equipment can be sent free of charge to the following address:... -
Page 34: Appendix
14 APPENDIX L417M0011EN ‒ 3/14/2019 Appendix 14.1 Pin Assignment 14.1.1 Drive Connector Figure 10: M23 8 (f) Signal Function Phase 1 Protective earth Phase 3 Phase 2 BR + Holding brake, +24 V DC BR - Holding brake, GND Not connected Not connected 14.1.2 Motor encoder 16 17... - Page 35 14 APPENDIX L417M0011EN ‒ 3/14/2019 Signal Function Output: Sensor signal B B inv Output: Sensor signal B inverted Output: Sensor signal A A inv Output: Sensor signal A inverted Output: Sensor signal Z Z inv Output: Sensor signal Z inverted Ground THERM+ Output: Temperature sensor...
-
Page 36: 14.1.3 Encoder Connector
14 APPENDIX L417M0011EN ‒ 3/14/2019 14.1.3 Encoder connector Figure 11: M23 15 (f) Function Output: DATA (+) Output: DATA (-) Output: CLOCK (+) Output: CLOCK (-) Not connected Not connected Not connected Not connected Not connected Input: Power supply Ground Not connected Not connected Not connected... -
Page 37: Commutation Encoder
14 APPENDIX L417M0011EN ‒ 3/14/2019 14.3 Commutation Encoder The L-417.xx9025E0B's motor has a commutation encoder that codes the position of the magnets in the same way as a Hall effect sensor. π 2π 3π 4π Figure 12: Motorphasen (oben) und Signalausgabe an die Kommutierungsspuren (unten) 14.4 Holding Brake Specifications Parameters... -
Page 38: Eu Declaration Of Conformity
15 EU DECLARATION OF CONFORMITY L417M0011EN ‒ 3/14/2019 EU Declaration of Conformity An EU Declaration of Conformity was issued for the L-417.xx9025E0B in accordance with the following European directives: ■ Low Voltage Directive ■ EMC Directive ■ RoHS Directive The standards applied for certifying conformity are listed below. ■... - Page 39 Each limit switch sends its signal to the controller on a dedicated line. The controller then interrupts the motion avoiding that the positioner moves until the hard stop and gets damaged. PI positioners have mechanical, noncontact optical or Hall-effect limit switches. Load Capacity Maximum load in the vertical direction when the L-417.xx9025E0B is mounted horizontally.
- Page 40 L417M0011EN ‒ 3/14/2019 Sensor resolution The sensor can be the critical element of position resolution so it may be necessary to specify the sensor resolution separately. Rotary encoder: Impulses per screw rotation. Linear encoder: Smallest motion still detected by the sensor system. Travel range The maximum possible travel range is limited by the length of the drive screw.
