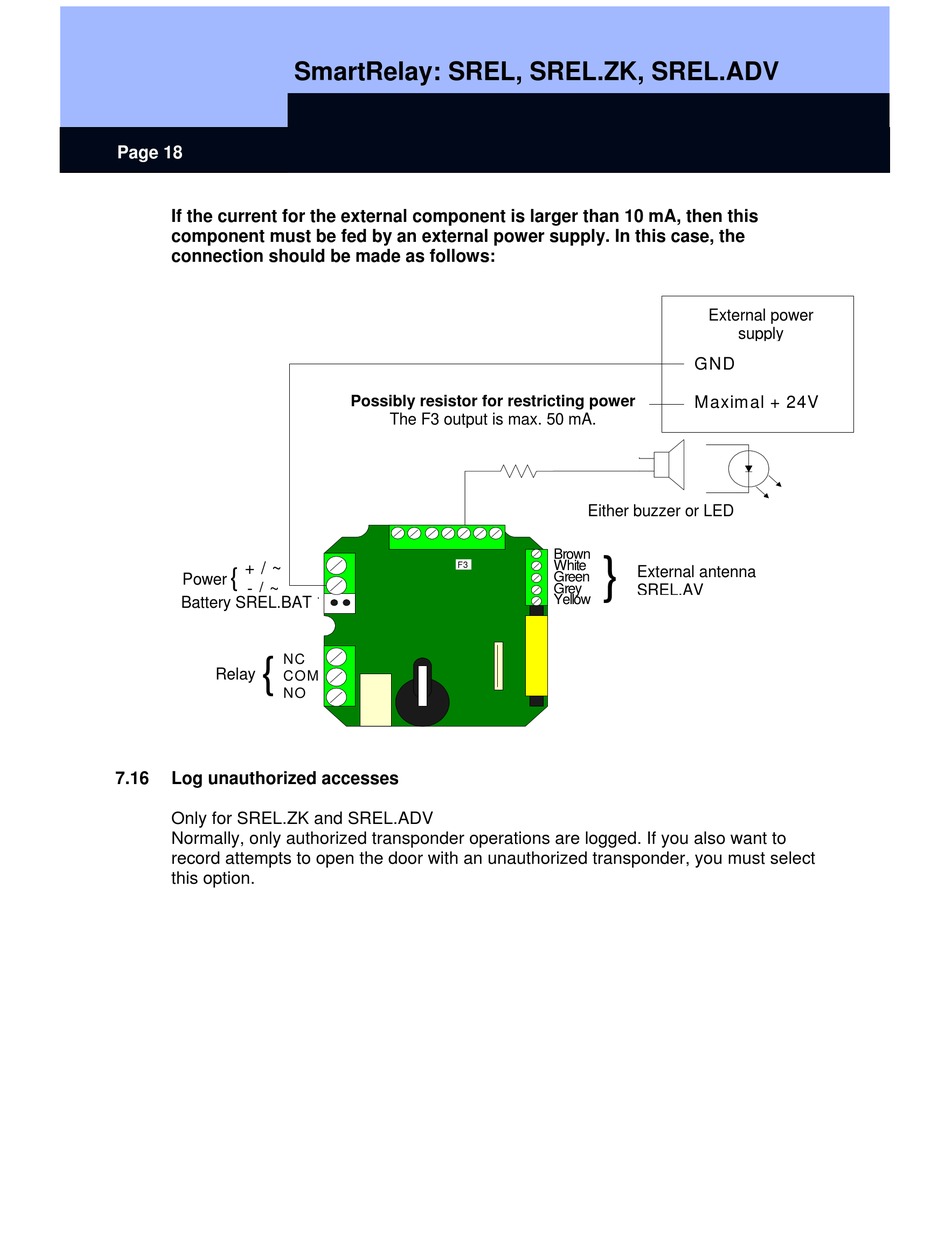

Page 18
If the current for the external component is larger than 10 mA, then this
component must be fed by an external power supply. In this case, the
connection should be made as follows:
+ / ~
{
Netzteil Power
- / ~
Battery SREL.BAT
Batterie SREL.BAT
NC
{
Relais Relay
COM
NO
7.16

Log unauthorized accesses

Only for SREL.ZK and SREL.ADV
Normally, only authorized transponder operations are logged. If you also want to
record attempts to open the door with an unauthorized transponder, you must select
this option.
SmartRelay: SREL, SREL.ZK, SREL.ADV
Evtl. W iderstand zur
Possibly resistor for restricting power
Leistungsbegrenzung.
The F3 output is max. 50 mA.
Der Ausgang F3 verträgt
F3
max. 50 mA
Entweder Buzzer oder LED
Either buzzer or LED
Brown
}
White
Externe Antenne
External antenna
Green
SREL.AV
Grey
SREL.AV
Yellow
Ext. Netzteil
External power
supply
GND
Maximal + 24V
