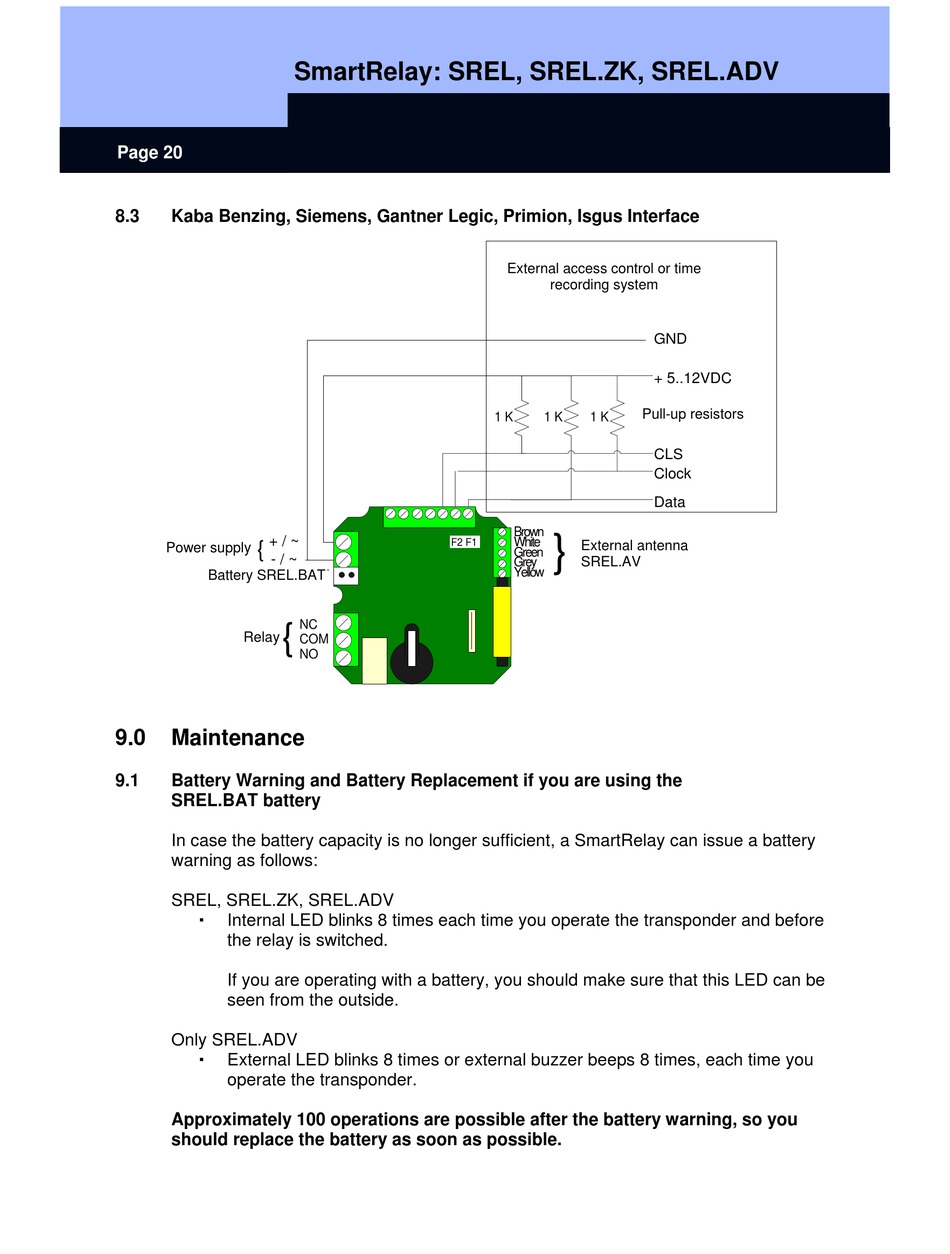

Page 20
8.3

Kaba Benzing, Siemens, Gantner Legic, Primion, Isgus Interface

+ / ~
{
Power supply
Netzteil
- / ~
Battery SREL.BAT
Batterie SREL.BAT
{
Relay
Relais
9.0

Maintenance

9.1

Battery Warning and Battery Replacement if you are using the

SREL.BAT battery

In case the battery capacity is no longer sufficient, a SmartRelay can issue a battery
warning as follows:
SREL, SREL.ZK, SREL.ADV
Internal LED blinks 8 times each time you operate the transponder and before
the relay is switched.
If you are operating with a battery, you should make sure that this LED can be
seen from the outside.
Only SREL.ADV
External LED blinks 8 times or external buzzer beeps 8 times, each time you
operate the transponder.
Approximately 100 operations are possible after the battery warning, so you
should replace the battery as soon as possible.
SmartRelay: SREL, SREL.ZK, SREL.ADV
F2 F1
NC
COM
NO
Externes Zutrittskontroll- oder External access control or time
recording system
Zeiterfassungssystem
GND
+ 5..12VDC
Pull-up resistors
1 K 1 K 1 K Pull Up Widerstände
CLS
Clock
Data
Brown
}
White
Externe Antenne
External antenna
Green
SREL.AV SREL.AV
Grey
Yellow
