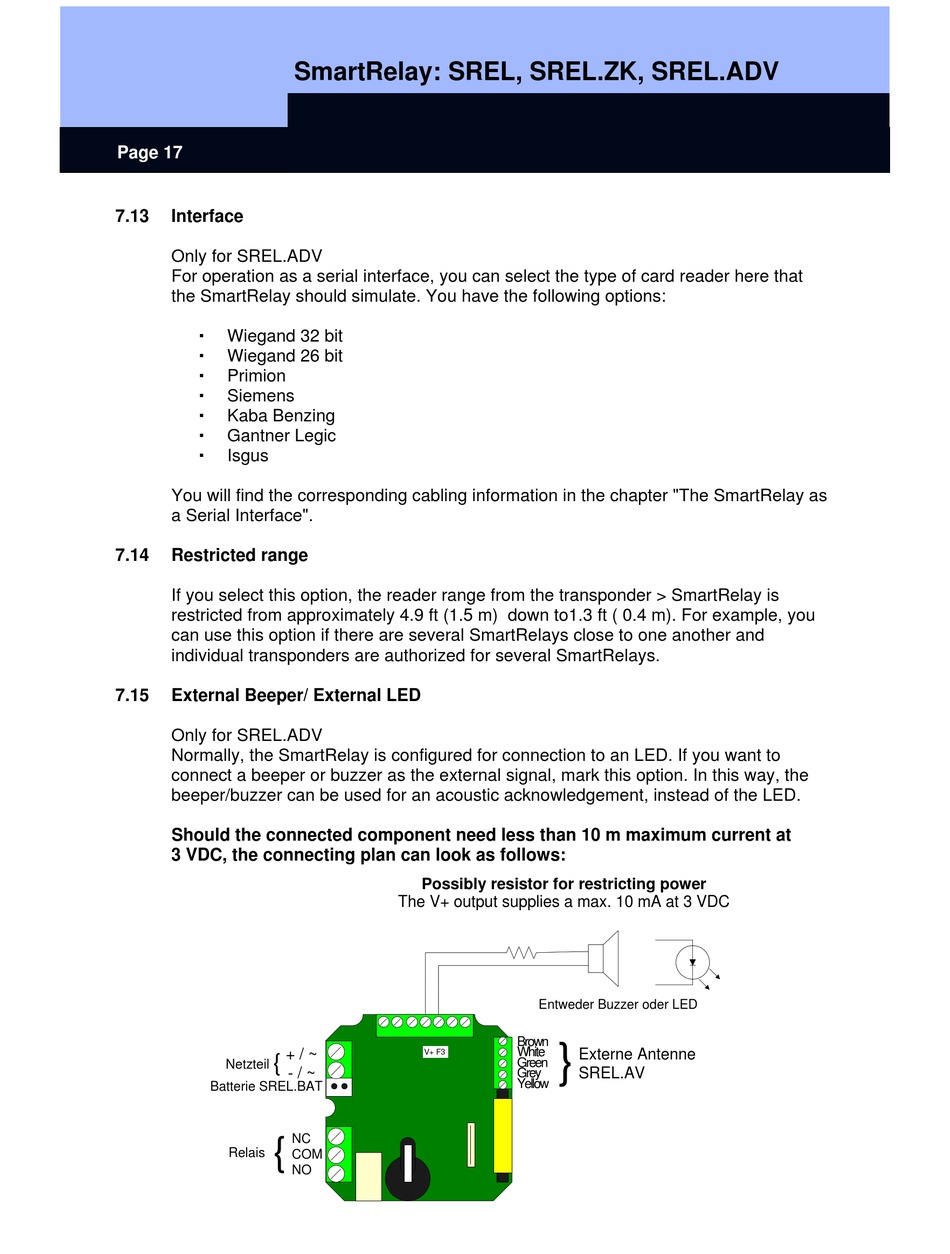

Page 17
7.13

Interface

Only for SREL.ADV
For operation as a serial interface, you can select the type of card reader here that
the SmartRelay should simulate. You have the following options:
Wiegand 32 bit
Wiegand 26 bit
Primion
Siemens
Kaba Benzing
Gantner Legic
Isgus
You will find the corresponding cabling information in the chapter "The SmartRelay as
a Serial Interface".
7.14

Restricted range

If you select this option, the reader range from the transponder > SmartRelay is
restricted from approximately 4.9 ft (1.5 m) down to1.3 ft ( 0.4 m). For example, you
can use this option if there are several SmartRelays close to one another and
individual transponders are authorized for several SmartRelays.
7.15

External Beeper/ External LED

Only for SREL.ADV
Normally, the SmartRelay is configured for connection to an LED. If you want to
connect a beeper or buzzer as the external signal, mark this option. In this way, the
beeper/buzzer can be used for an acoustic acknowledgement, instead of the LED.
Should the connected component need less than 10 m maximum current at
3 VDC, the connecting plan can look as follows:
+ / ~
{
Netzteil
- / ~
Batterie SREL.BAT
NC
{
Relais
COM
NO
SmartRelay: SREL, SREL.ZK, SREL.ADV
Evtl. Widerstand zur
Possibly resistor for restricting power
Leistungsbegrenzung.
The V+ output supplies a max. 10 mA at 3 VDC
Der Ausgang V+ liefert
max. 10 mA bei 3VDC
V+ F3
Entweder Buzzer oder LED
Brown
}
White
Externe Antenne
Green
SREL.AV
Grey
Yellow
