Page 15

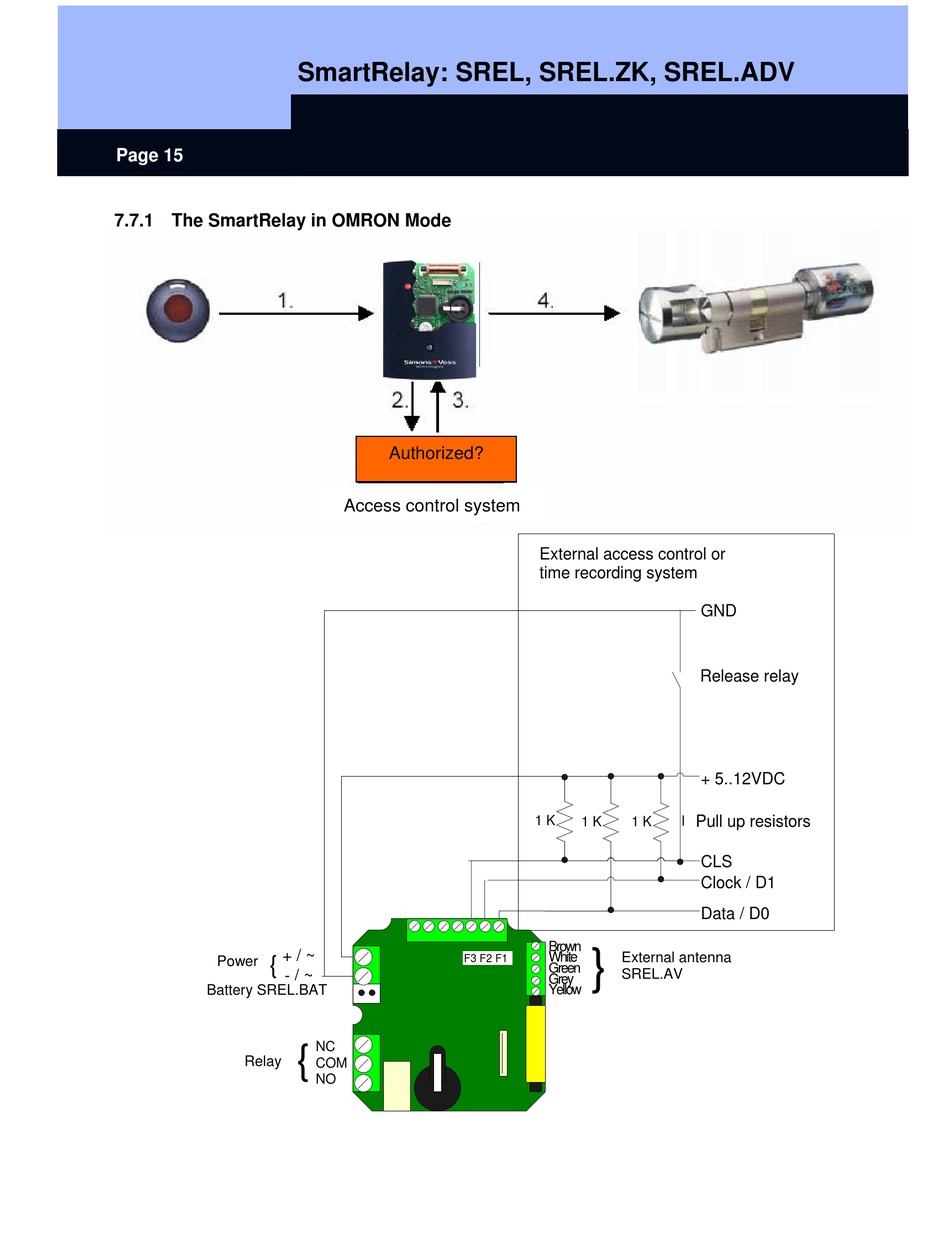

7.7.1 The SmartRelay in OMRON Mode

+ / ~
Power {
Netzteil
- / ~
Battery SREL.BAT
Batterie SREL.BAT
{
Relay Relais
SmartRelay: SREL, SREL.ZK, SREL.ADV
Authorized?
Access control system
F3 F2 F1
NC
COM
NO
Externes Zutrittskontroll- oder
External access control or
Zeiterfassungssystem
time recording system
GND
Release relay
Freischalt Relais
+ 5..12VDC
Pull up resistors
1 K Pull Up Widerstände
1 K 1 K
CLS
Clock / D1
Data / D0
Brown
}
External antenna
White
Externe Antenne
Green
SREL.AV
SREL.AV
Grey
Yellow
