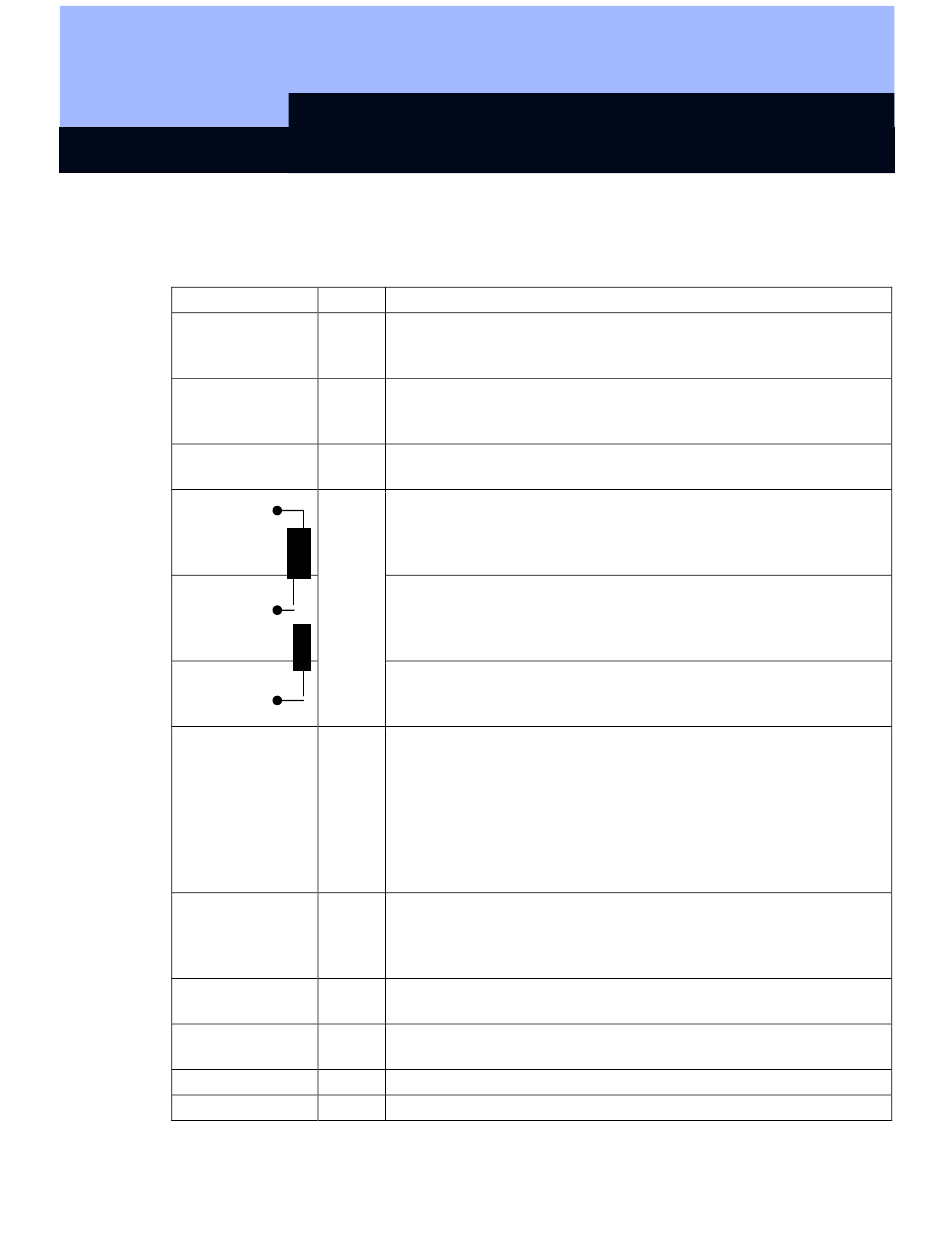

Description of the SREL, SREL.ZK and SREL.ADV Connection
Name
Power supply
Power supply
Battery
NC relay
COM relay
NO relay
External antenna
Brown
White
Green
Grey
Yellow
RS-485COM
RS-485A
RS-485B
+ Vaux
LED/ Buzzer/
Input 1/ CLS
Serial 1/ input 2
Serial 2
SmartRelay: SREL, SREL.ZK, SREL.ADV
Symbol
Description
+ / ~
If connecting a direct current (5 to 24 VDC) source, use the
positive pole, otherwise use one of the two alternating current
connections (12 VAC)
- / ~
If connecting a direct current (5 to 24 VDC) source, use the
negative pole, otherwise use the second alternating current
connection (12 VAC)
Plug connection for a battery (when operating without a power
supply) Battery ordering code, incl. connector: SREL.BAT
Normally closed contact for the change-over relay. When not
acted on, this contact is closed to the COM relay
Common contact on the change-over relay. This contact is
either wired to the NC relay (normally closed contact) or to the
NO relay (normally open contact)
Normally open contact on the change-over relay. When acted
on, this contact is closed to the COM relay
Connection for the colored cables of an extended antenna
BN
(ordering code SREL.AV)
WH
GN
GY
YL
C
Bus connection for external modules
A
B
+V
Typically 3.0 - 5.0V +/- 0.5V for external LED's or buzzer,
max. 10mA
F3
Multifunction connection
F2
Multifunction connection
F1
Multifunction connection
